Home >> Jaguar >> 2007 >> XK (X150) V8-4.2L >> Repair and Diagnosis >> Diagrams >> Connectors >> PI002 - PI059 >> PI041

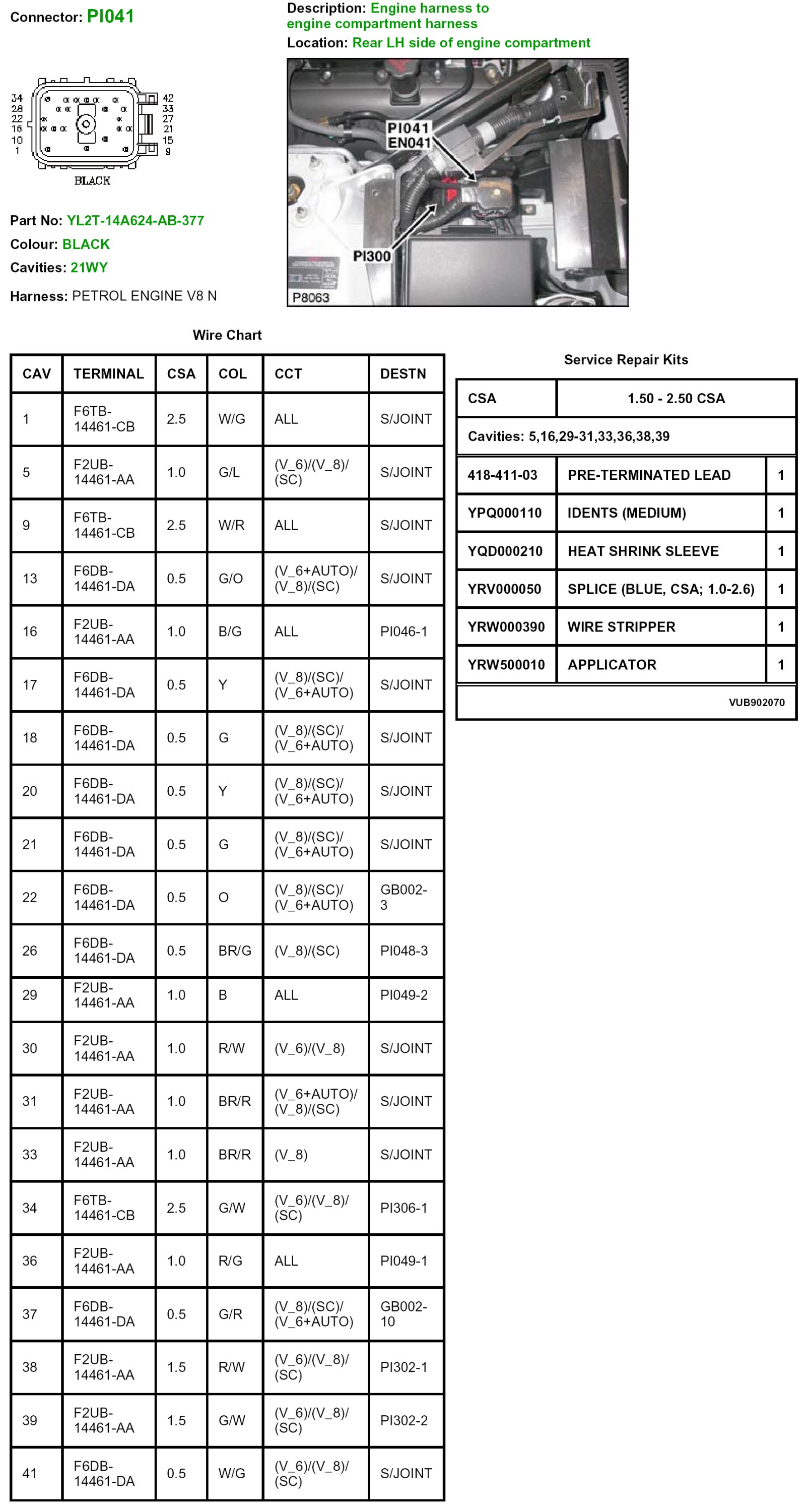

PI041

PI041:
