Home >> Jaguar >> 2007 >> XK (X150) V8-4.2L >> Repair and Diagnosis >> Diagrams >> Connectors >> PT001 - PT008 >> PT003

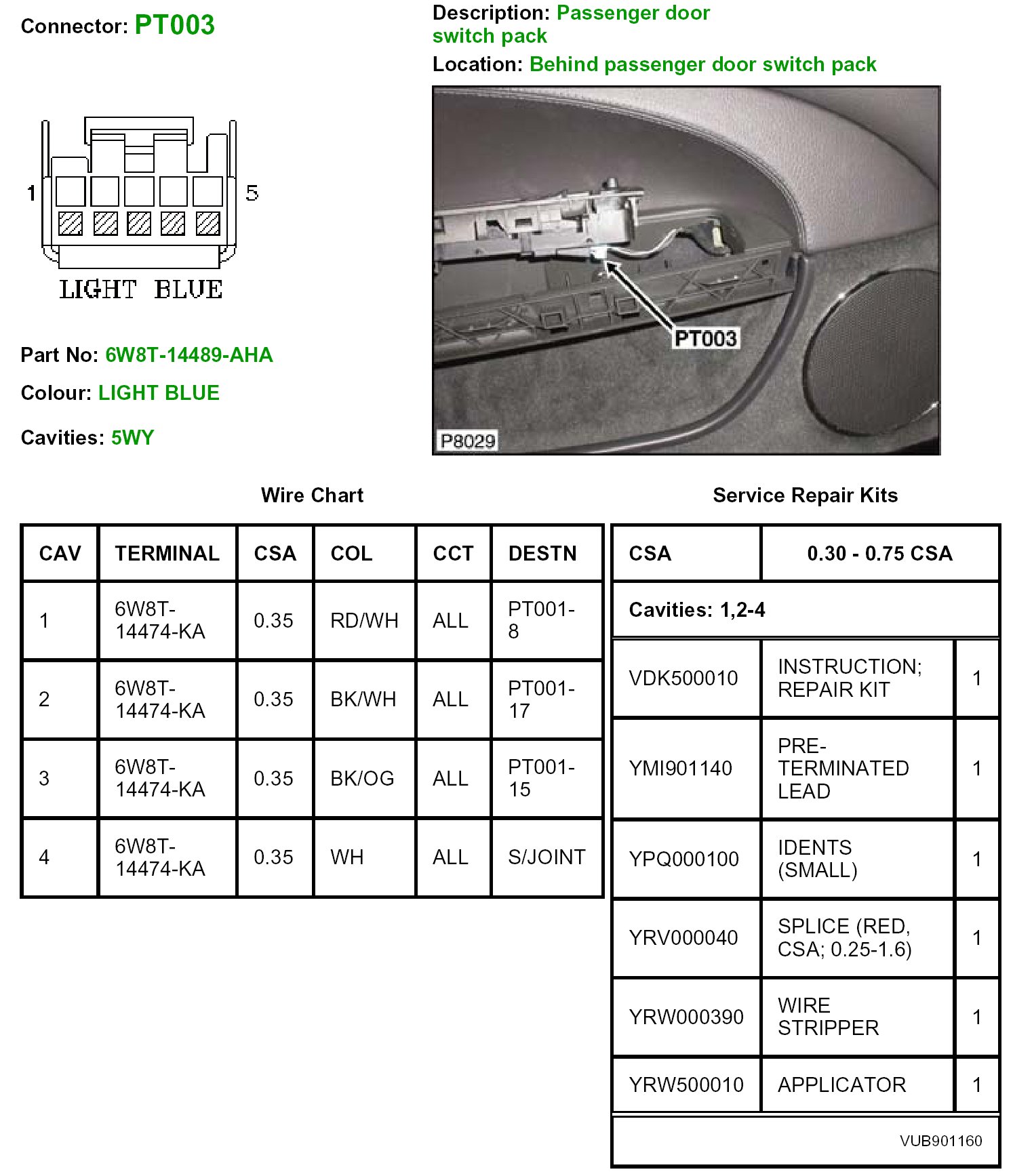

PT003

PT003:
