Home >> Jaguar >> 2007 >> XK (X150) V8-4.2L >> Repair and Diagnosis >> Diagrams >> Connectors >> SA001 - SA004 >> SA001

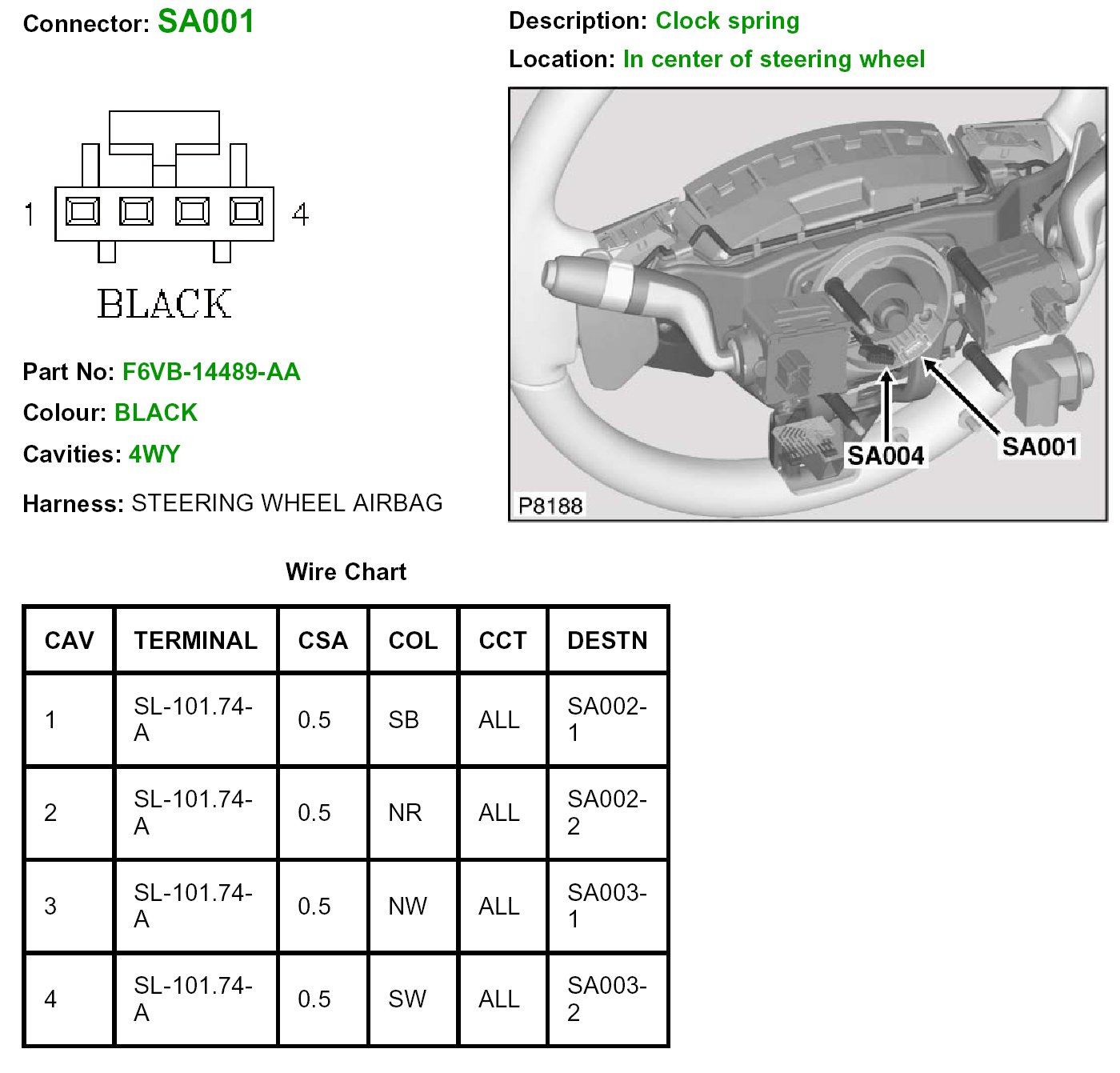

SA001

SA001:
