Home >> Jaguar >> 2007 >> XK (X150) V8-4.2L >> Repair and Diagnosis >> Diagrams >> Connectors >> SW002 - SW014 >> SW005

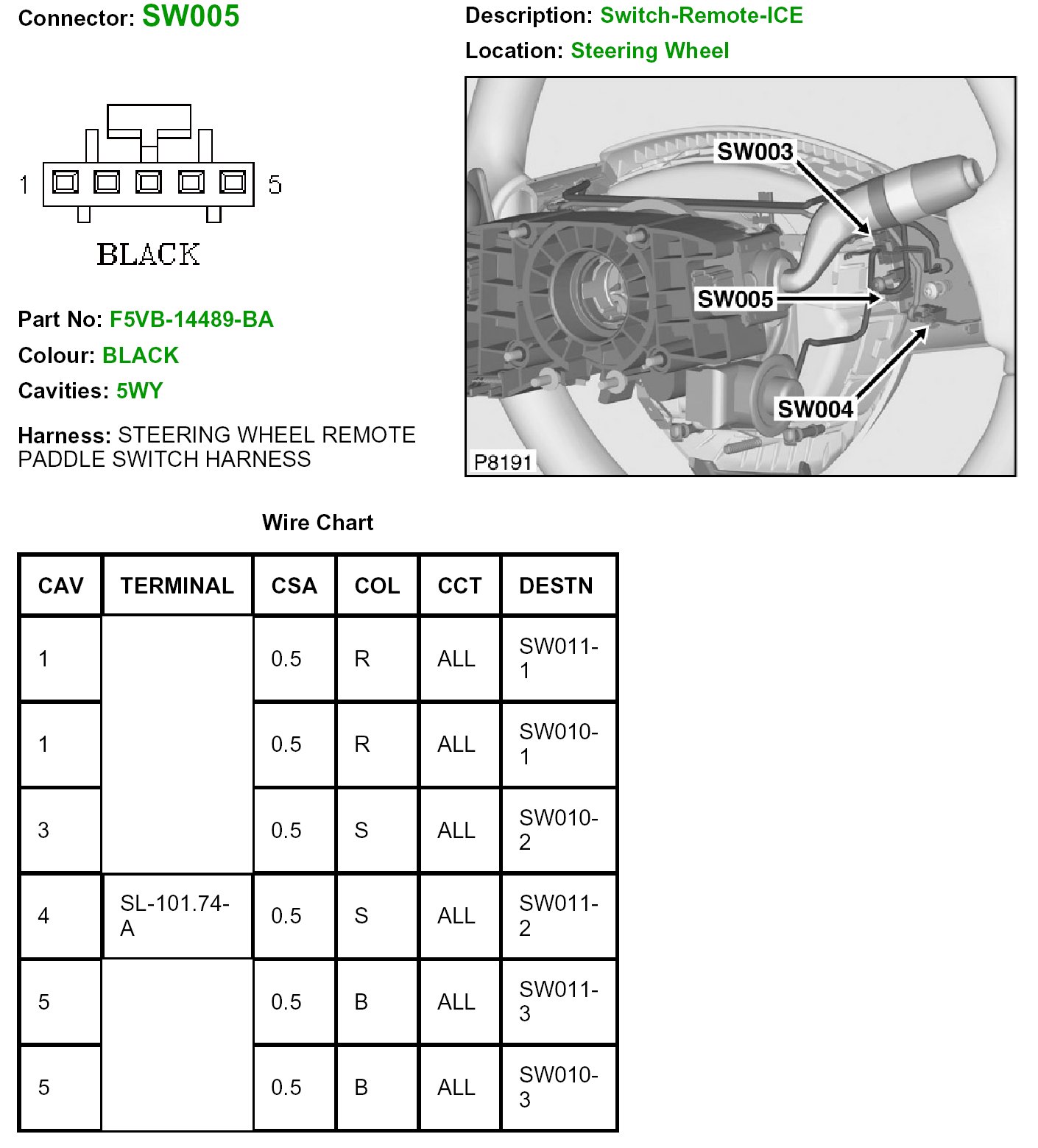

SW005

SW005:
