Solar Sensor: Service and Repair

Sunload Sensor (82.20.70)

Removal

CAUTION: Protect the surrounding trim from damage when changing the component.

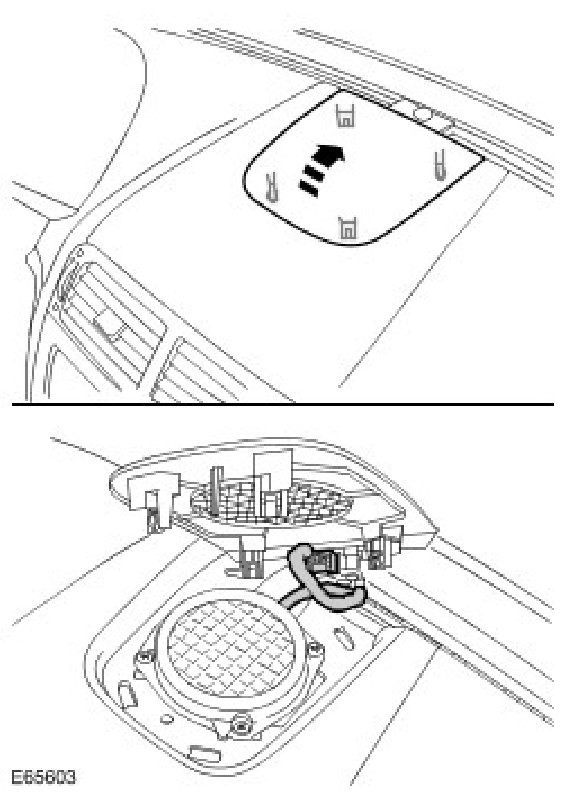

1. Remove the center speaker grille.
- Carefully release the 4 clips.
- Disconnect the electrical connector.

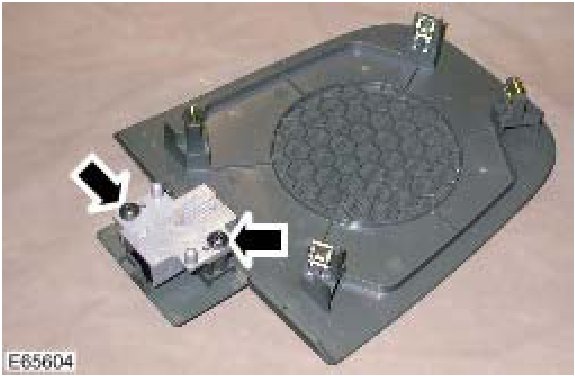

2. Remove the sunload sensor.
- Remove the 2 screws.







Installation
1. Install the sunload sensor.
- Install the screws.
2. Install the center speaker grille.
- Connect the electrical connector.
- Secure the clips.
