Instrument Cluster / Carrier: Service and Repair

Instrument Cluster (88.20.01)

Removal

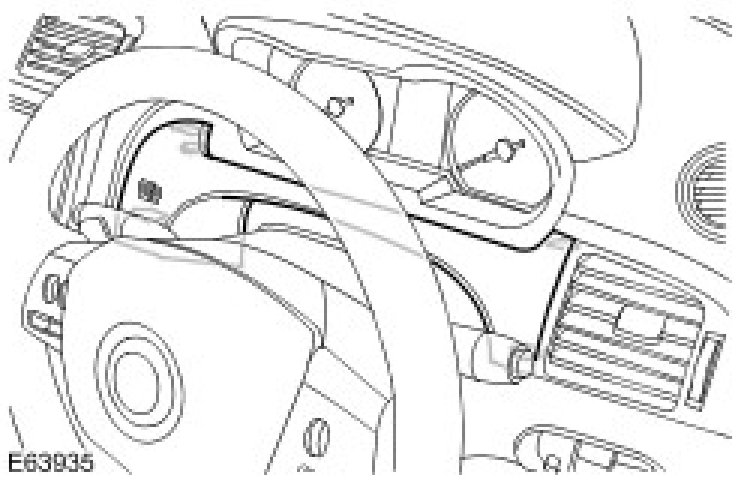

1. Remove the instrument panel driver's side reinforcement trim panel.
- Carefully release the 4 clips.







2. Remove the instrument cluster surround.
- Remove the 3 screws.

CAUTION: Protect the surrounding trim from damage when changing the component.







3. Remove the instrument cluster.
- Raise the steering column finisher for access to the lower screws.
- Remove the 4 screws.
- Disconnect the 2 electrical connectors.







Installation
1. Install the instrument cluster.
- Connect and secure the electrical connectors.
- Install the screws.
2. Install the instrument cluster surround.
- Install the screws.
3. Install the instrument panel driver's side reinforcement trim panel.
- Align the pegs and secure with the clips.
4. Connect WDS to the vehicle and configure a new module.
