Symptom Related Diagnostic Procedures

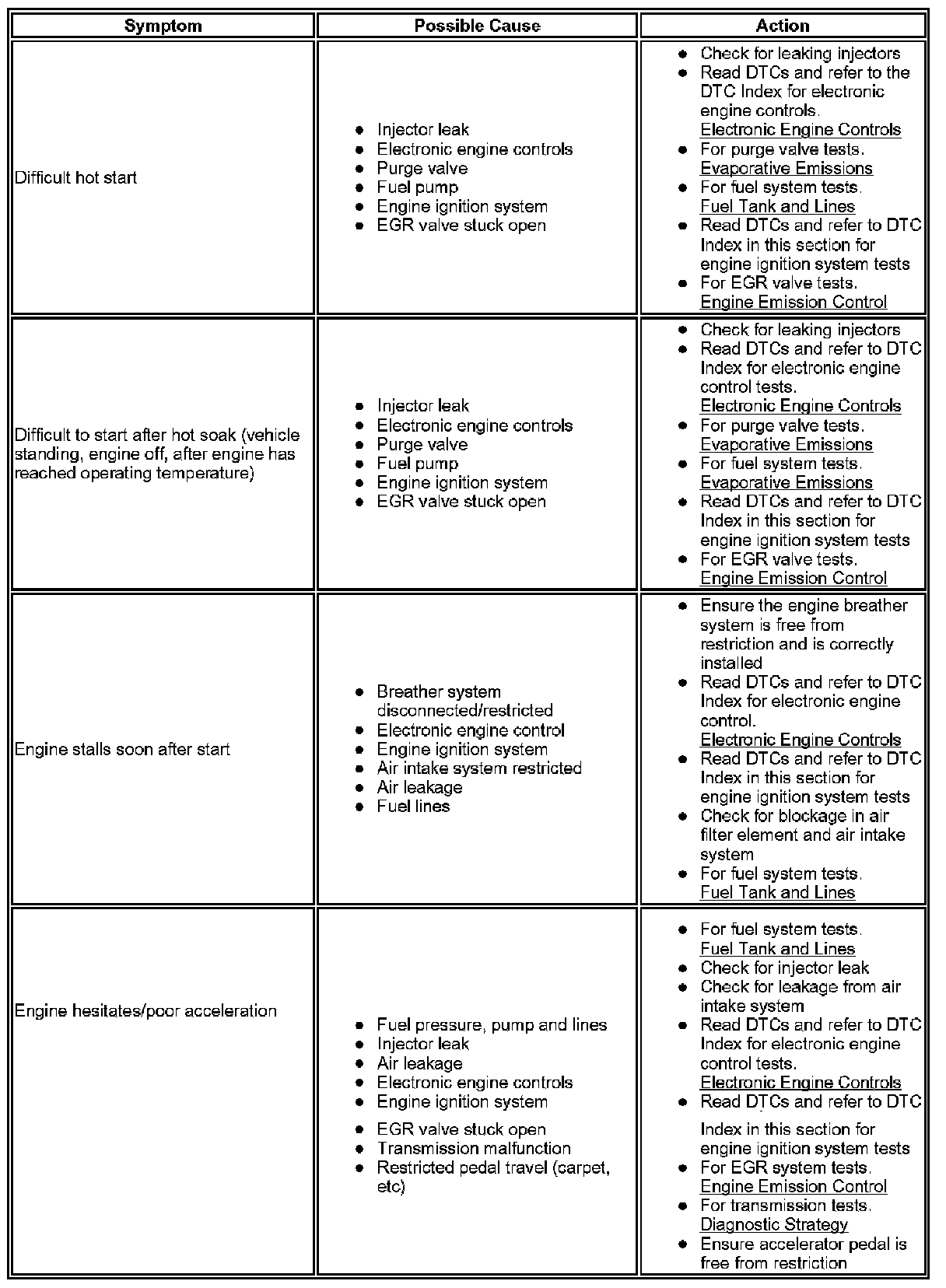

Symptom Chart (Part 1):

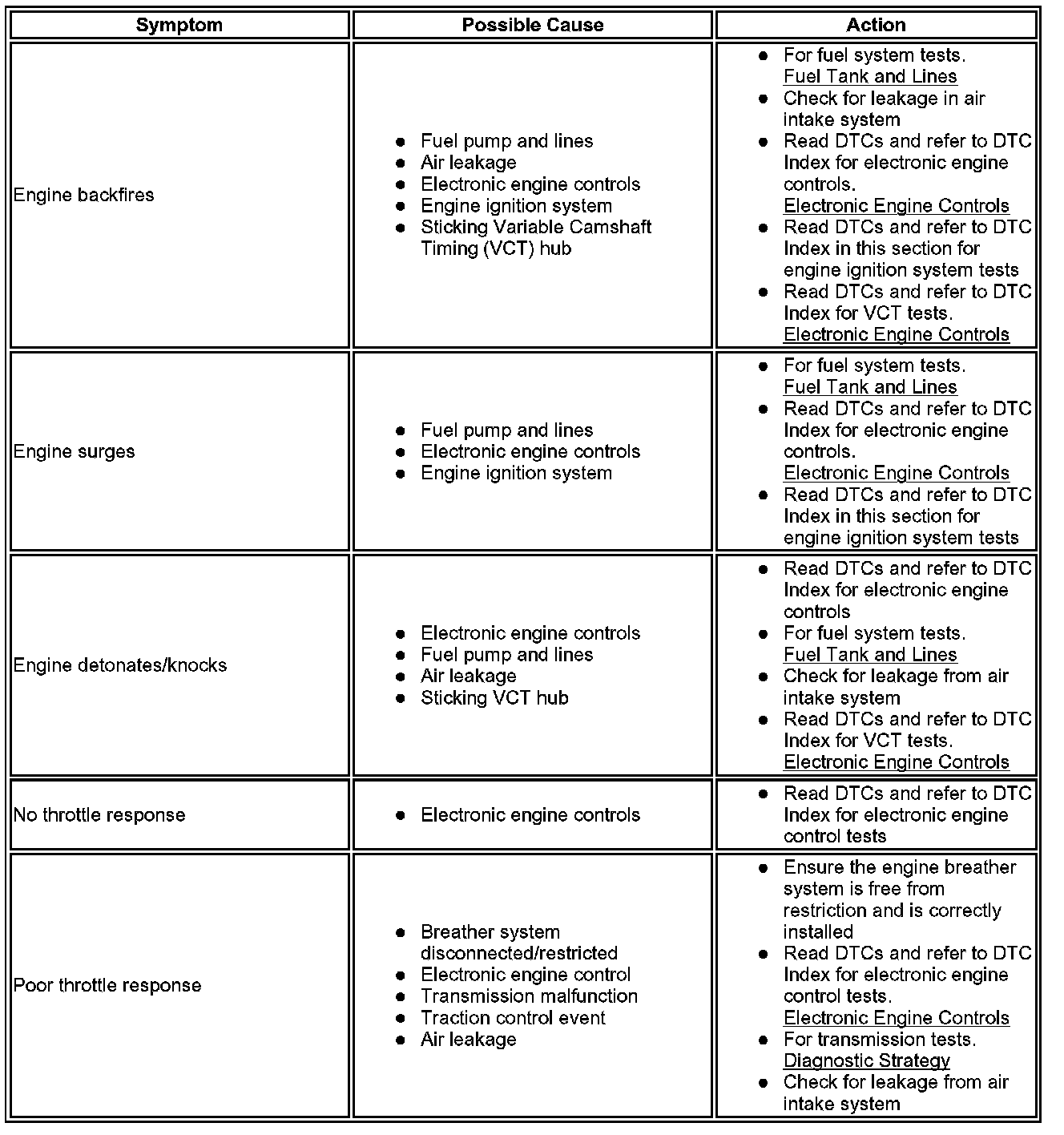

Symptom Chart (Part 2):



Symptom Chart (Part 3):
