NUMBER:
JTB00049

MODEL:
XK

DATE:
JULY 12, 2007

SECTION: 501-10

Passenger Seat Occupancy Warnings

AFFECTED VEHICLE RANGE:
Jaguar XK IN: B09097-B20051
Model Year: 2007

CONDITION SUMMARY:

REVISED OCS PAD RESOLVES LAMP ILLUMINATION SYMPTOMS

NOTE:
The fault condition is flagging the lamp only. The supplementary restraints system continues to function correctly in all other aspects.

Situation:

When the passenger seat is empty, and the safety belt is unbuckled, intermittently the passenger seat PAD and the safety belt reminder lamps are illuminated and the safety belt reminder chime can be heard on vehicles with Occupant Classification Sensor (OCS).

Action:

Should a customer express concern, install a new OCS service kit and re-calibrate the OCS. Follow the Repair Procedure outlined in this bulletin.





PARTS





WARRANTY:

NOTE:

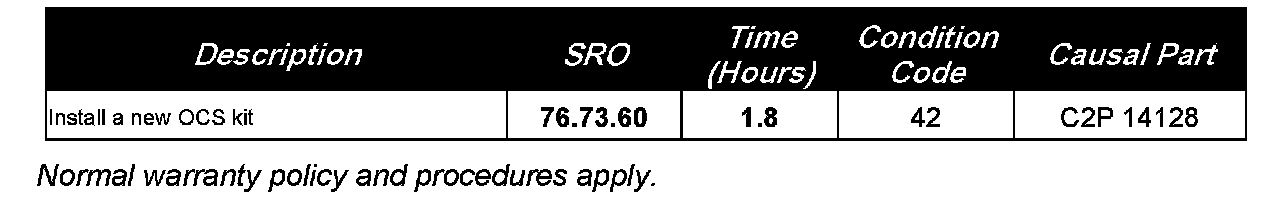

Repair procedures are under constant review, and therefore times are subject to change; those quoted here must be taken as guidance only. Always refer to DDW to obtain the latest repair time.

DDW requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.

REPAIR PROCEDURE

INSTALL OCCUPANT CLASSIFICATION SENSOR KIT

NOTE:
Global Technical Reference (GTR) lookup sequence is as follows:

GTR Home> NAS X150 - XK > Service Information> 2007 > Workshop Manuals> New XK Workshop Manual >Bookmark "Body and Paint/Body and Paint/501-20B Supplementary Restraint System LINK "Front Passenger Seat Occupant Classification Sensor (76.73.60)".

1. Refer to GTR Workshop Manual, Section: 501-20B (76.73.60) and install a new front passenger seat Occupant classification sensor kit.

CAUTION:
A Midtronics PSC-550 Vehicle Power Supply must be connected to the vehicle battery during diagnosis.

2. Connect the Midtronics PSC-550 power supply to the vehicle battery.

3. Connect IDS to the vehicle and begin a new diagnostic session, by entering the correct VIN for the current vehicle.

4. Perform the procedure for Seat Cover Replacement after installation of the OCS kit is finalized.

5. When the task is completed, exit the current session.

6. Disconnect IDS and the battery power supply.
