Suspension Control ( Automatic - Electronic ): Description and Operation
COMPONENT LOCATION
INTRODUCTION
An adaptive damping system, known as Computer Active Technology Suspension (CATS) is available on certain models. The CATS system is an electronically controlled suspension system which constantly adjusts the damping characteristics of the suspension dampers in reaction to the current driving conditions.
The system is controlled by an Adaptive Damping Control Module (ADCM) which is located behind the backrest of the RH rear passenger seat. The ADCM receives signals from two dedicated vertical acceleration sensors in addition to inputs from other electronic system components to determine vehicle body motion and driver inputs. These signals are used by the ADCM to control the damping characteristics of each damper from soft to firm to give the optimum vehicle ride.
DAMPERS
The CATS dampers are monotube, nitrogen gas and oil filled units, manufactured by Bilstein. The dampers have a twostage adjustment which allows the damping force to be electrically adjusted when the vehicle is being driven. The two stage dampers provide the optimum compromise between performance handling and ride comfort.
The CATS dampers can be easily identified by an electrical connector on the end of the piston rod, in the center of the top mount.

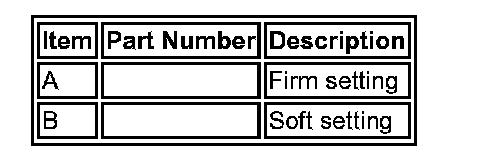

The two-stage adjustment is achieved by a solenoid controlled valve. When the solenoid valve is deenergized, the damper is on its firm setting and oil flow is restricted to flowing at a controlled rate through orifices in the damper piston. The restricted oil flow stiffens the damper action improving the handling when braking, accelerating and cornering.
The solenoid is connected to a by-pass valve which allows additional oil flow through the damper. When the solenoid is energized, the valve is lifted from its seat, allowing oil to flow through a hollow piston rod in the center of the damper piston and out through additional orifices. The increased oil flow softens the damper action providing a more comfortable ride quality.
The solenoid is operated by a 400 Hz Pulse Width Modulation (PWM) signal from the ADCM. When energized, the ADCM applies a 1.3 Ampere (A) push current for 75 milliseconds to move the valve and then applies a 0.5 A hold current to operate the damper in the 'soft' setting.
ACCELERATION SENSORS
Two acceleration sensors are used in the CATS system. The front sensor is located in the rear of the RH front wheel arch, behind the washer reservoir. The rear sensor is mounted in the luggage compartment, in the rear LH corner adjacent to the rear lamp assembly.
The sensors measure acceleration in the vertical plane and output a corresponding analogue signal to the ADCM.
Each sensor is connected to the ADCM via three wires which supply ground, 5 V supply and signal return. The sensor terminals are gold plated due to the low signal currents.
The acceleration sensors are of the capacitive type. The sensing element comprises two parallel plate capacitors. The capacitors alter the peak voltage which is generated by an internal oscillator when the sensor is subjected to acceleration. Detection circuits within the sensor measure the peak voltage and pass an analogue output signal to the ADCM. The sensors output a signal voltage of approximately 1 V/g ± 0.05 V/g.
CATS SYSTEM FAULT MESSAGE
The ADCM has a CAN connection to the instrument cluster. If a fault is detected by the ADCM, a message is sent to the instrument cluster and a message 'CATS SYSTEM FAULT' is displayed.
When this message is displayed a fault has been detected and an appropriate Diagnostic Trouble Code (DTC) will be logged in the ADCM. The faults can be interrogated using the Integrated Diagnostic System (IDS).
When a fault is detected, the ADCM stops outputs to the active dampers and the dampers operate continually on their default 'hard' setting until the fault is corrected.

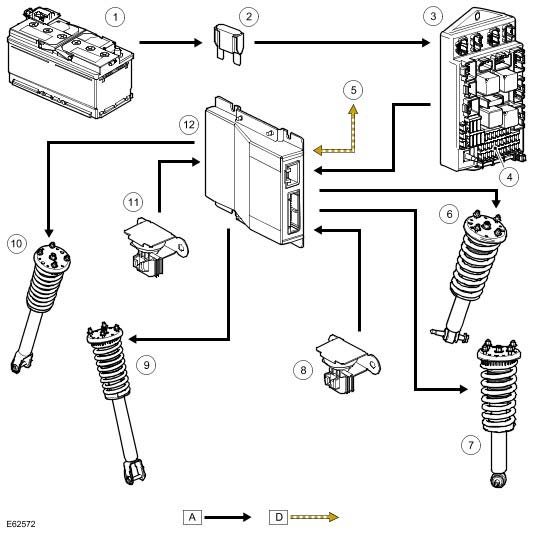

CONTROL DIAGRAM
NOTE: A = Hardwired; D = High speed CAN bus
