Rear Seat Bolster



Rear Seat Bolster (76.70.67)

Removal
1. Remove the rear seat cushion.

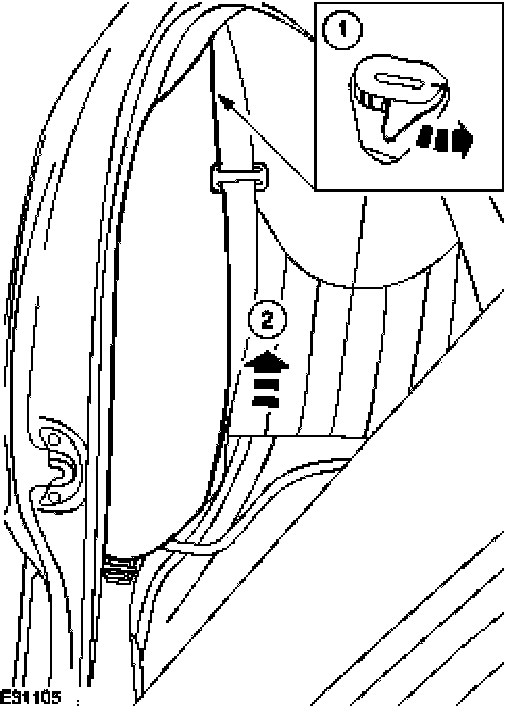

2. Remove the rear seat bolster.
- Release the rear seat bolster retaining tang.
- Remove the rear seat bolster.
- Detach the rear seat bolster from the retaining bracket.







Installation
1. To install, reverse the removal procedure.

NOTE: Make sure the safety belt webbing and safety belt buckles are not twisted when installed.
