S-Type (X200) V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Figure Number
>>
Fig 03.5 (Engine Management - Part 1)
Fig 03.5 (Engine Management - Part 1)
���&Diagram Figure 03.5:

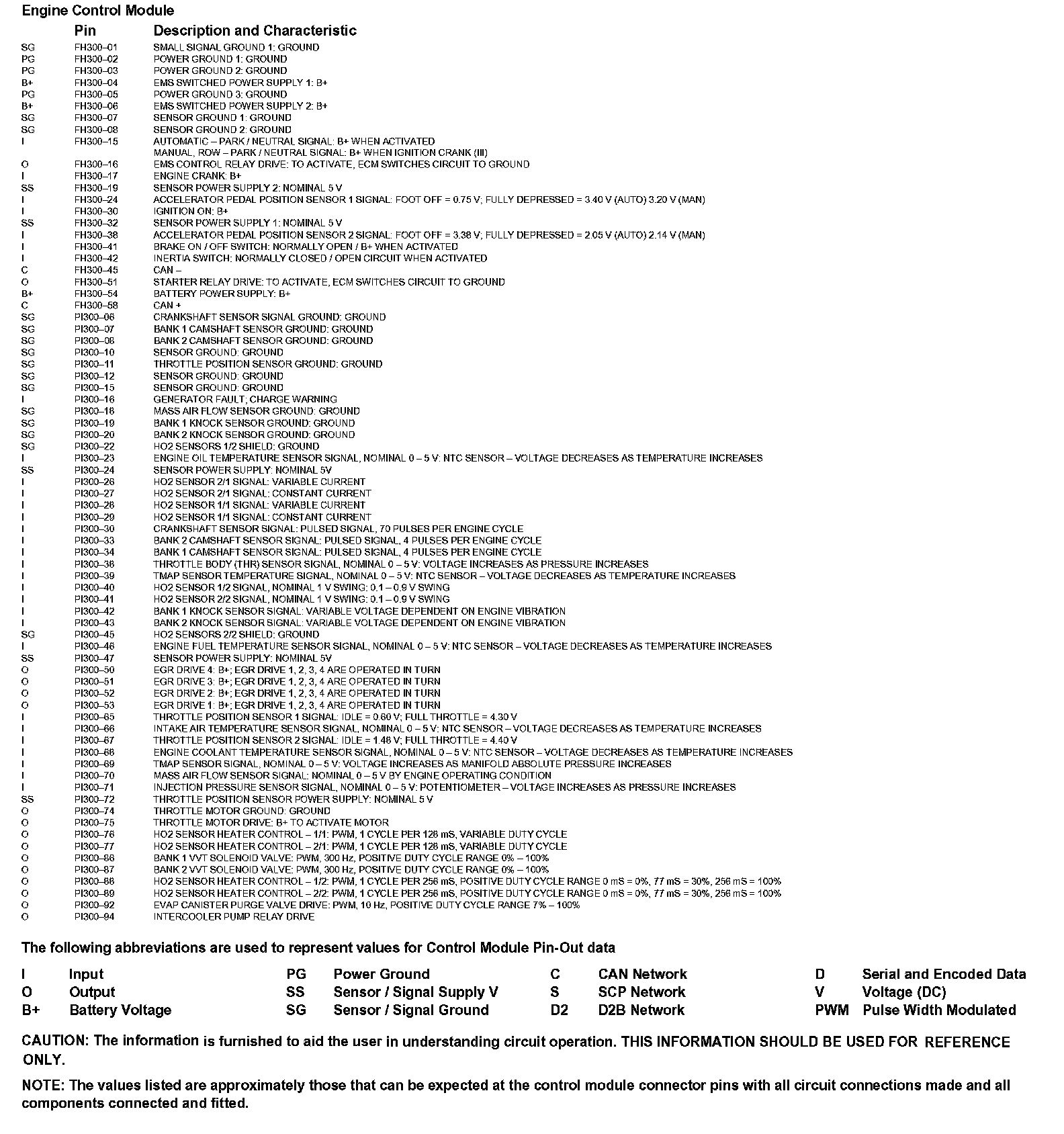

Diagram Data Sheet 03.5 (Part 1):
Diagram Data Sheet 03.5 (Part 2):
