Fig 03.6 (Engine Management - Part 2)
Fig 03.6 (Engine Management - Part 2)

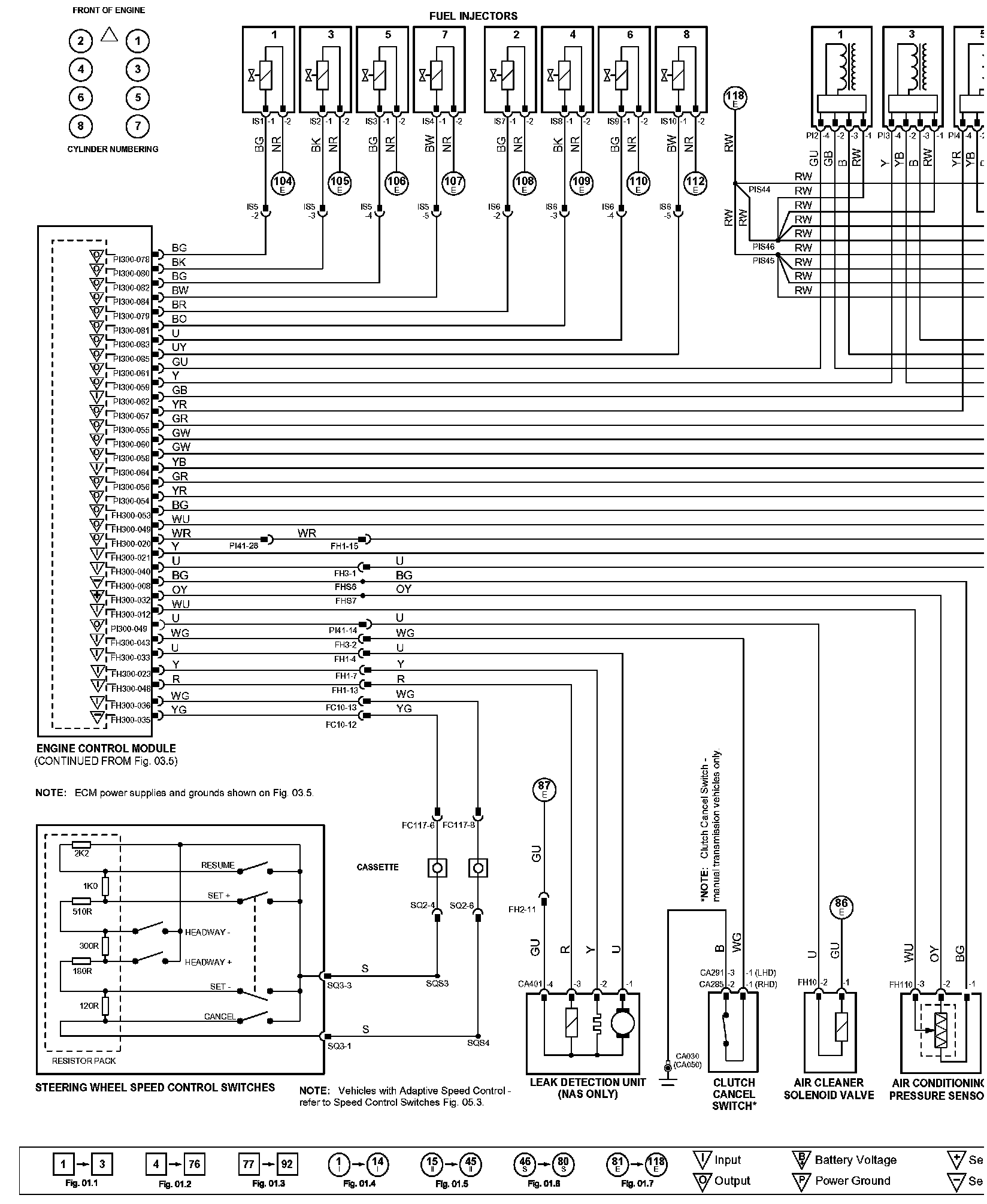

a��&Diagram Figure 03.6:

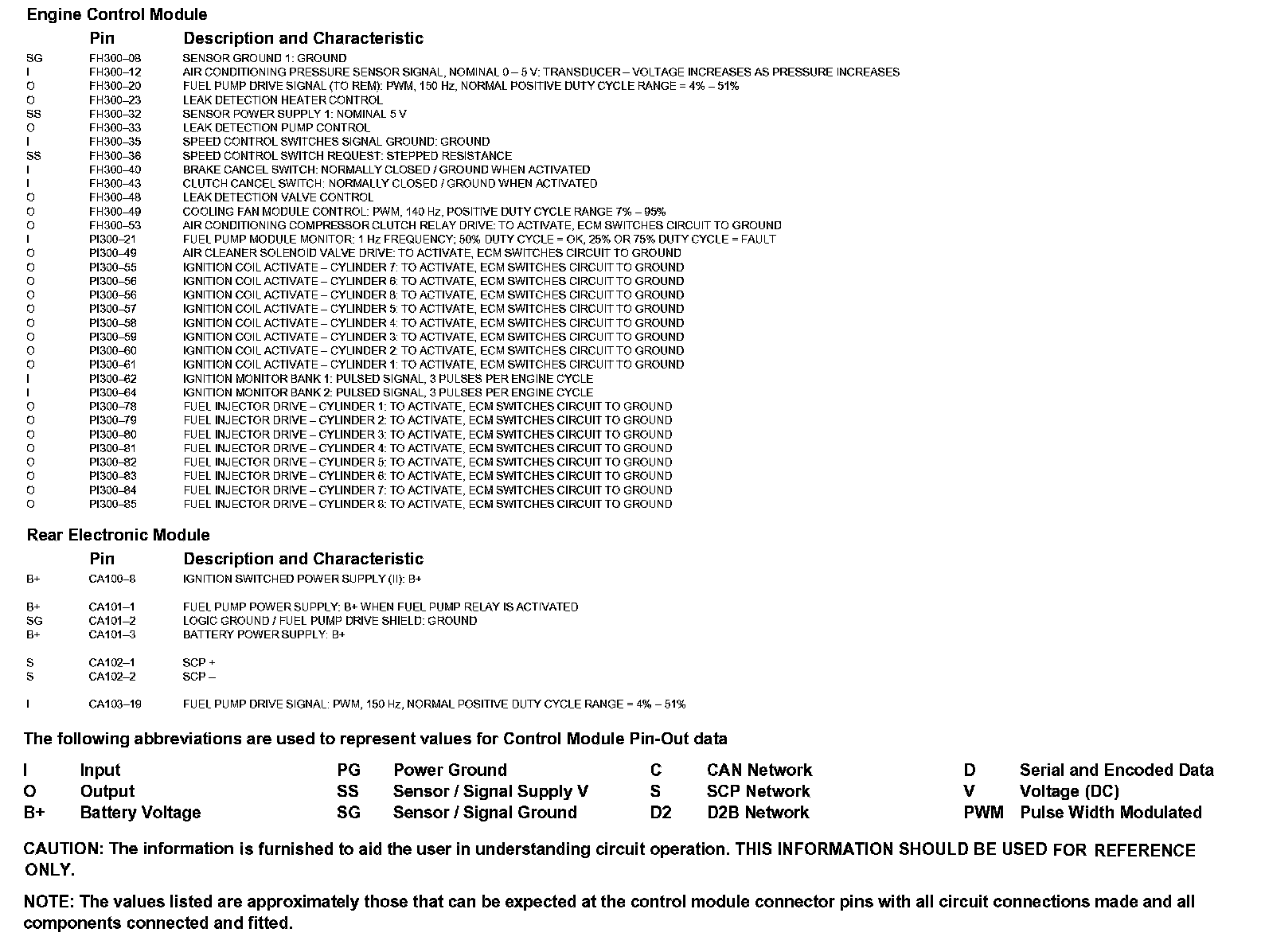

Diagram Data Sheet 03.6 (Part 1):
Diagram Data Sheet 03.6 (Part 2):
