S-Type (X200) V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Figure Number
>>

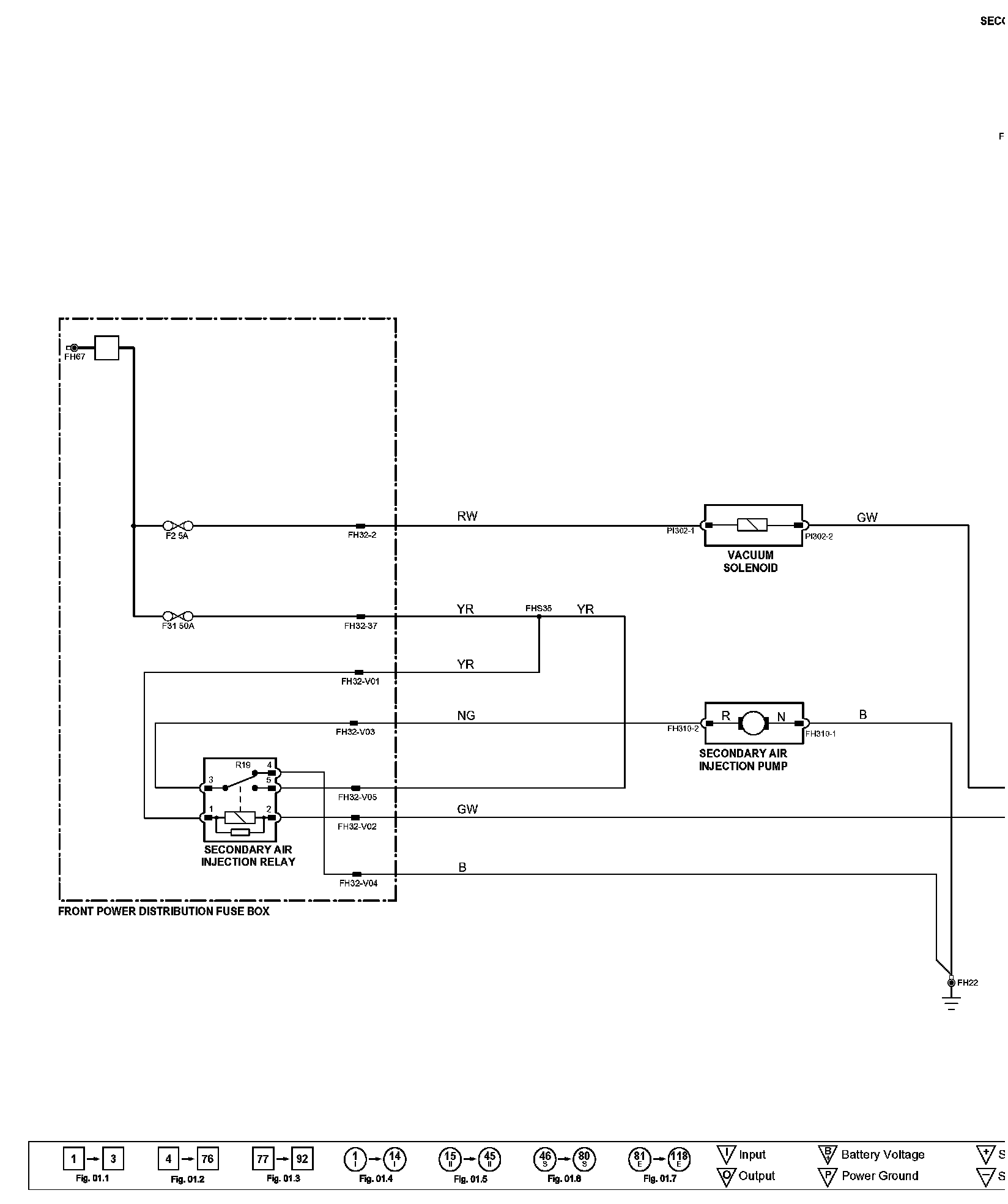

Fig 03.9 (Engine Management: Secondary Air Injection - NAS)
Fig 03.9 (Engine Management: Secondary Air Injection - NAS)
���&Diagram Figure 03.9:
Diagram Data Sheet 03.9 (Part 1):
Diagram Data Sheet 03.9 (Part 2):
