Fig 04.2 (Transmission (Manual))
Fig 04.2 (Transmission (Manual))

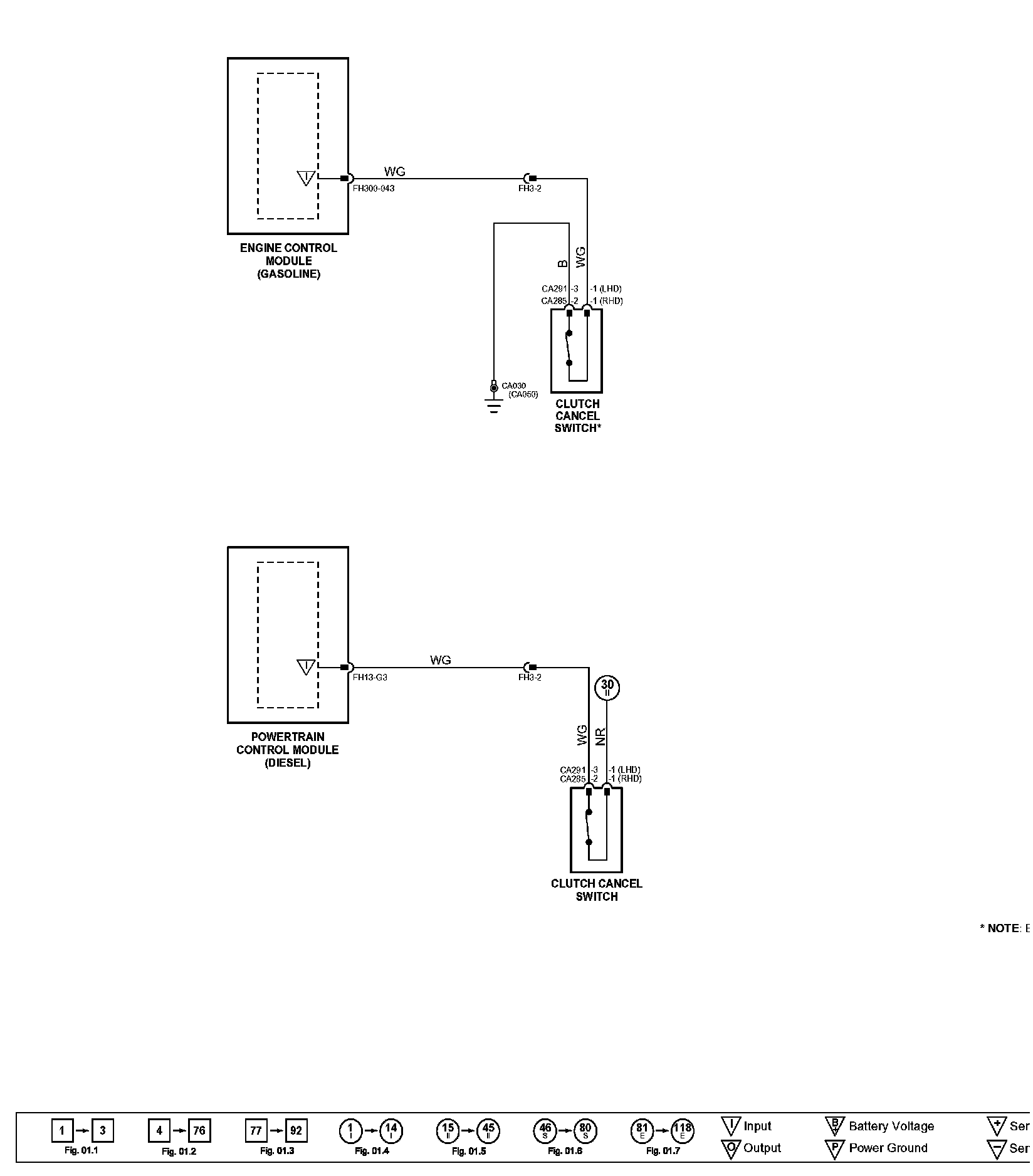

e%\)Diagram Figure 04.2:

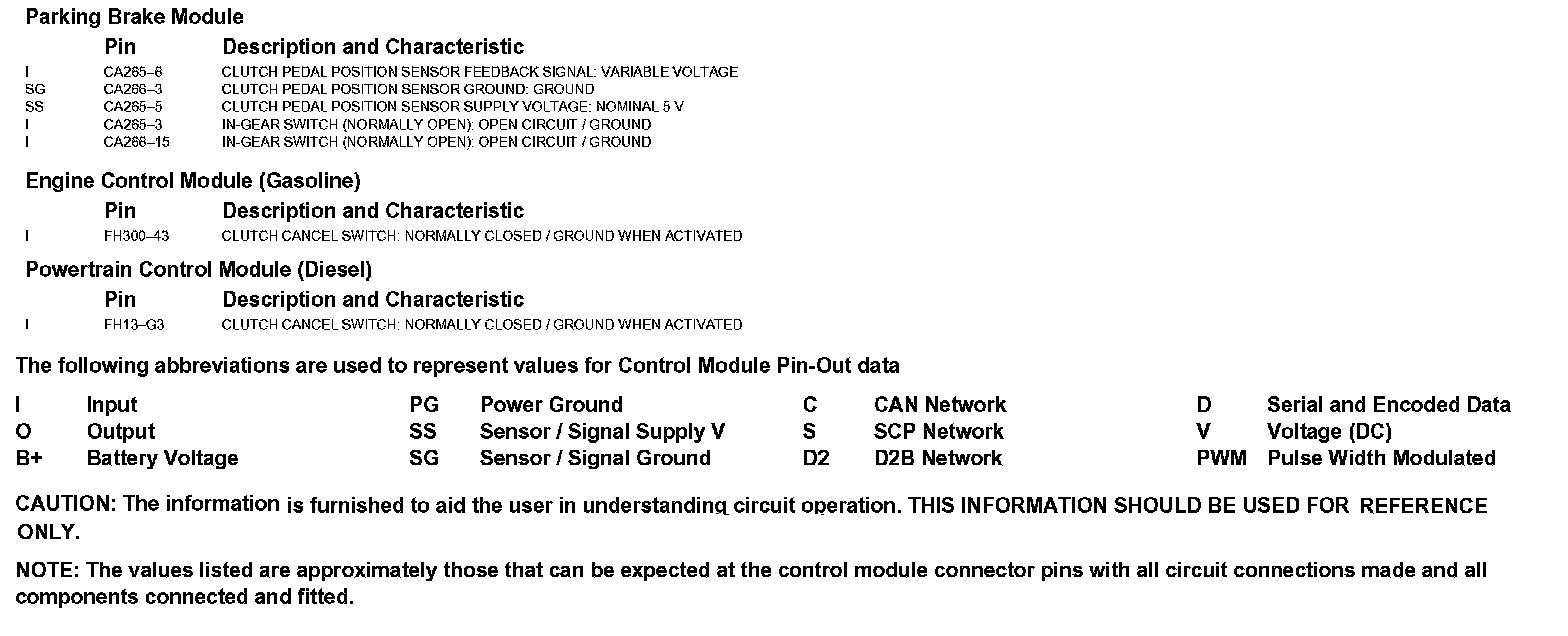

Diagram Data Sheet 04.2 (Part 1):

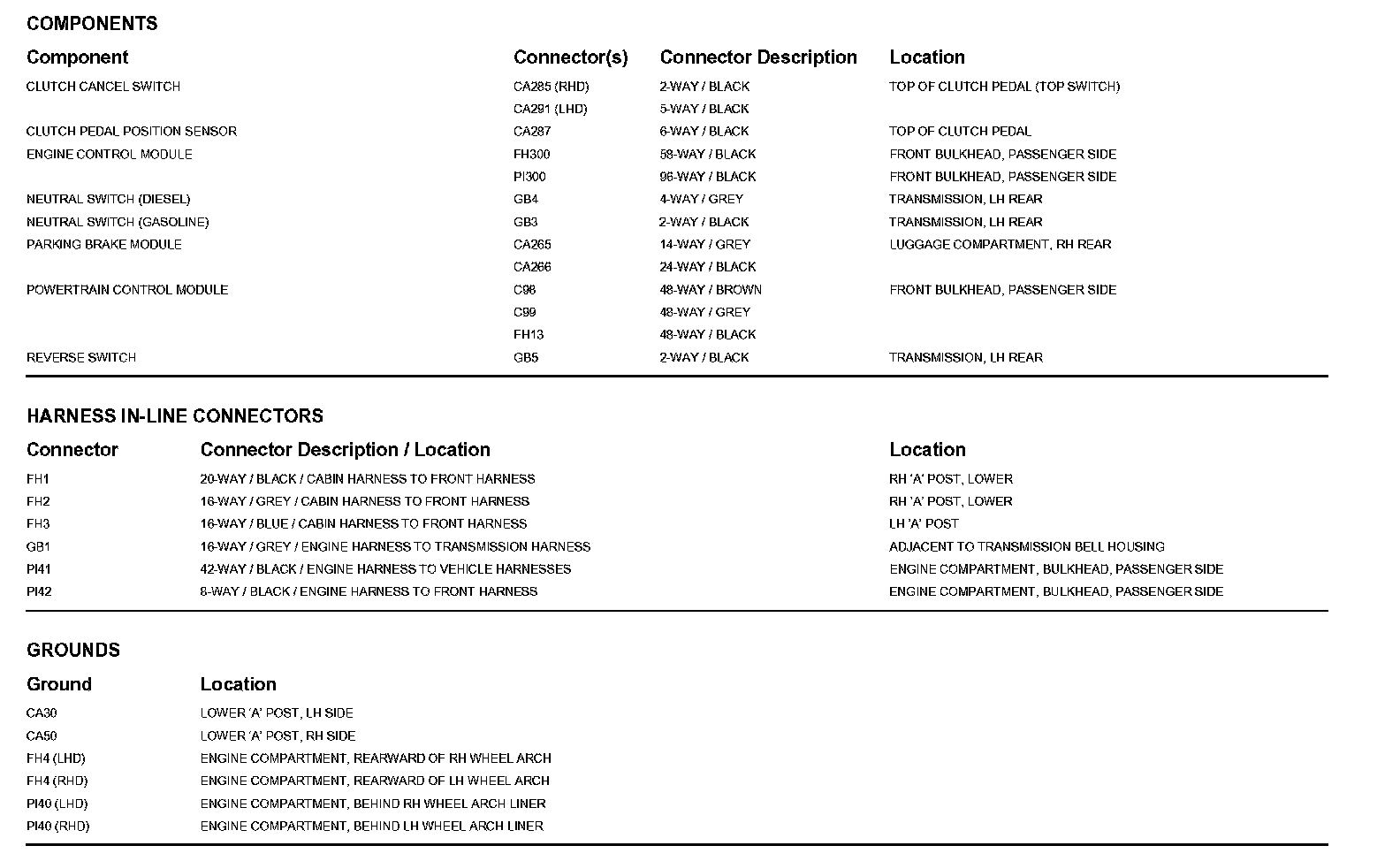

Diagram Data Sheet 04.2 (Part 2):
