Fig 05.1 (Dynamic Stability Control)
Fig 05.1 (Dynamic Stability Control)
�/-Diagram Figure 05.1:

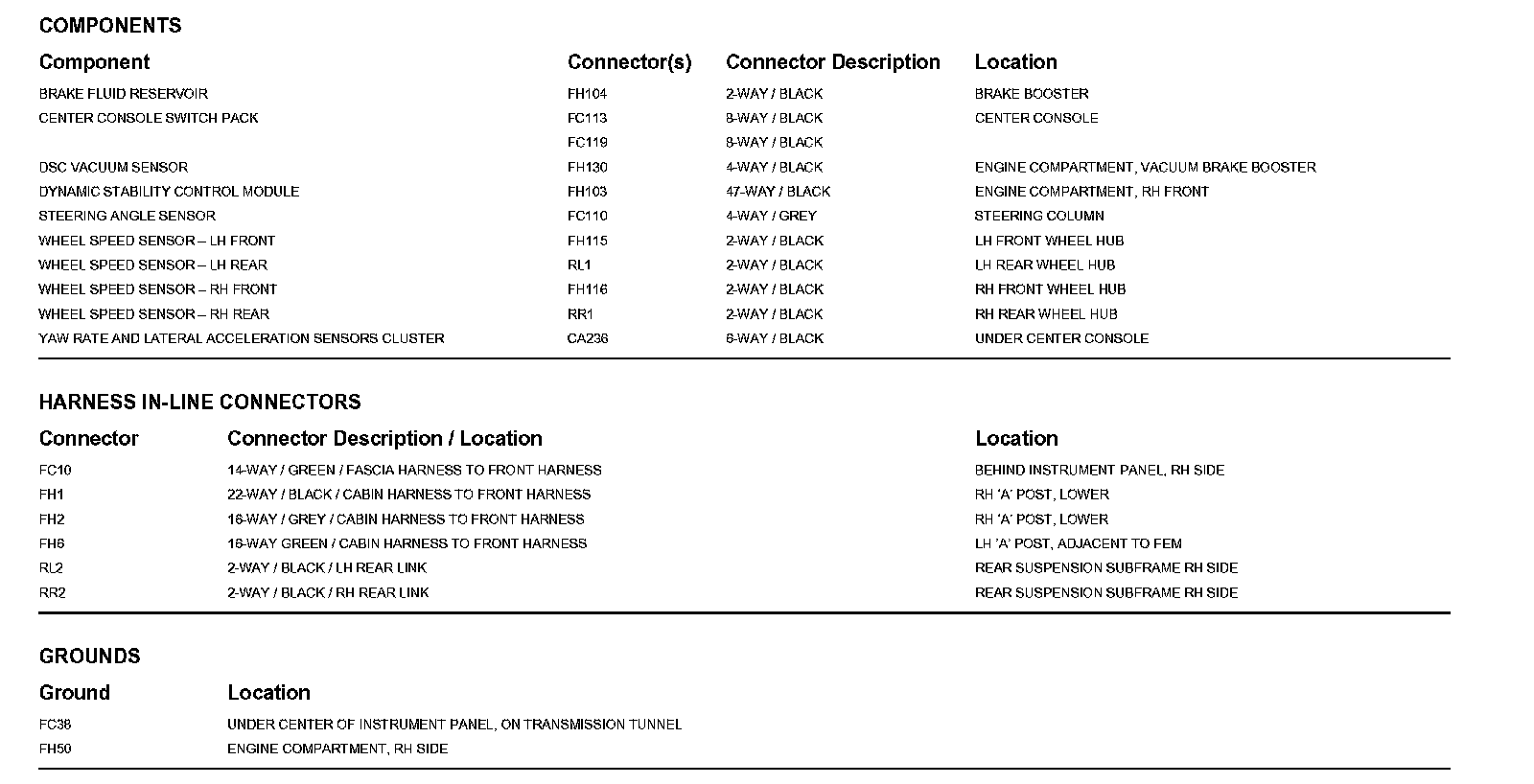

Diagram Data Sheet 05.1 (Part 1):

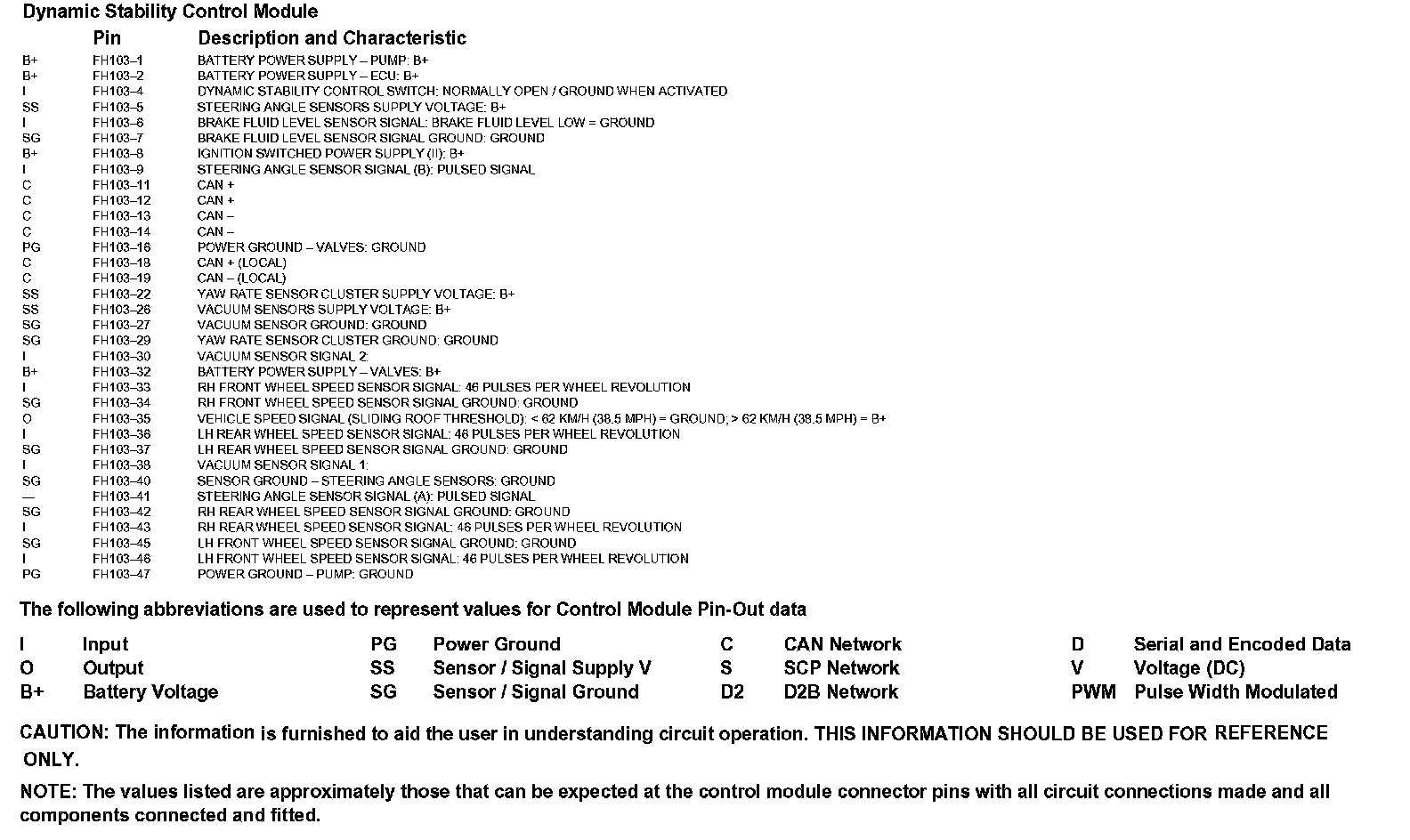

Diagram Data Sheet 05.1 (Part 2):
