Fig 08.5 (Headlamp Leveling)
Fig 08.5 (Headlamp Leveling)

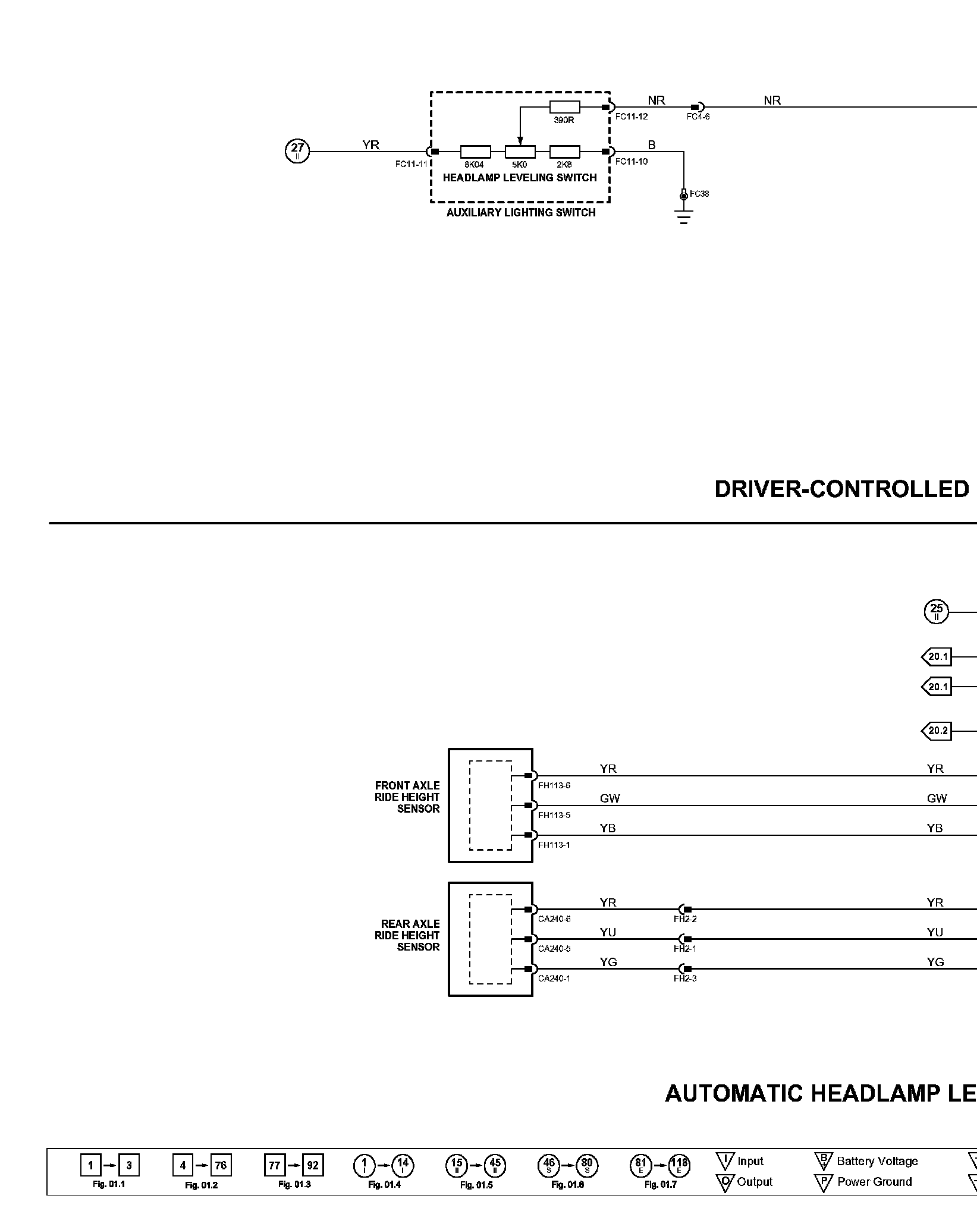

���RDiagram Figure 08.5:
Diagram Data Sheet 08.5:
