Fig 11.4 (Passenger Seat: 4 to 10-Way Movement)
Fig 11.4 (Passenger Seat: 4 to 10-Way Movement)

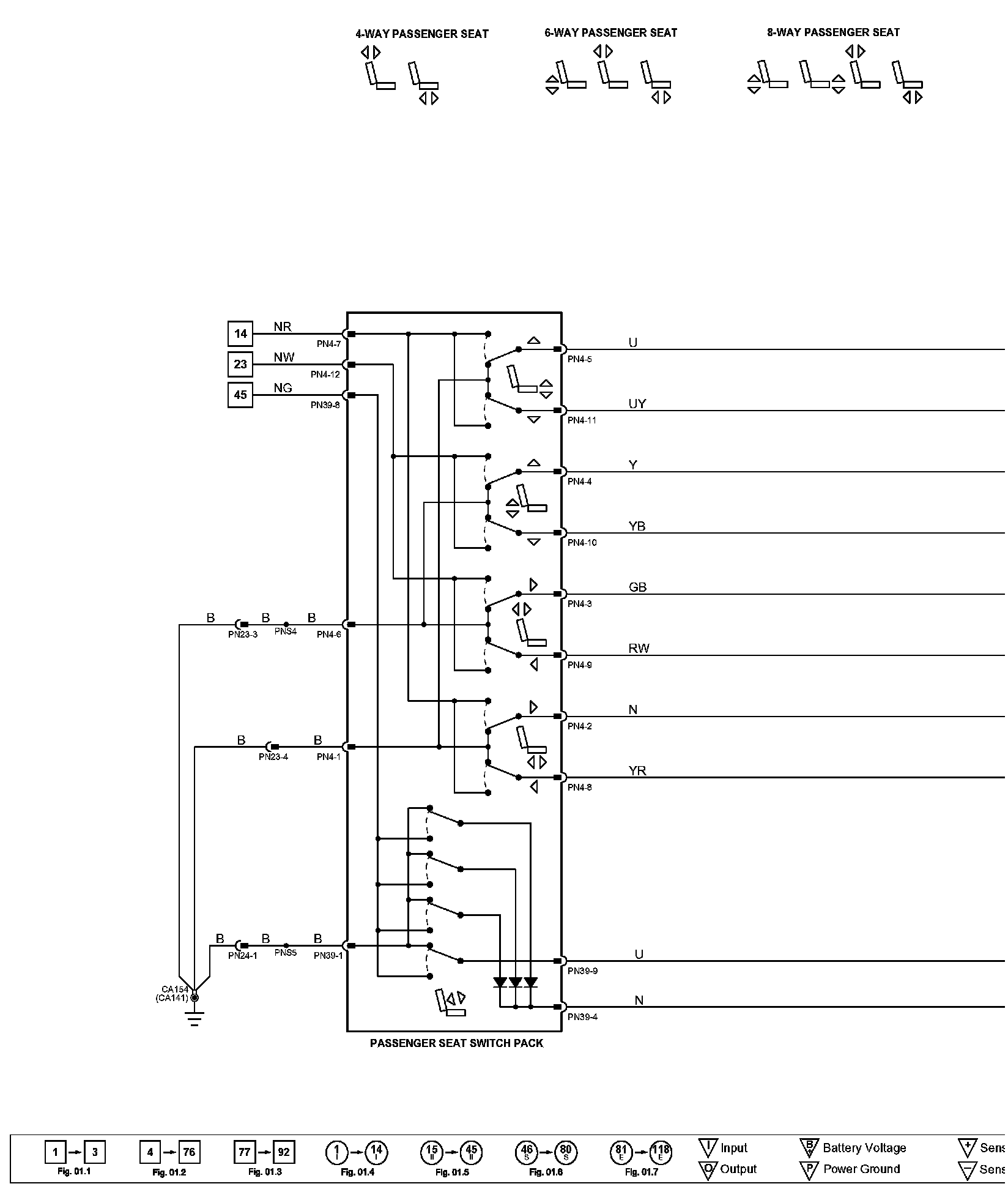

��}NDiagram Figure 11.4:
Diagram Data Sheet 11.4:
