Fig 11.5 (Passenger Seat: 12-Way Movement)
Fig 11.5 (Passenger Seat: 12-Way Movement)

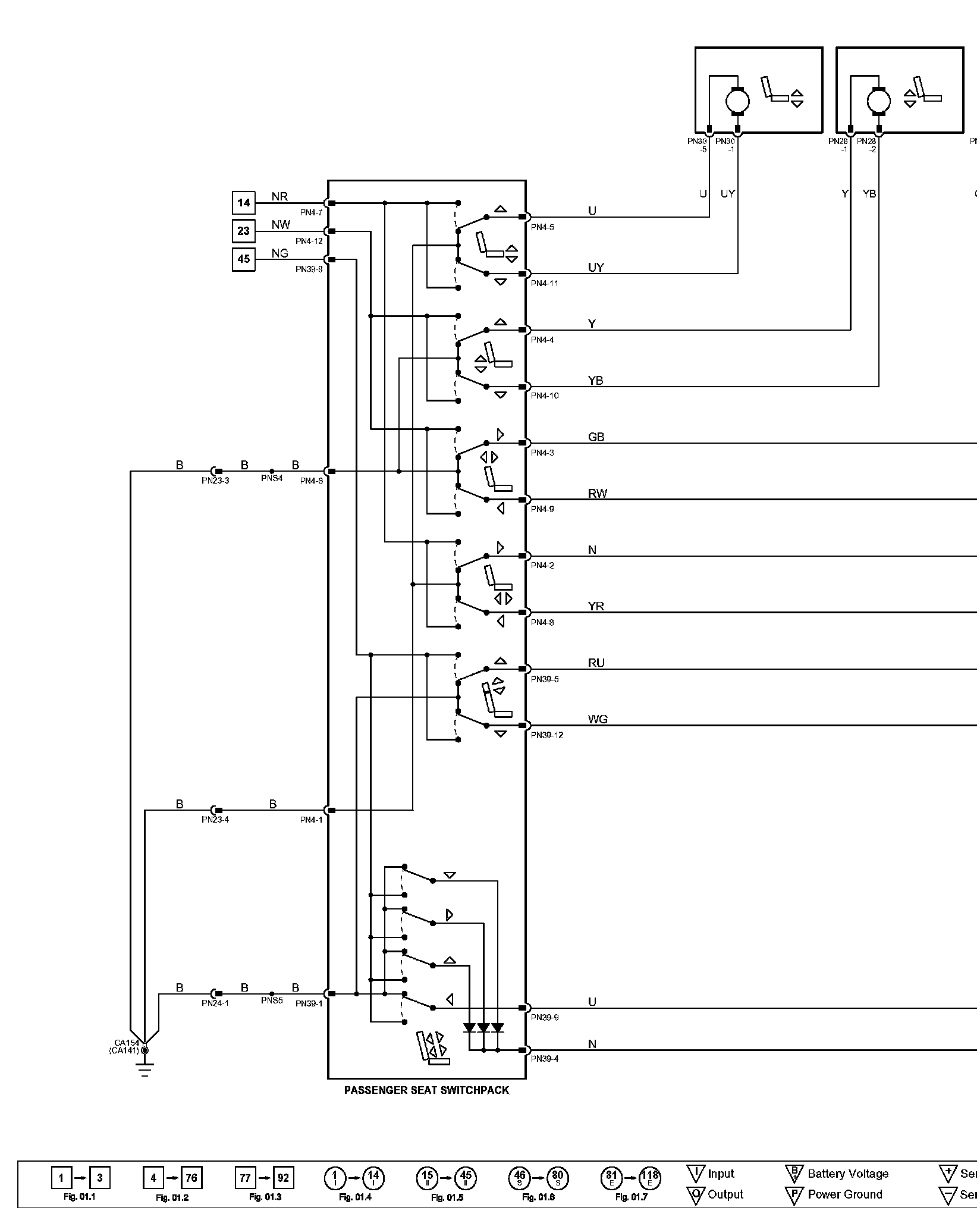

� ~NDiagram Figure 11.5:

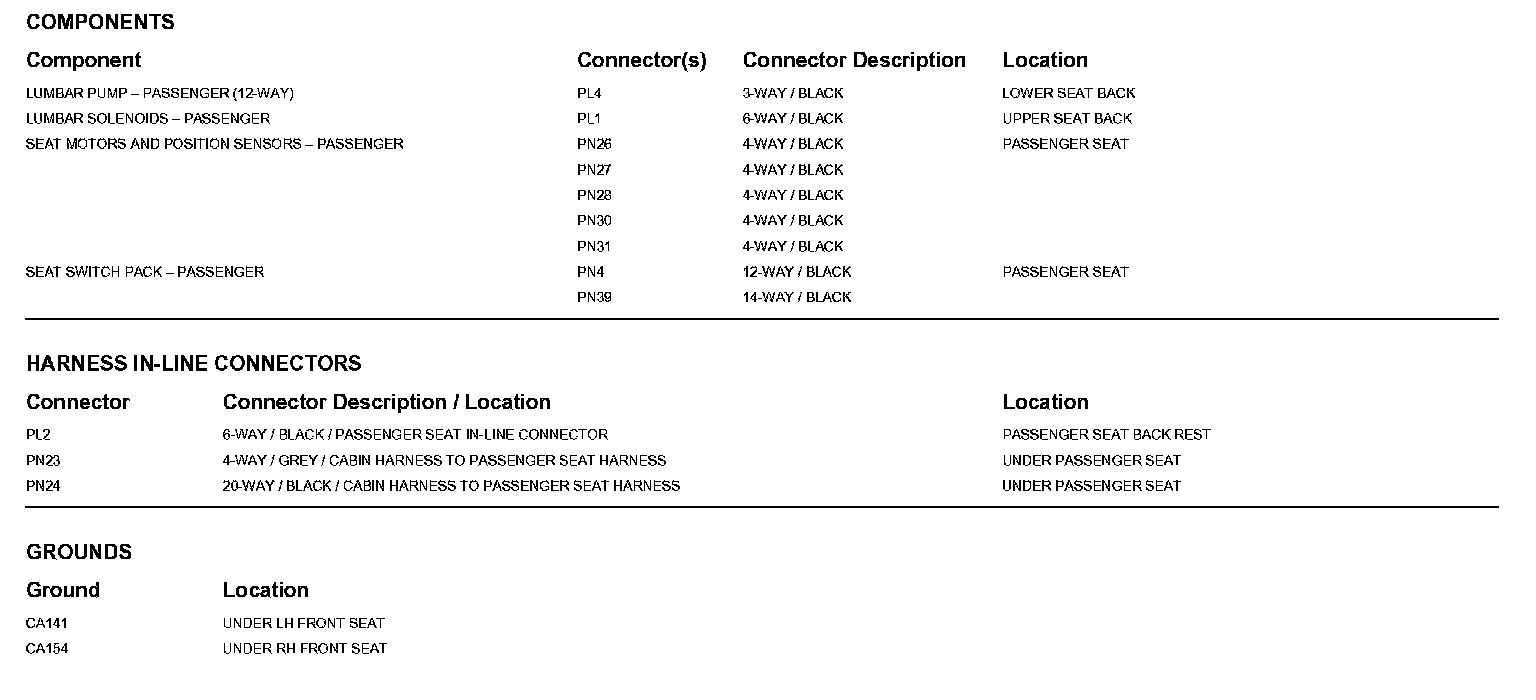

Diagram Data Sheet 11.5:
