Fig 17.1 (Advanced Restraint System: Part 1)
Fig 17.1 (Advanced Restraint System: Part 1)

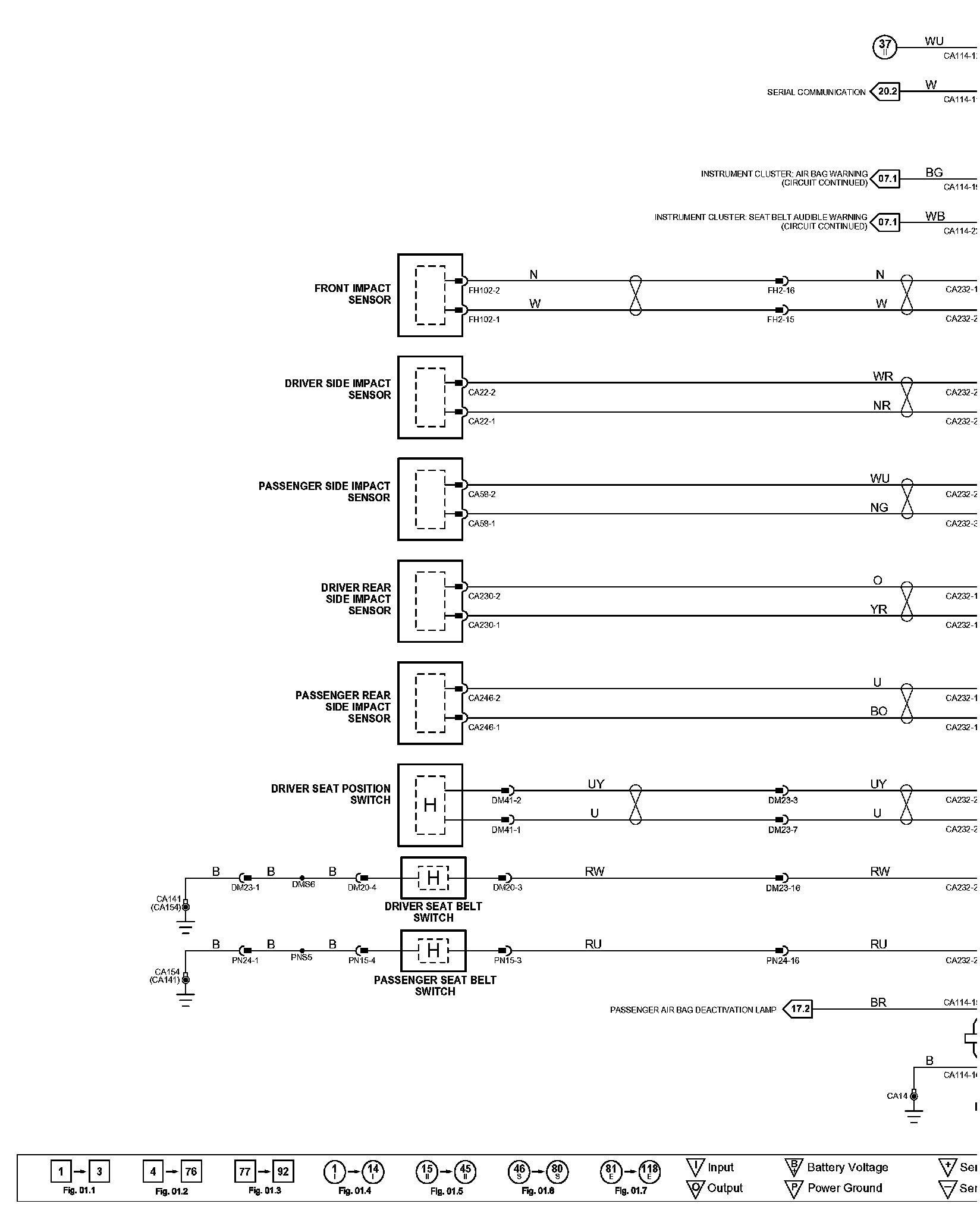

0��;Diagram Figure 17.1:
Diagram Data Sheet 17.1:
