Engine Removal

Engine - Removal
Special Service tools

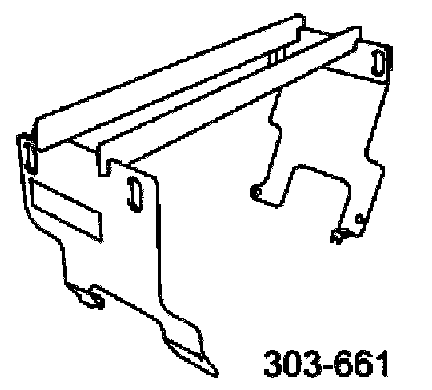

Engine lifting Bracket
303-661

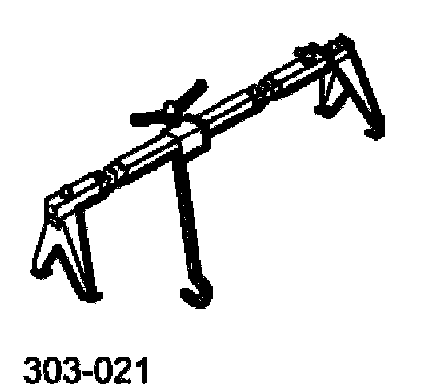

Engine Support Bracket
303-021

Removal
Vehicles with automatic transmission
1. Remove the automatic transmission assembly.
Vehicles With Manual Transmission
2. Remove the manual transmission.

All vehicles
3. Lower the vehicle.
4. Carry out the air conditioning recovery procedure.
5. Remove the cabin air filter.
6. Remove the air cleaner assembly.

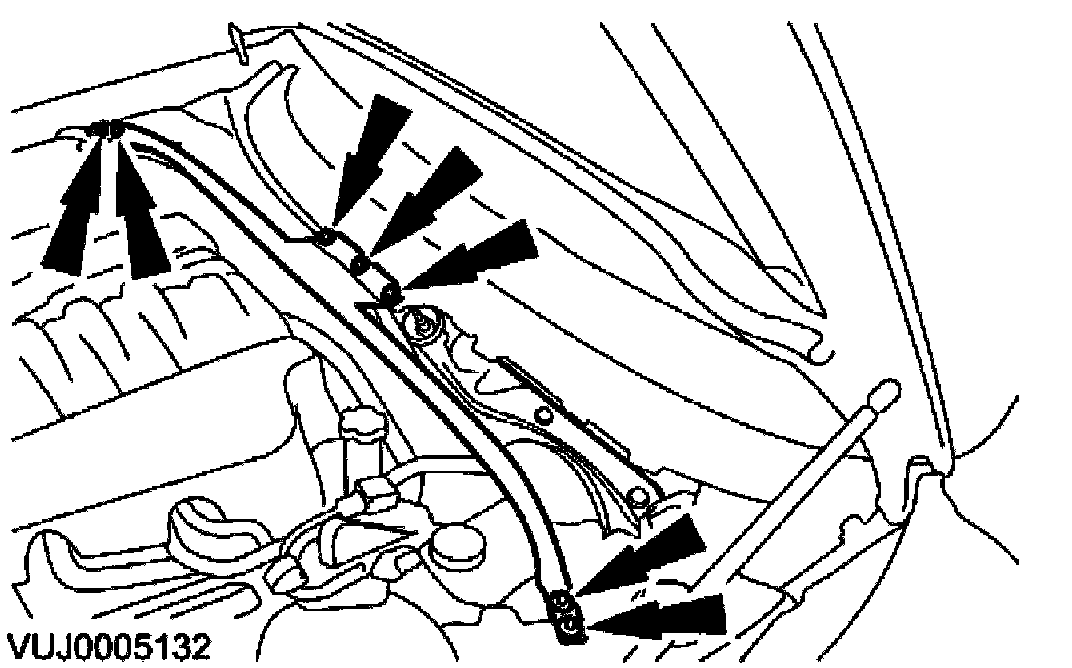

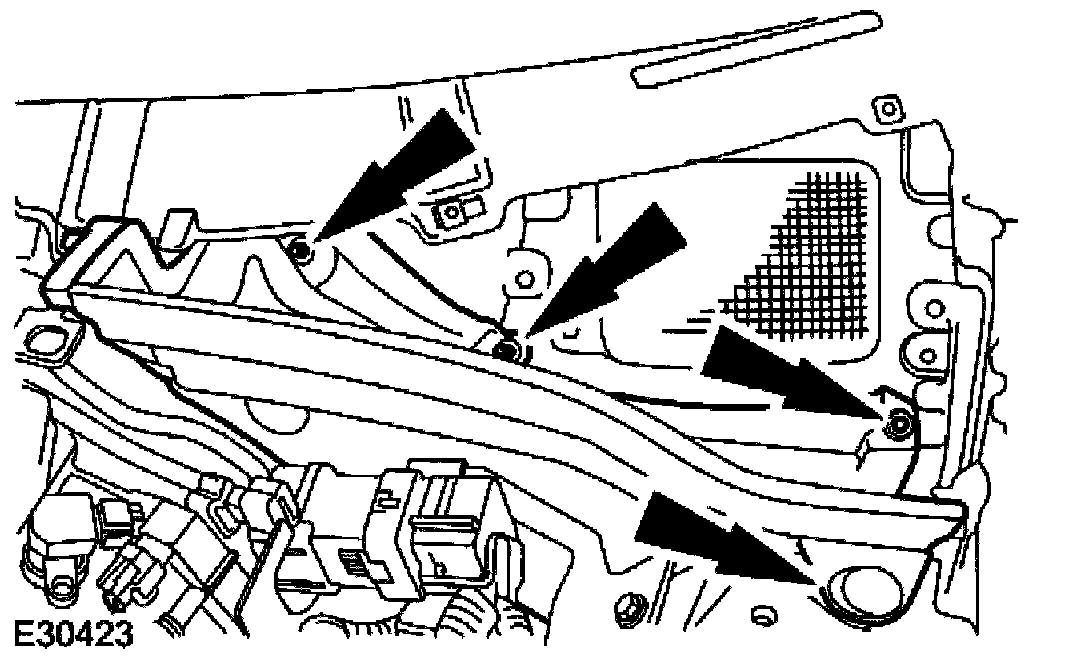

7. Remove the engine compartment support.

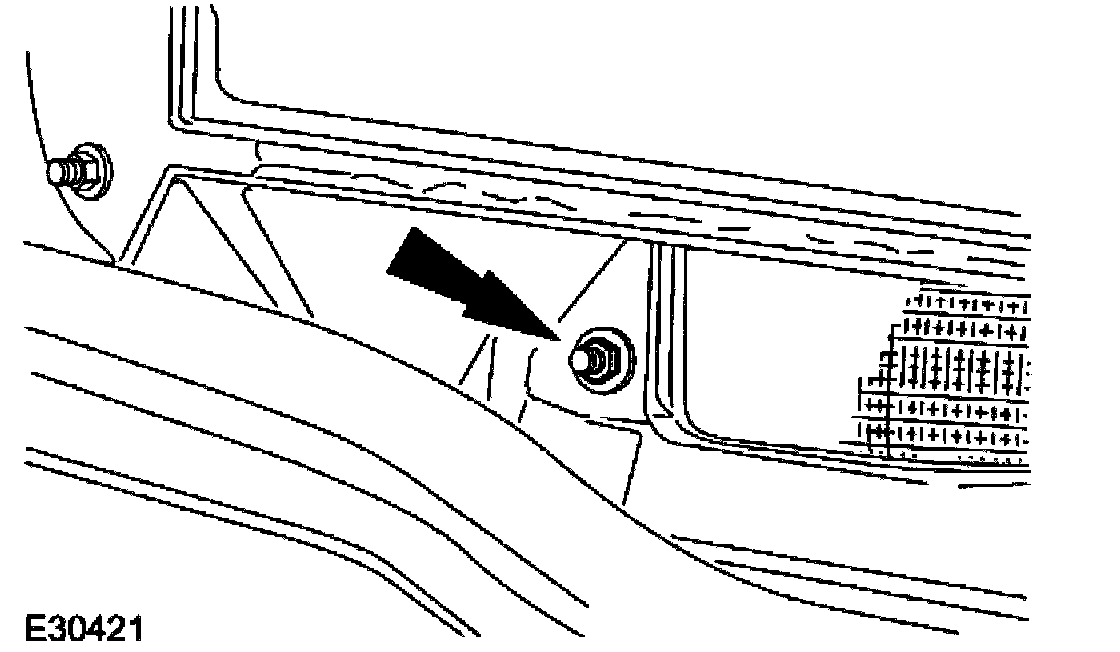

8. Remove the cabin air filter housing retaining nut.





9. Remove the cabin air filter housing.





10. Remove the engine compartment panel.
11. Raise the vehicle.

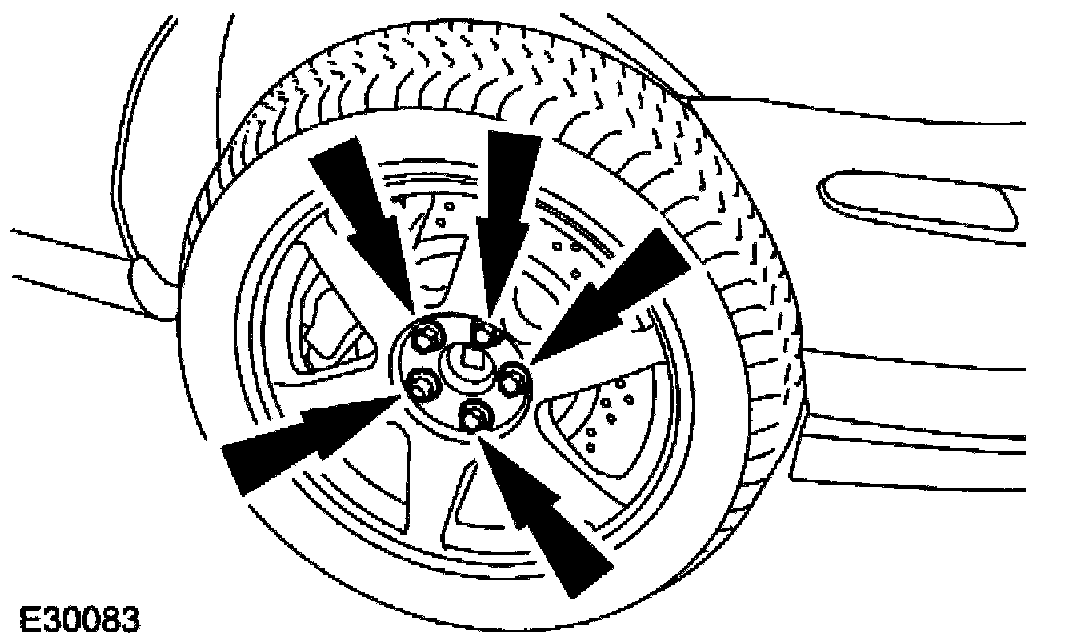

12. Remove the passenger side front wheel and tire assembly.

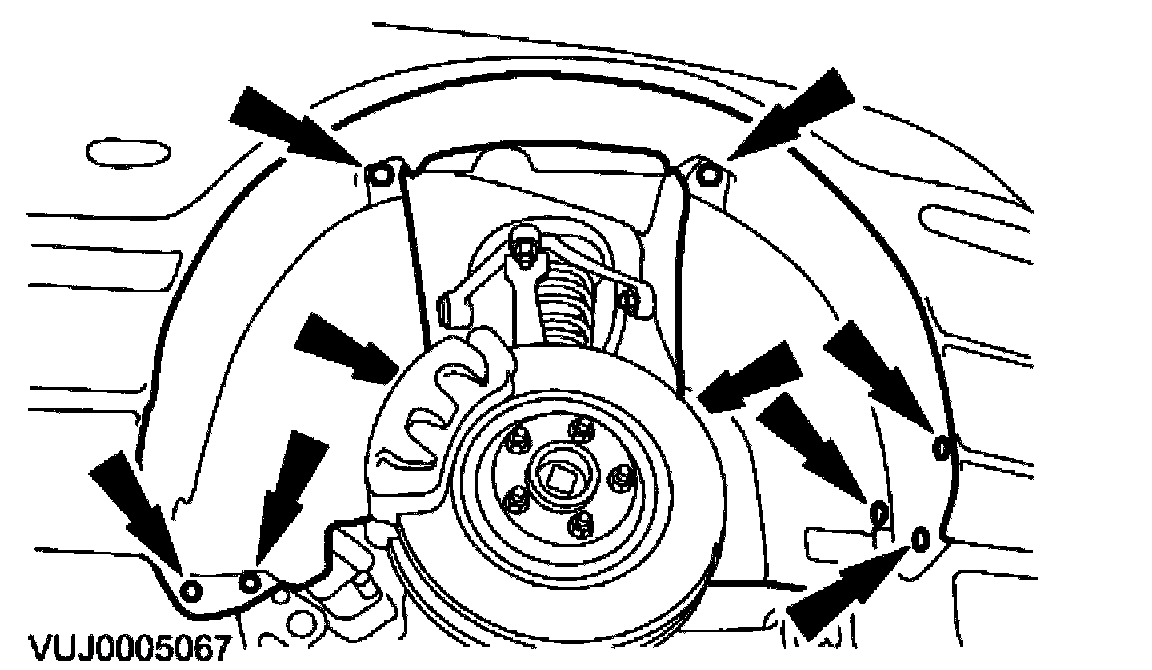

13. Remove the fender splash shield.

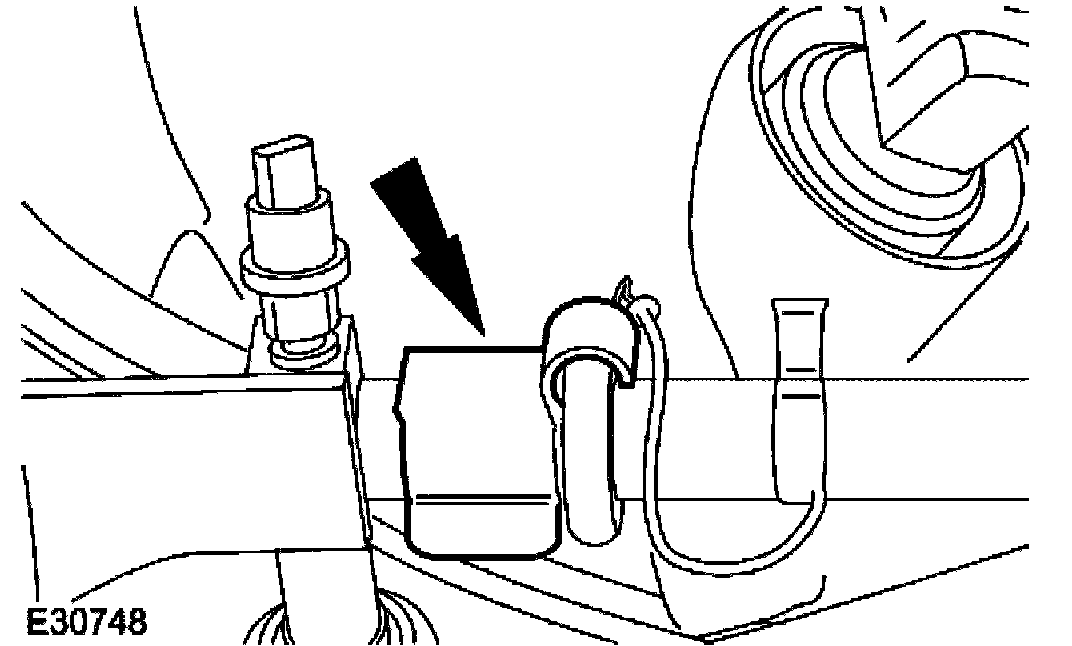

14. Disconnect the engine harness ground strap.
15. Lower the vehicle

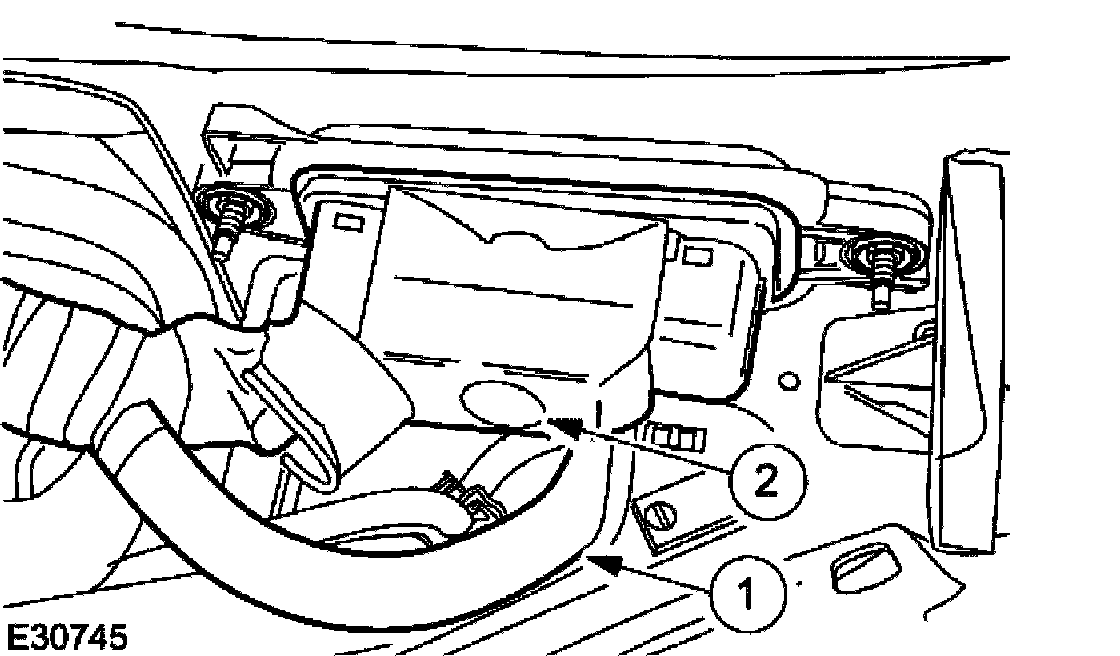

16. NOTE: The Powertrain Control Module (PCM) electrical connector retaining bolt remains captive in the electrical connector

Disconnect the Powertrain Control Module (PCM) electrical connector.
1. Reposition the engine harness ground strap.
2. Disconnect the PCM electrical connector.

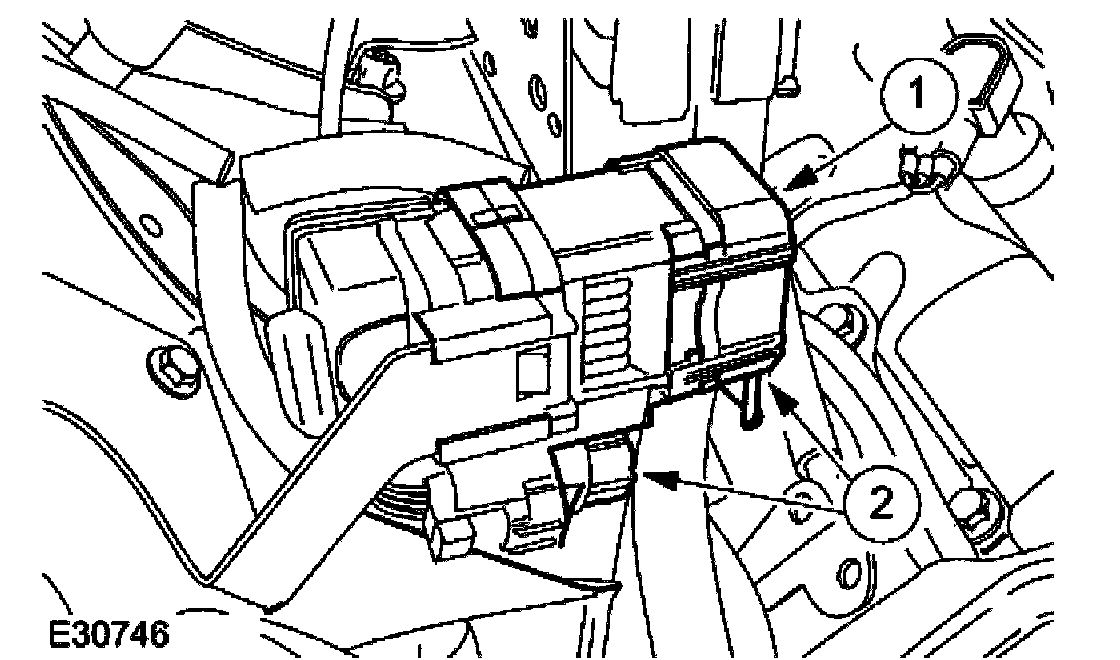

17. NOTE: The main engine harness electrical connector retaining bolt remains captive in the electrical connector.

Disconnect the engine wiring harness electrical connectors.
1. Loosen the engine harness main electrical connector retaining bolt.
2. Disconnect the engine wiring harness electrical connectors.

18. Reposition the engine wiring harness from the vehicle body.





19. Disconnect the evaporative emission canister purge valve to intake manifold hose.





20. Disconnect the fuel supply manifold spring lock coupling. [310-00]
21. Remove the cooling module.

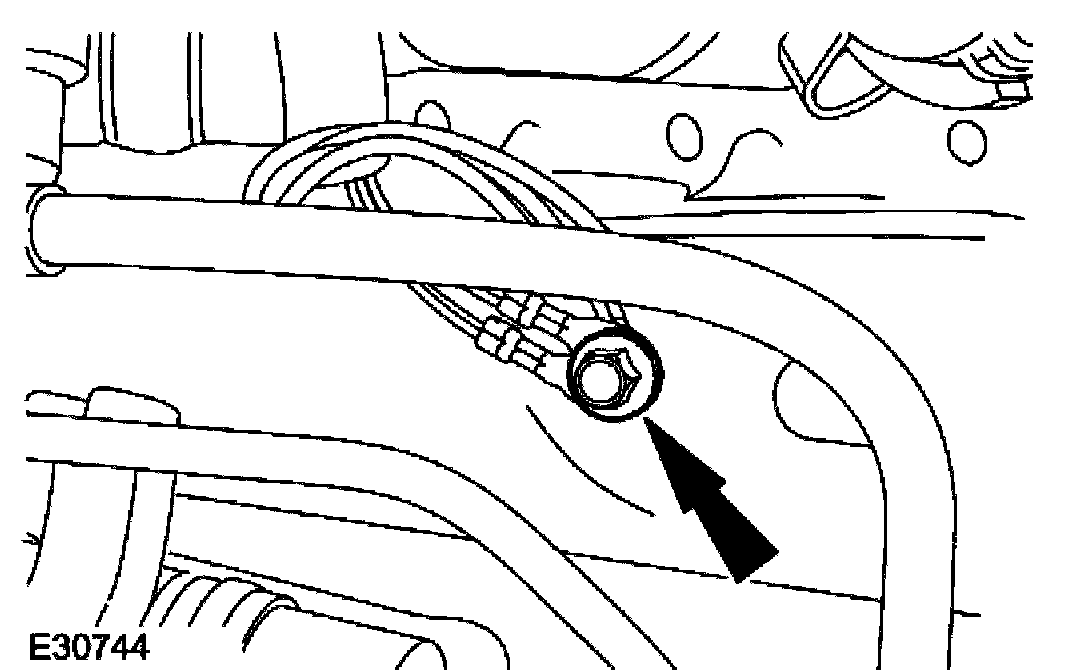

22. Detach the ground cable.

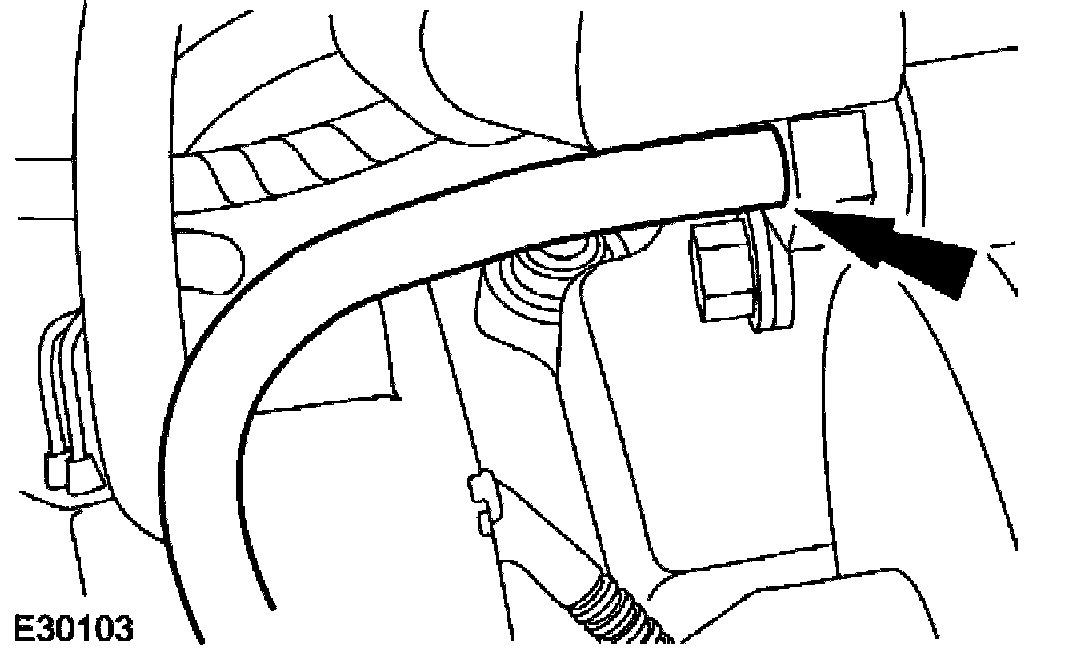

23. NOTE: Brake booster vacuum hose is attached to the induction manifold by a quick release coupling.

Detach the brake booster vacuum hose from the induction manifold.





24. CAUTION: Cap the power steering line to prevent loses of fluid and dirt ingress.

CAUTION: If power steering fluid comes into contact with the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Drain the fluid into a suitable container.

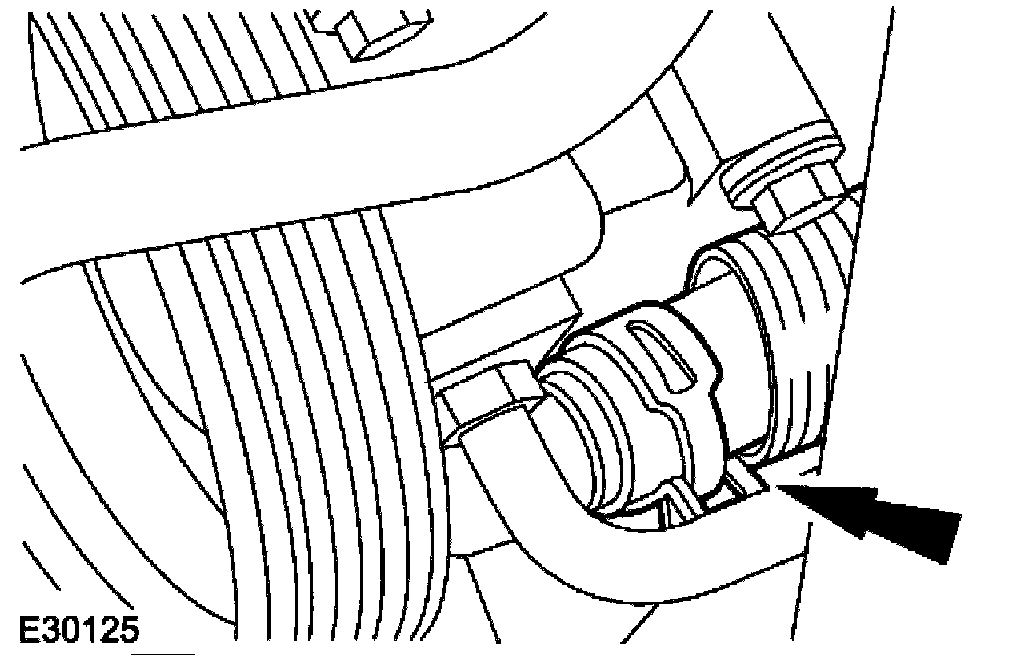

Disconnect the power steering reservoir to power steering pump supply line.





25. CAUTION: Cap the power steering lines to prevent loses of fluid and dirt ingress.

CAUTION: If power steering fluid comes into contact with the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Drain the fluid into a suitable container.

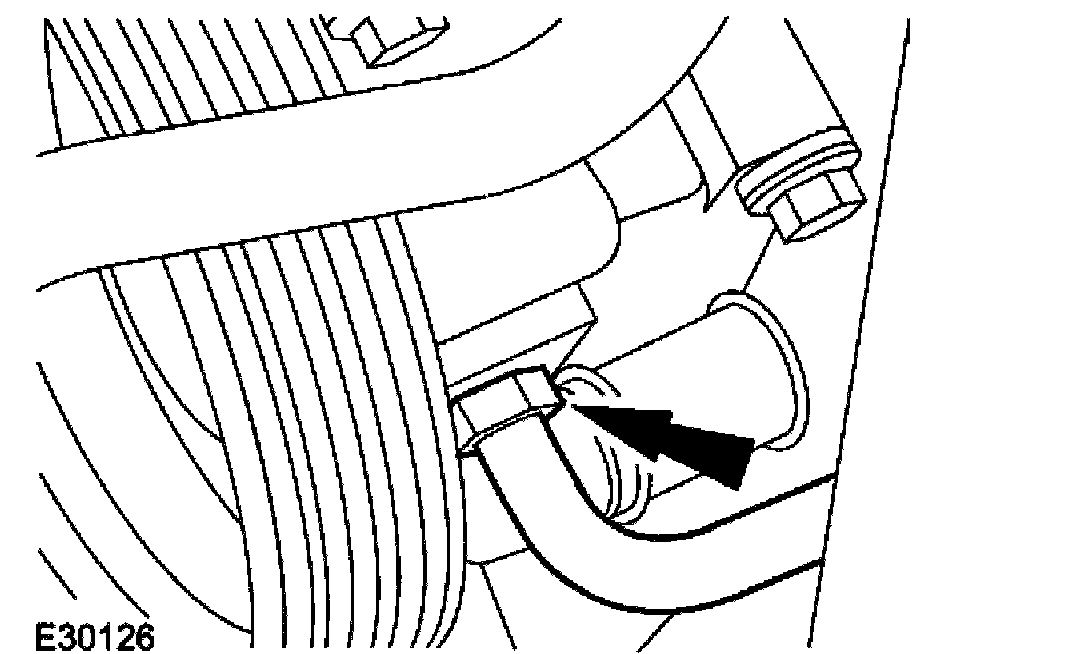

Disconnect the power steering pump to steering gear supply line.
^ Remove and discard the O-ring seal.





26. Detach the right-hand valve cover wiring harness.





27. Disconnect the left-hand ignition coils electrical connectors.
