Wheel Hub: Service and Repair

Wheel Bearing and Wheel Hub

Removal
1. Remove the brake disc.





2. Detach the front wheel speed sensor harness.





3. Remove the front wheel speed sensor.
^ Disconnect the electrical connector.

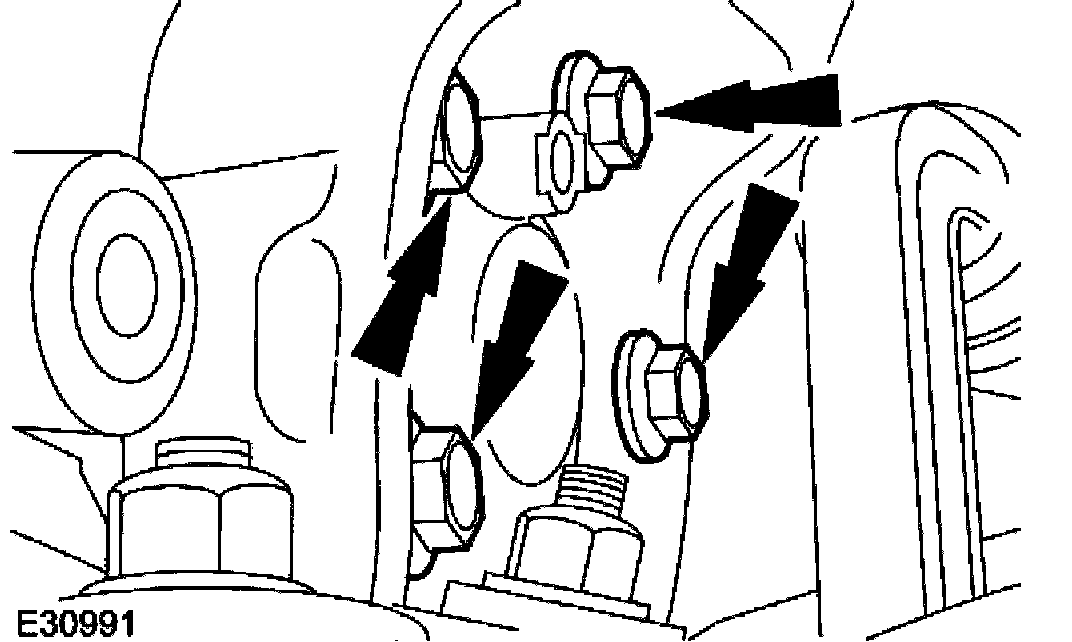

4. Remove the wheel bearing and hub retaining bolts.

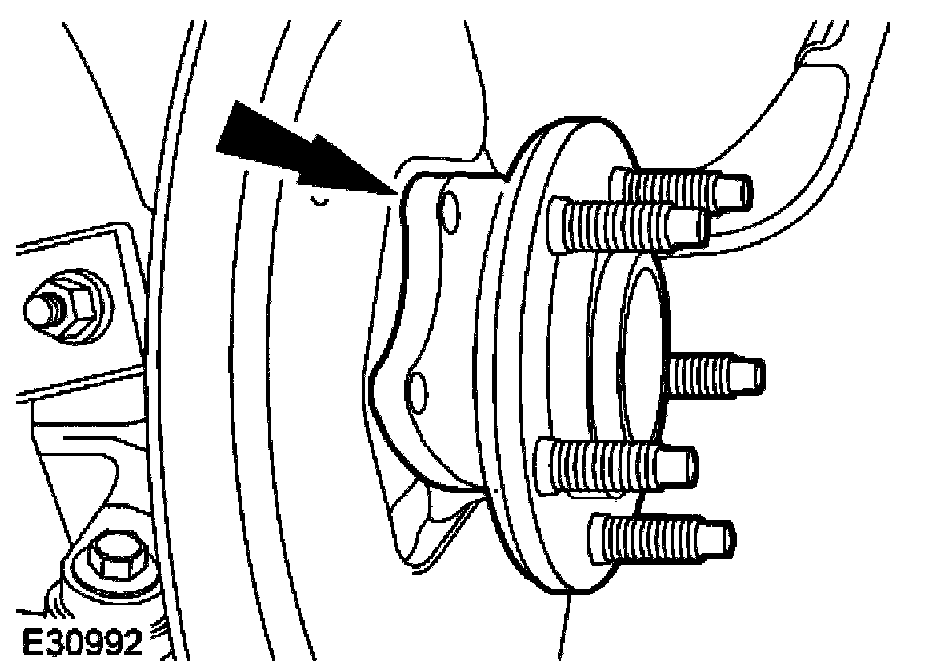

5. Remove the wheel bearing and hub.

Installation





1. To install, reverse the removal procedure.
^ Tighten to 90 Nm.
