Fuel Pump: Locations

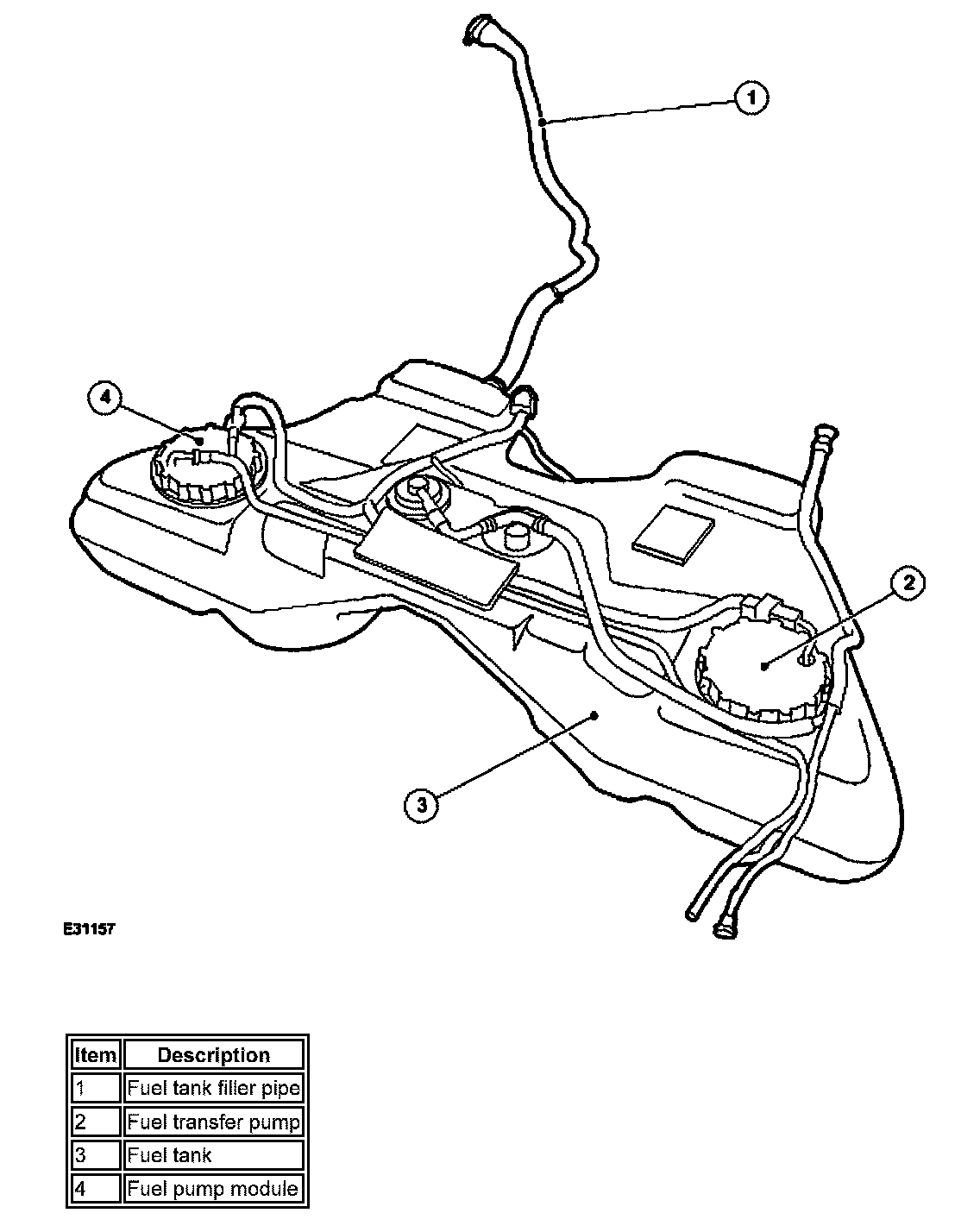

Fuel Tank and Lines - VIN Range: M45255->N52206 - Vehicle Without Supercharger:

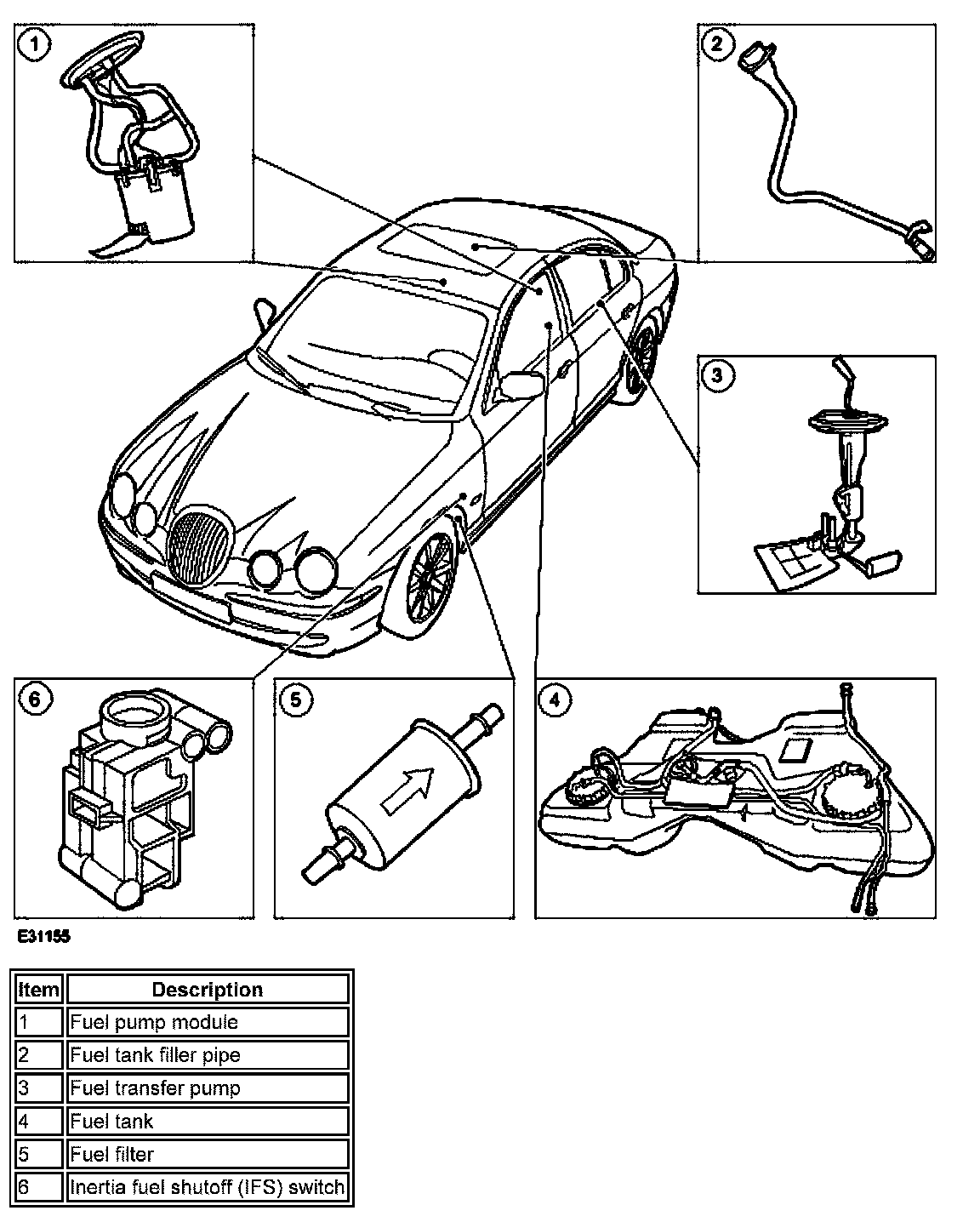

Fuel Tank and Lines - VIN Range: M45255->N52206 - Vehicle With Supercharger:

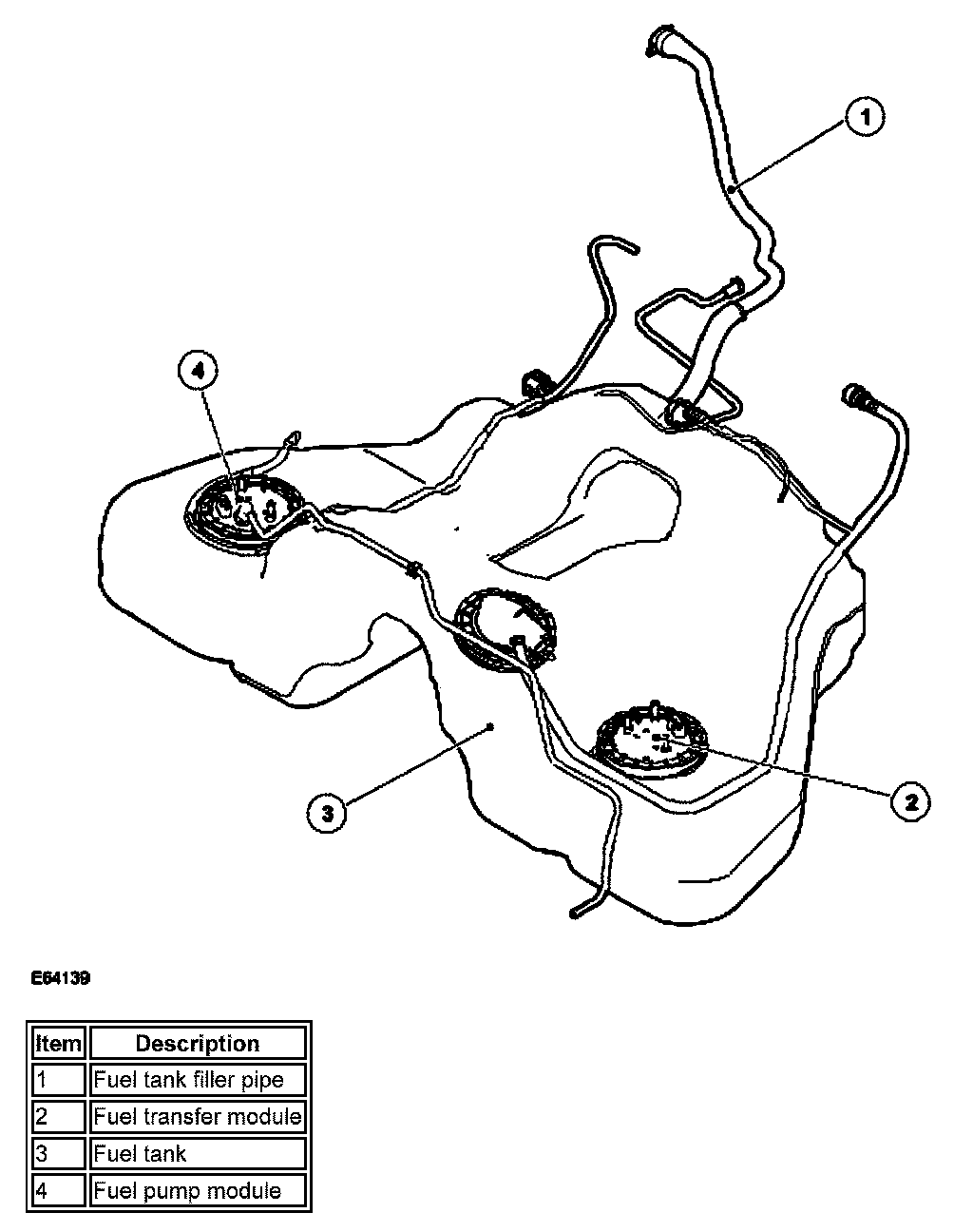

Fuel Tank and Lines - VIN Range: M52207->N99999 - Vehicle Without Diesel Engine:
