Connectors

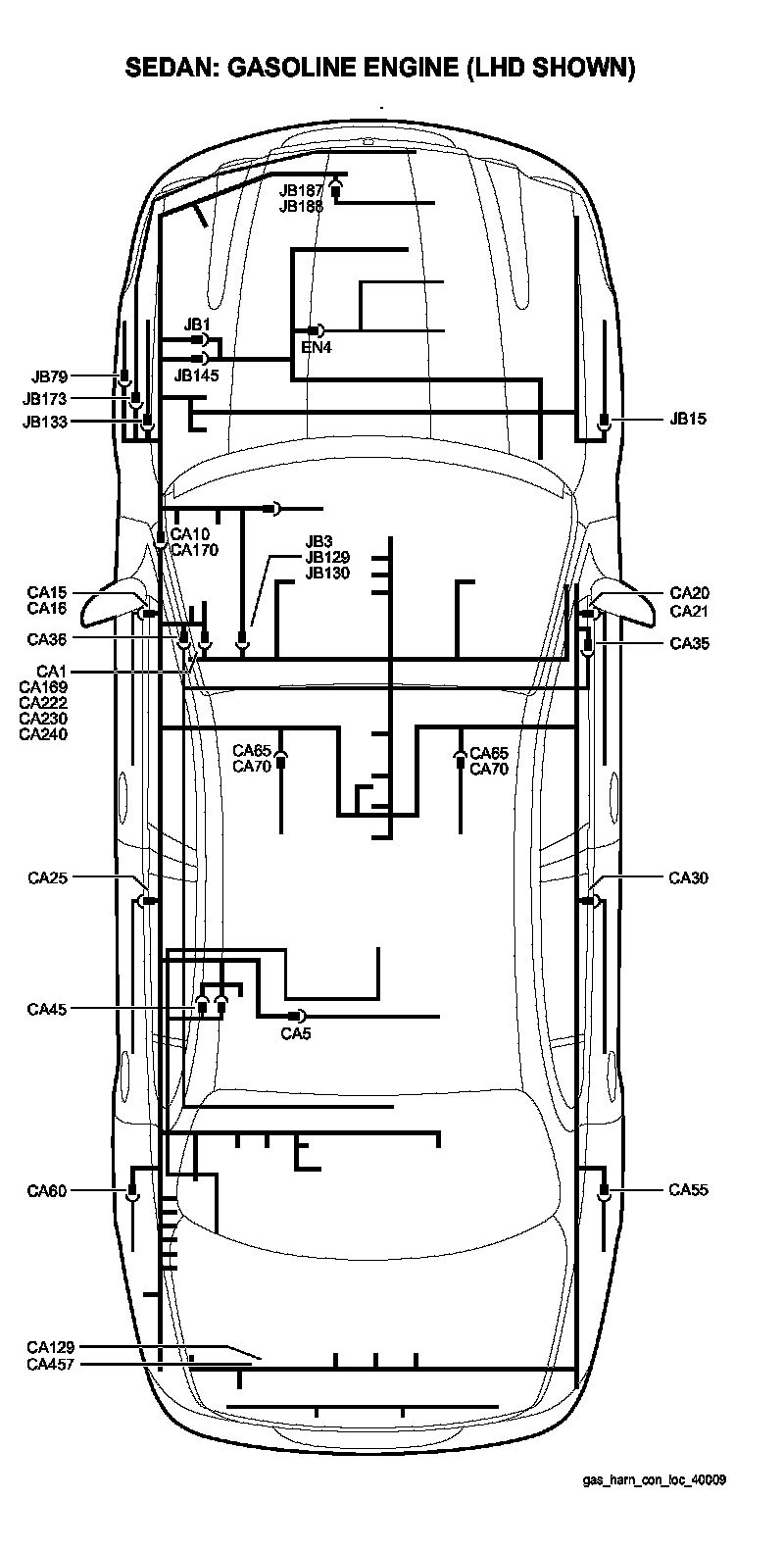

Harness In-Line Connector Location:

Harness In-Line Connector Location:

Harness In-Line Connector Location:
