Radiator Grille

Radiator Grille

Removal

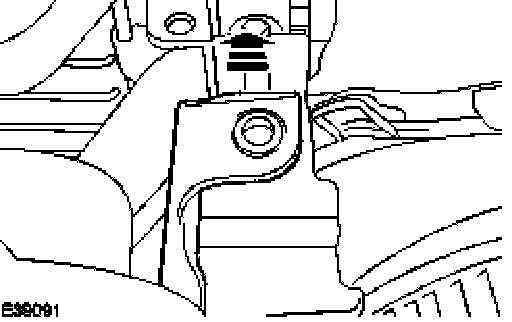

1. Remove the radiator grille retaining bolts.

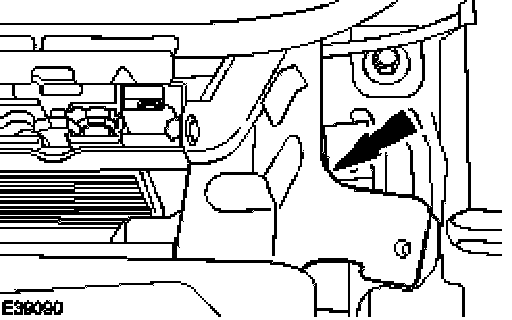

2. Remove the air deflector.

NOTE: Left-hand shown, right-hand similar.

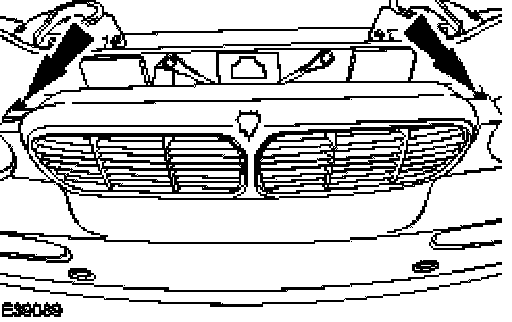

3. Detach the radiator grille.

NOTE: Left-hand shown, right-hand similar.







4. Remove the radiator grille.

Installation
1. To install, reverse the removal procedure.

NOTE: Check the lower radiator grille retaining legs are fully seated by lifting the rubber skirts after installation.
