Fig 11.10 (Climate Seats - LHD)
Fig 11.10 (Climate Seats - LHD)

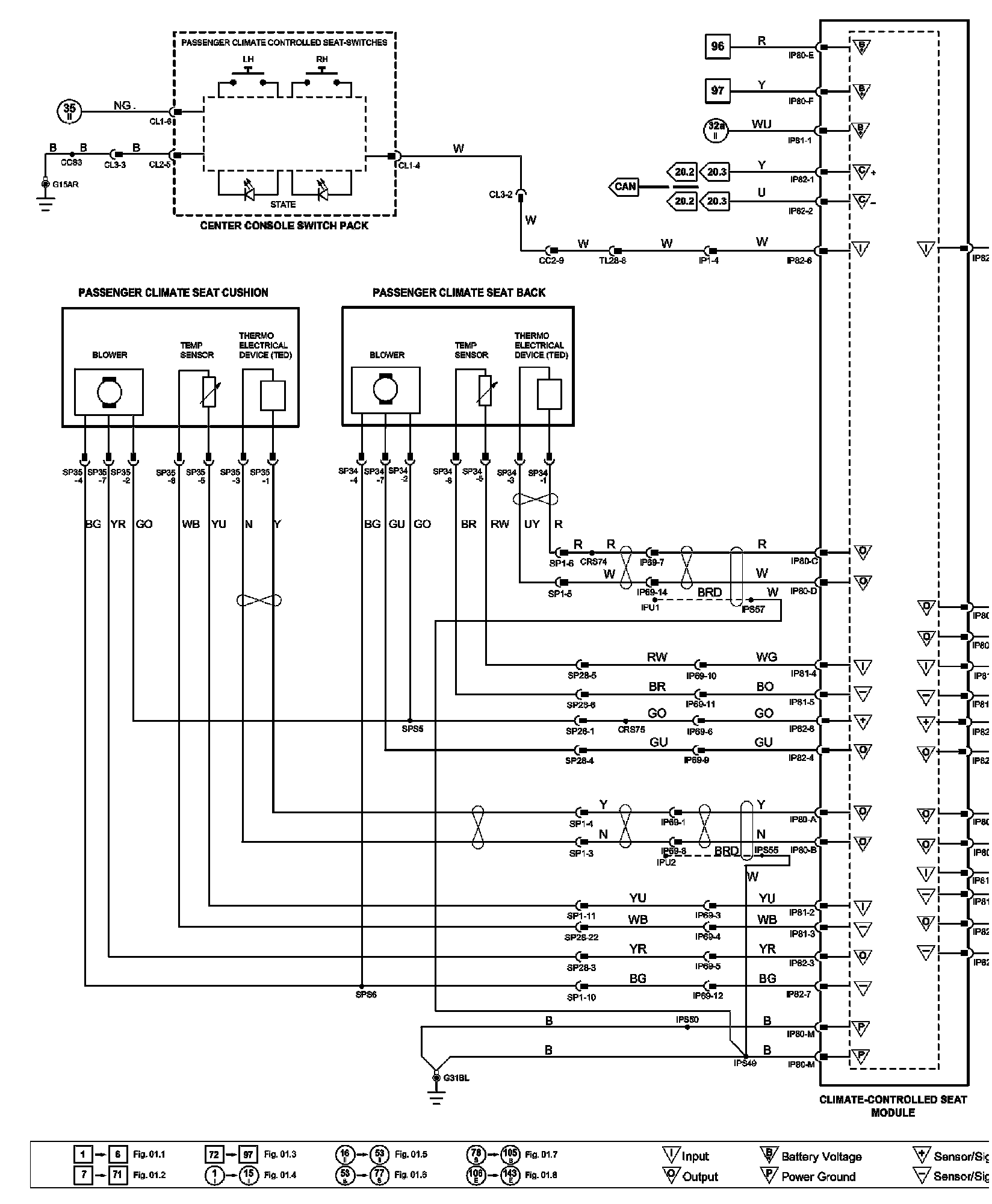

A��LDiagram Figure 11.10:

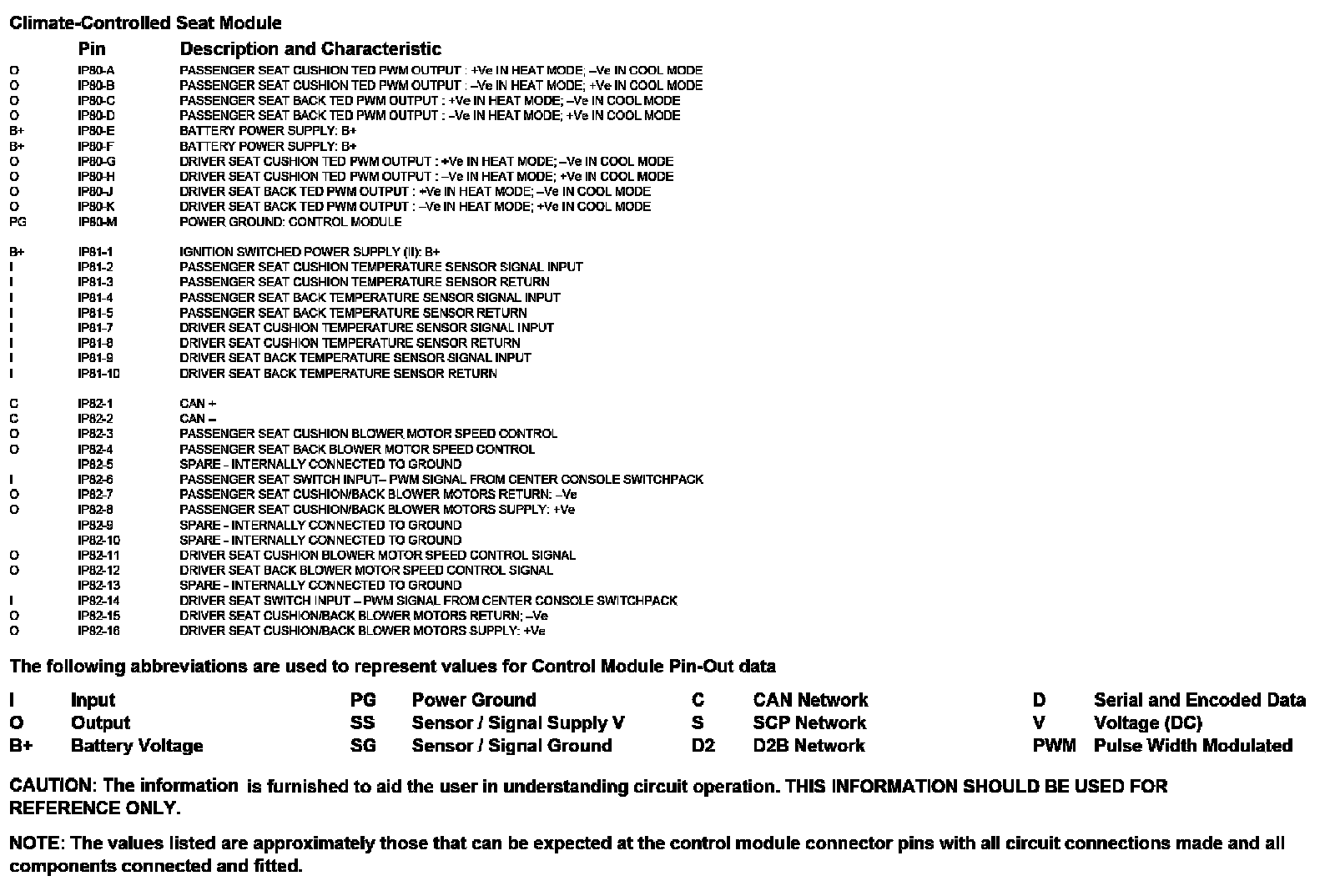

Diagram Data Sheet 11.10 (Part 1):

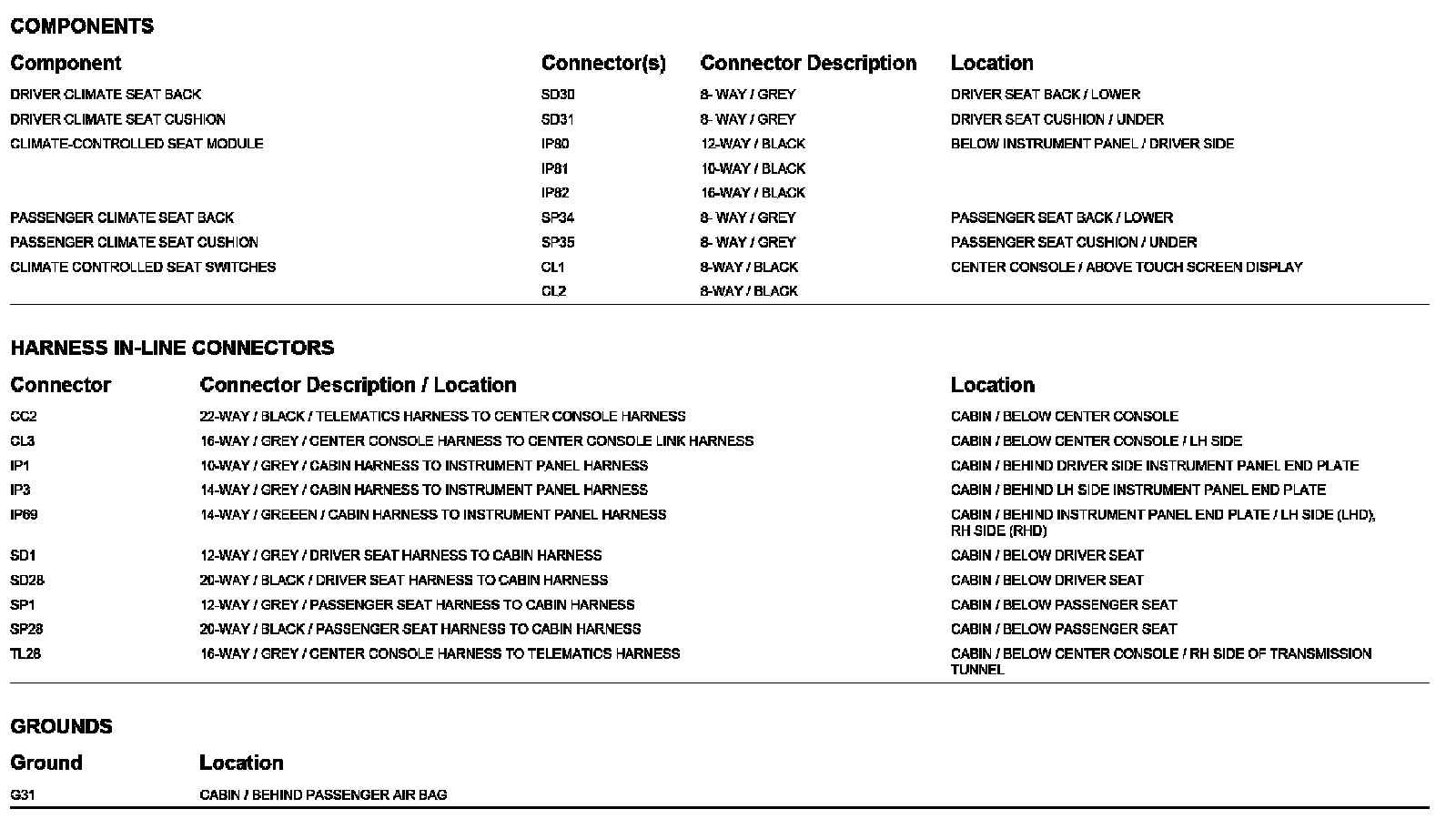

Diagram Data Sheet 11.10 (Part 2):
