Fig 11.2 (Driver Seat: 16-Way Movement With Memory)

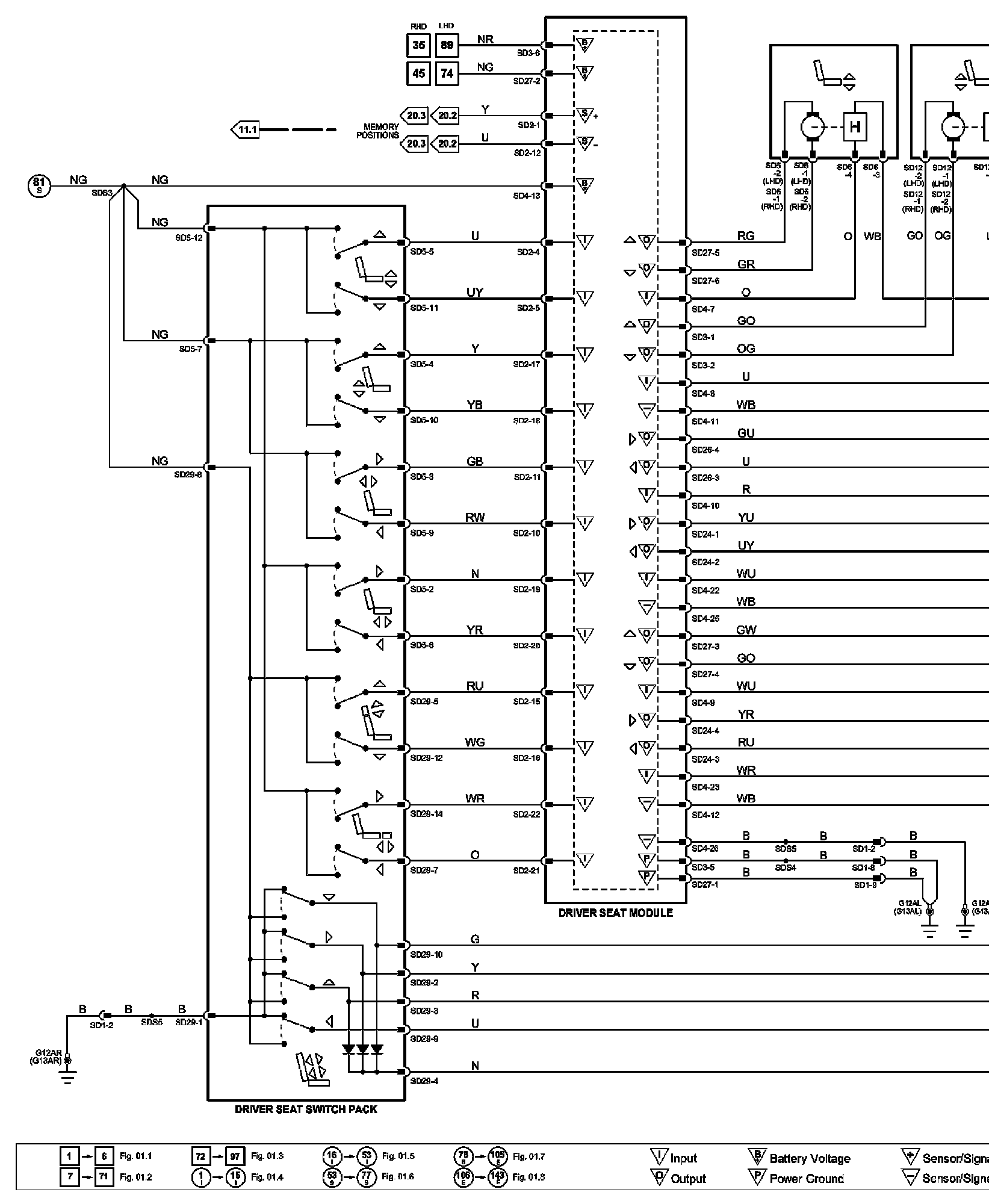

I�?Diagram Figure 11.2:

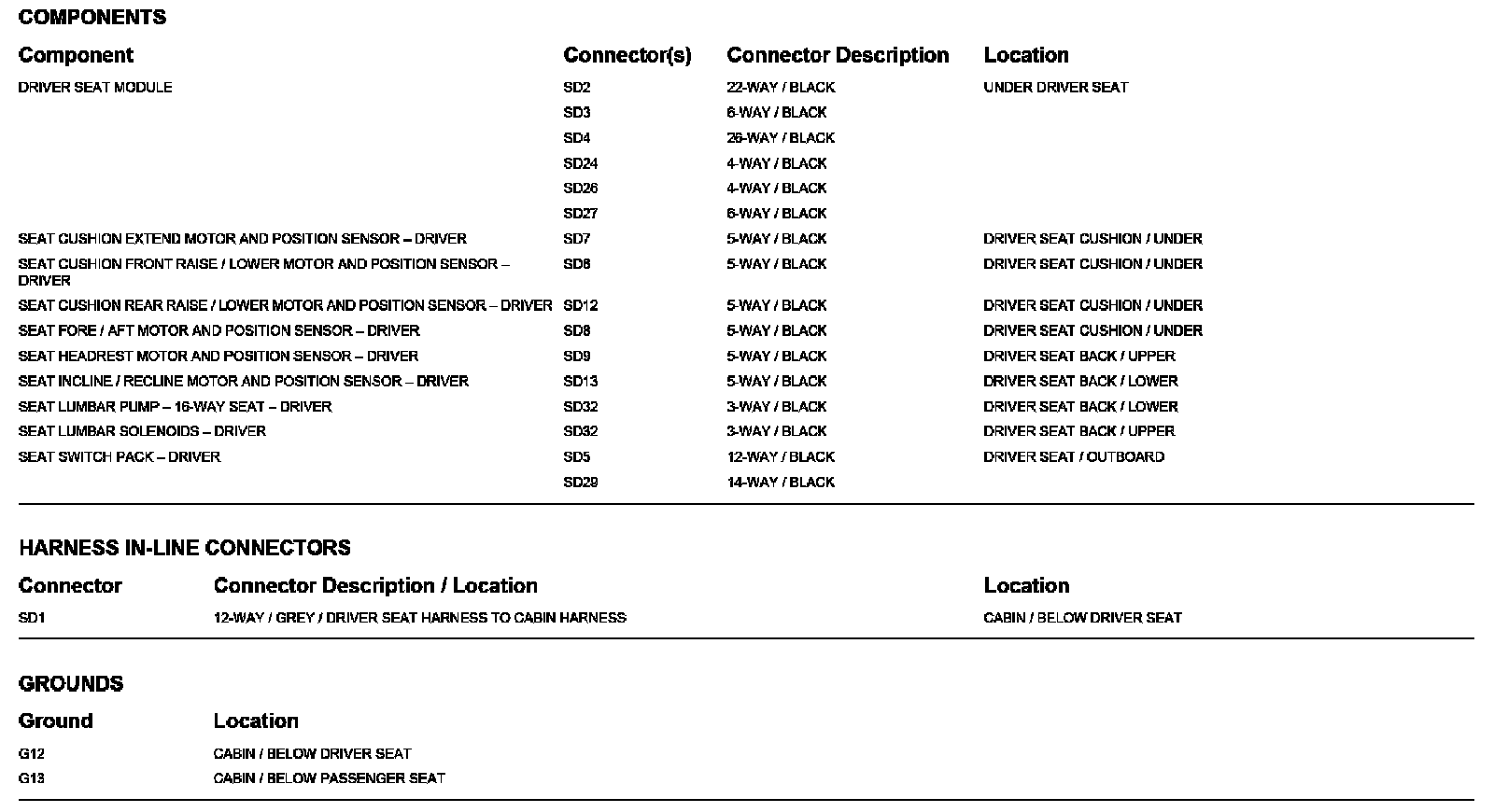

Diagram Data Sheet 11.2 (Part 1):

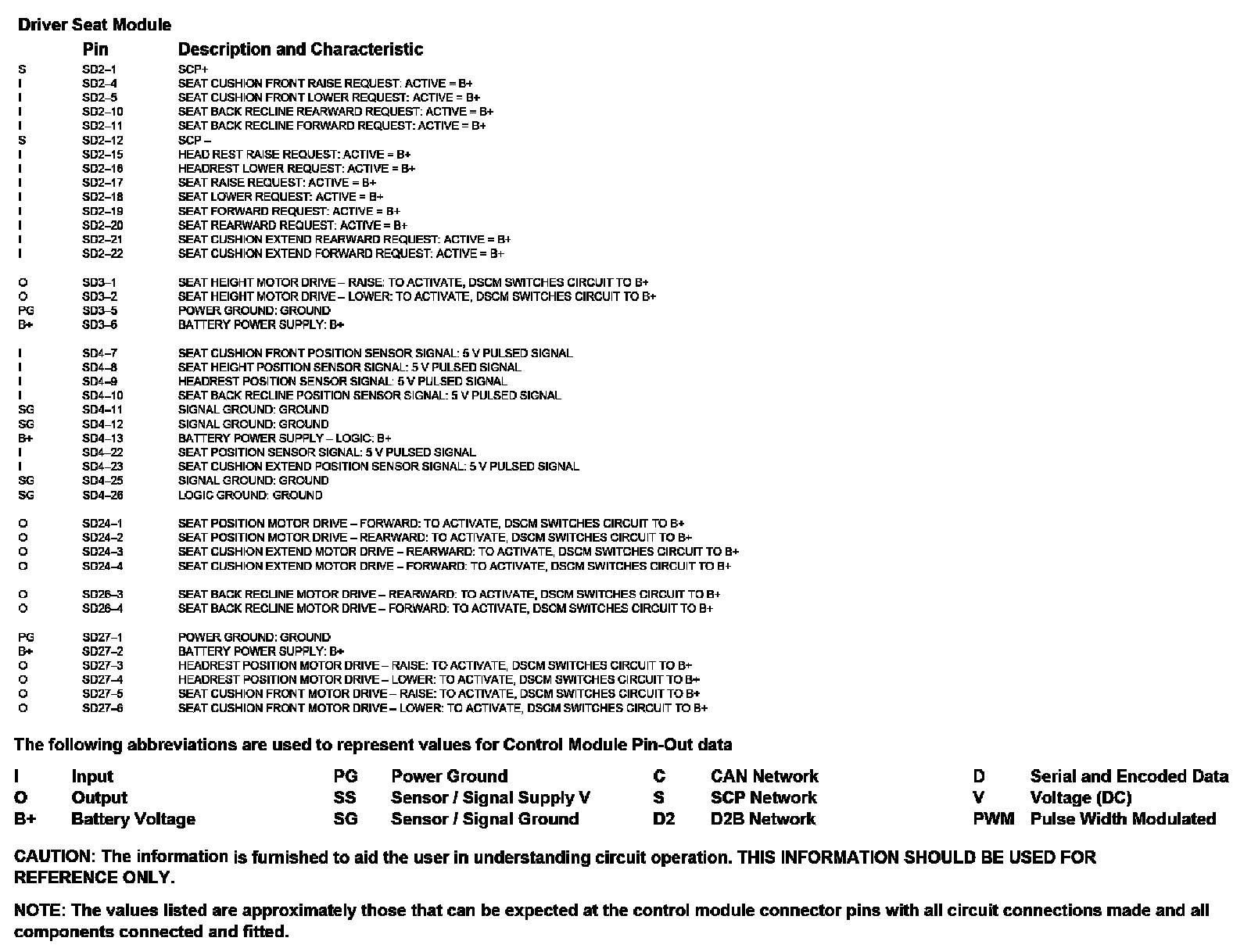

Diagram Data Sheet 11.2 (Part 2):
