Home >> Jaguar >> 2008 >> XJ (X350) V8-4.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Figure Number >> Fig 11.7 (Powered Rear Seats: LH Seat)

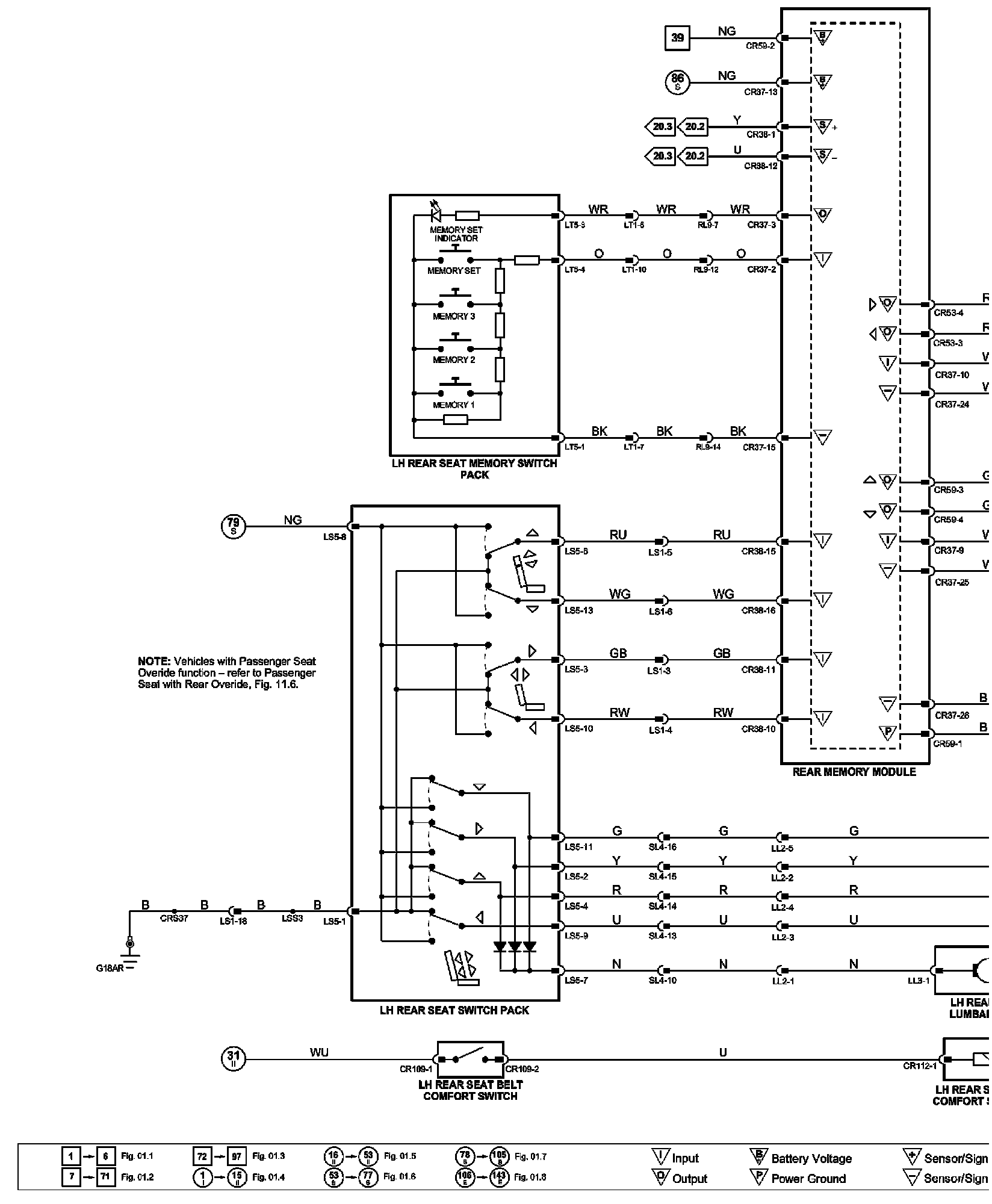

Fig 11.7 (Powered Rear Seats: LH Seat)

�Y�NDiagram Figure 11.7:



Diagram Data Sheet 11.7 (Part 1):



Diagram Data Sheet 11.7 (Part 2):
