Fig 16.2 (Telephone System (Except Japan))

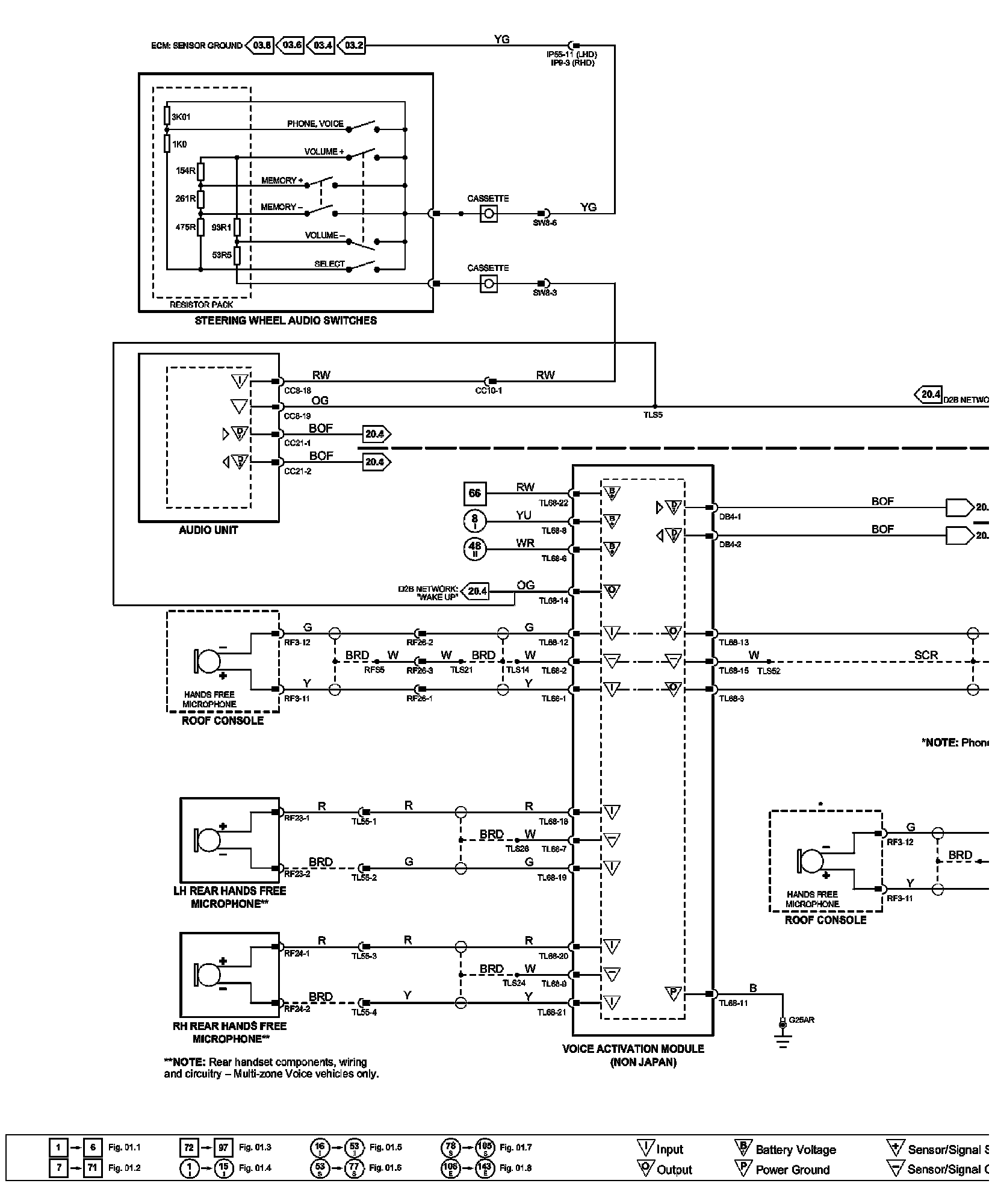

@Ԙ>Diagram Figure 16.2:

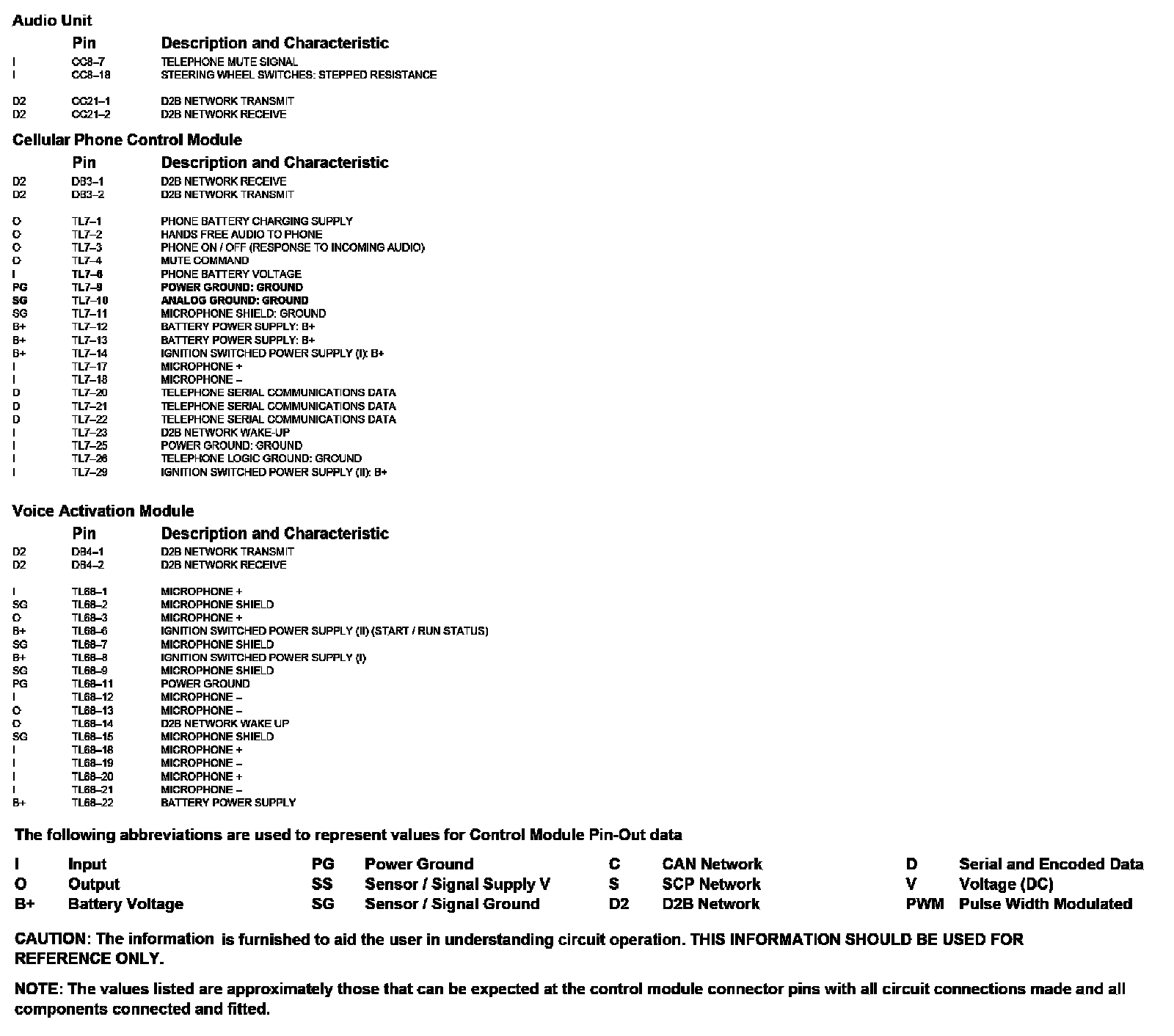

Diagram Data Sheet 16.2 (Part 1):

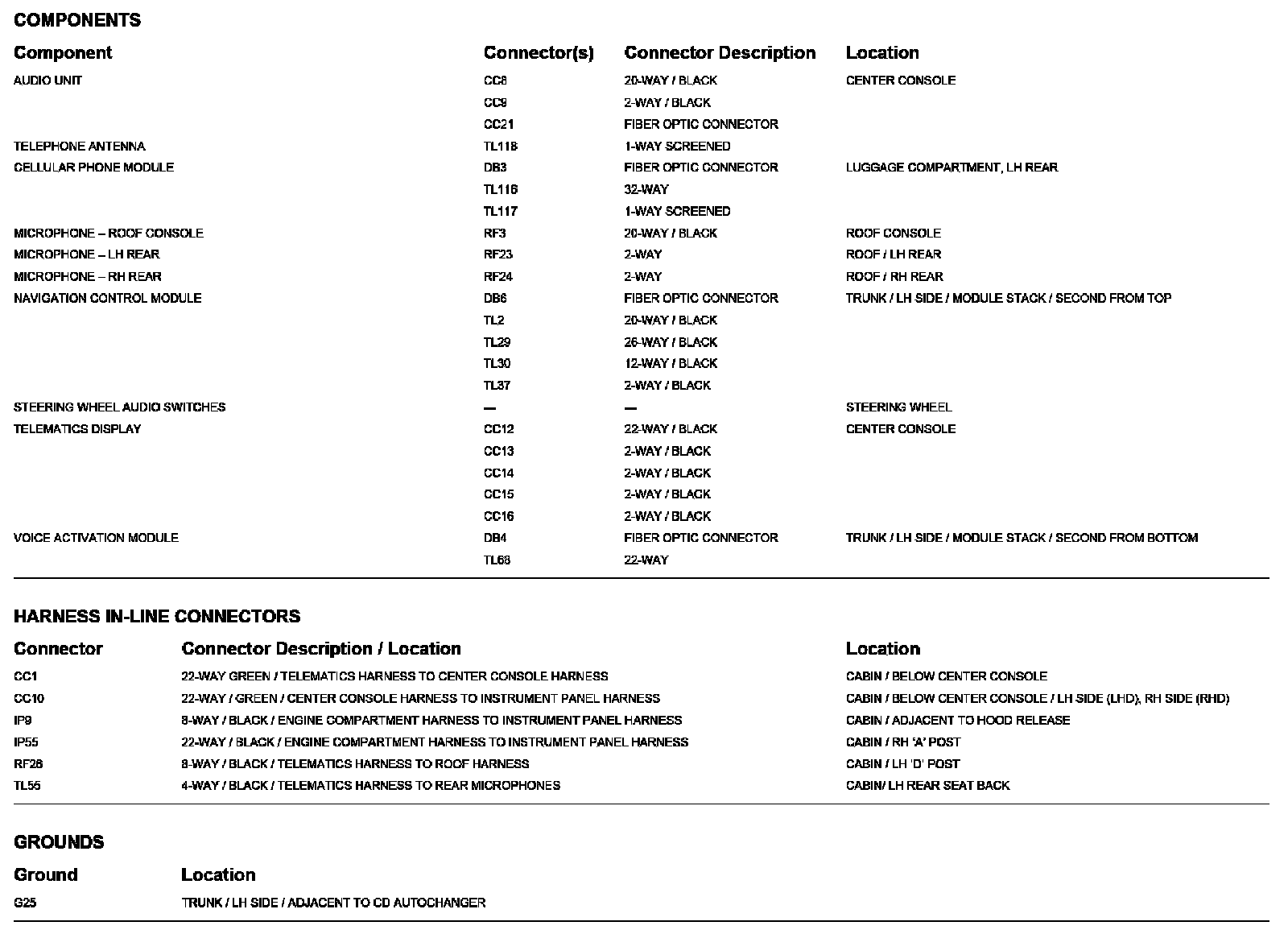

Diagram Data Sheet 16.2 (Part 2):
