Fig 16.4 (Navigation System With Television: (Except Japan))
Fig 16.4 (Navigation System With Television: (Except Japan))

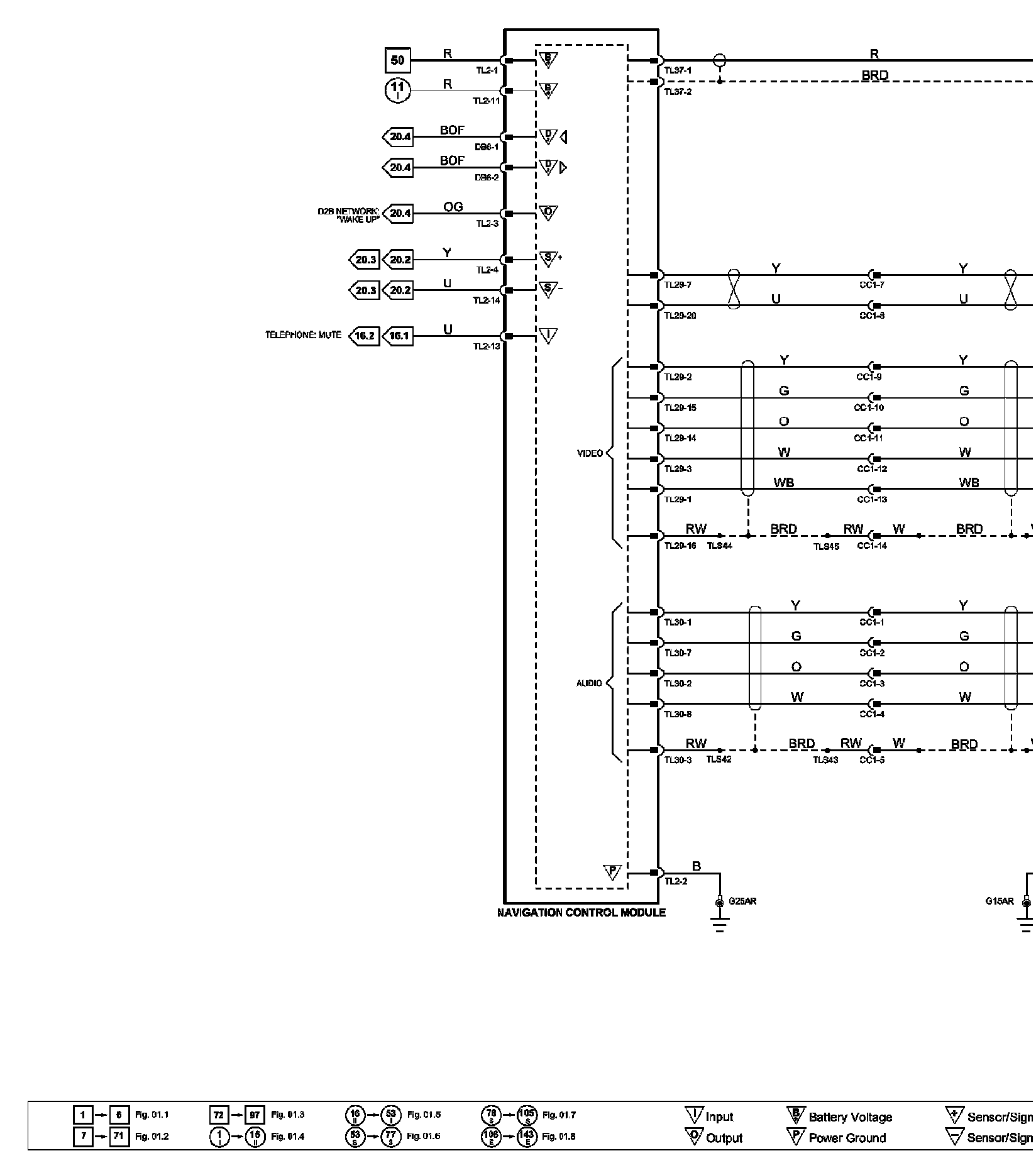

EW8@Diagram Figure 16.4:

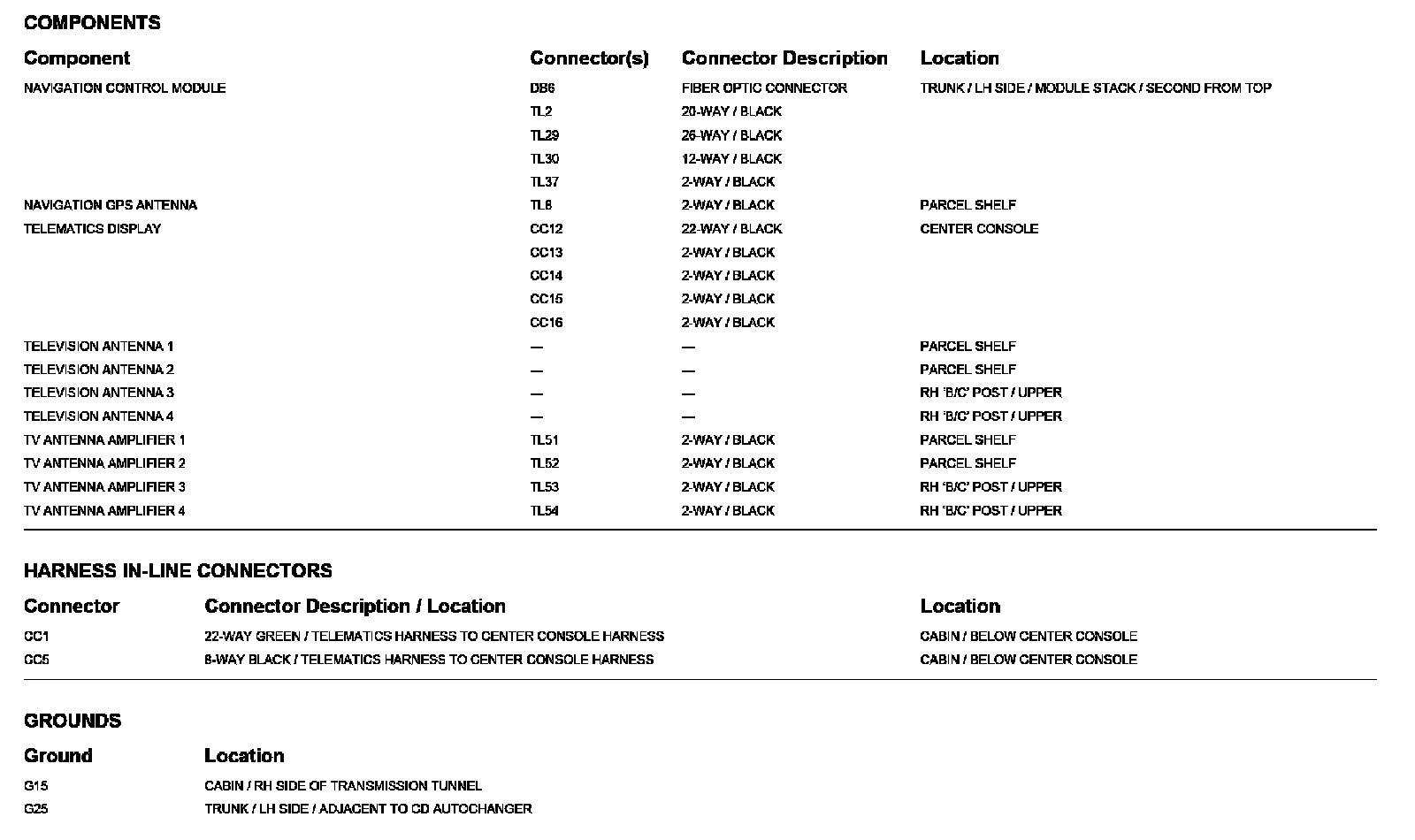

Diagram Data Sheet 16.4:
