Fig 19.1 (Ancillaries: Part 1)
Fig 19.1 (Ancillaries: Part 1)
��3Diagram Figure 19.1:

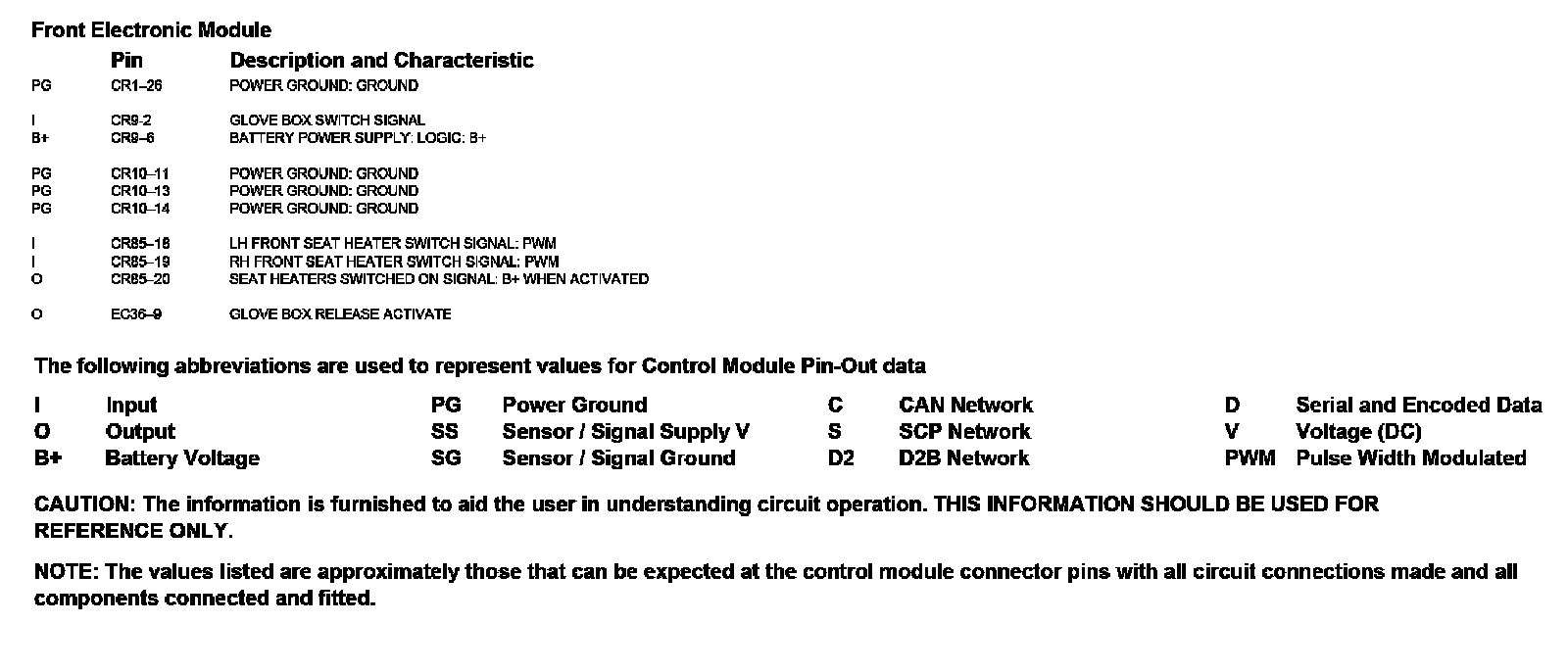

Diagram Data Sheet 19.1 (Part 1):

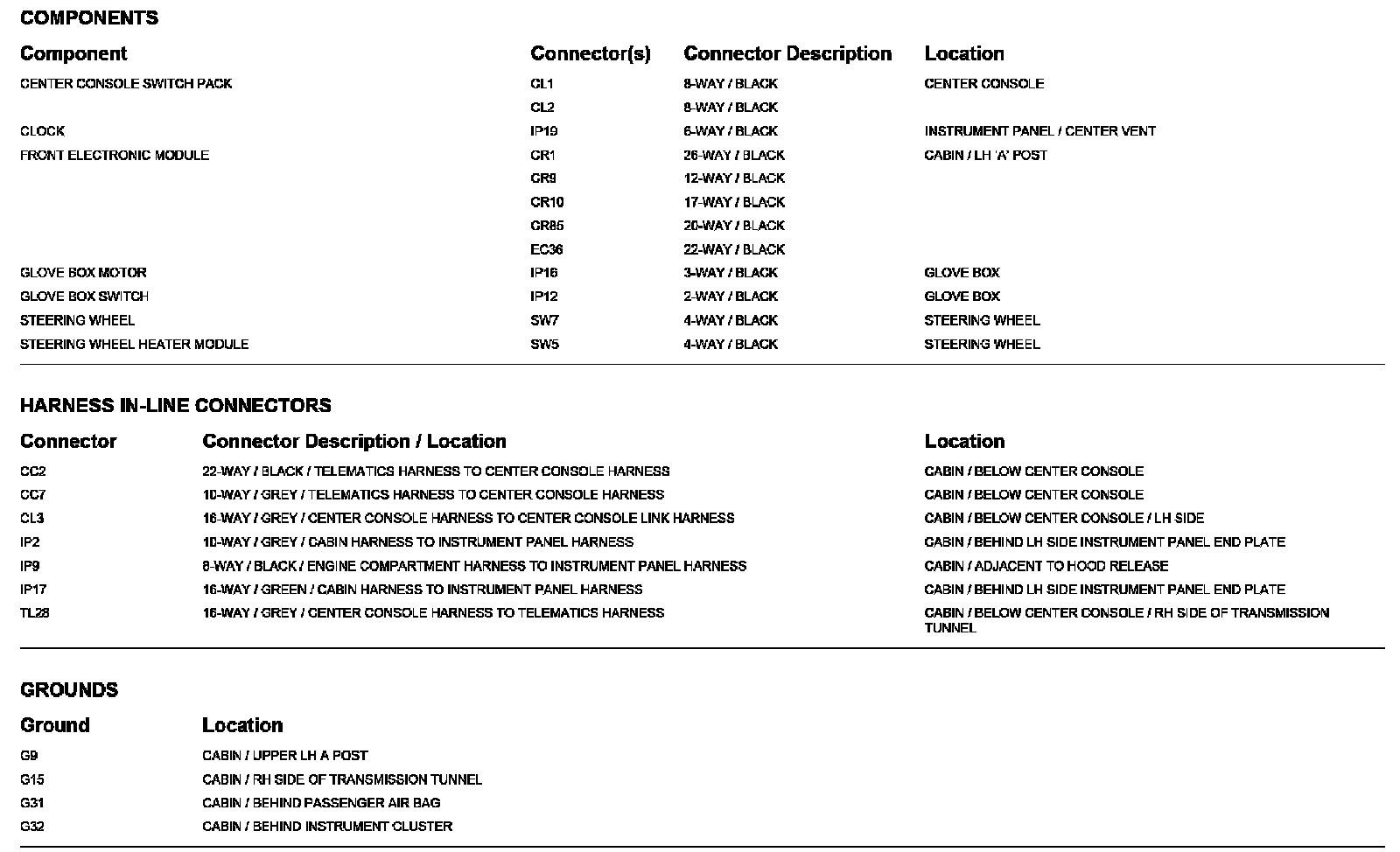

Diagram Data Sheet 19.1 (Part 2):
