Supercharger: Service and Repair

Supercharger (18.50.15)

Removal
1. Remove the cover and disconnect the battery ground cable.
2. Raise and support the vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

3. Remove the coolant manifold.
4. Remove the throttle body elbow.
5. Remove the supercharger outlet pipe.
6. Disconnect the charge air cooler, coolant hose.

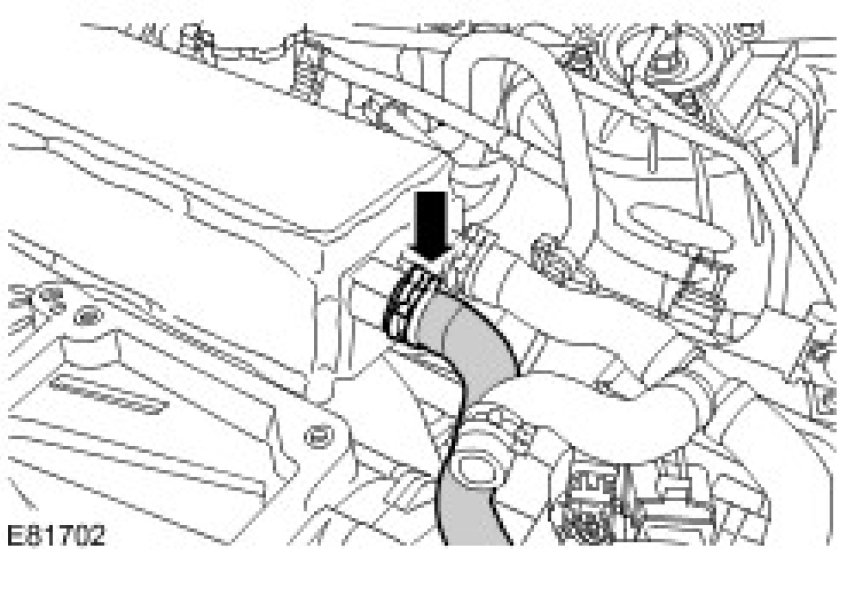

- Release the clip.







7. Remove the supercharger.

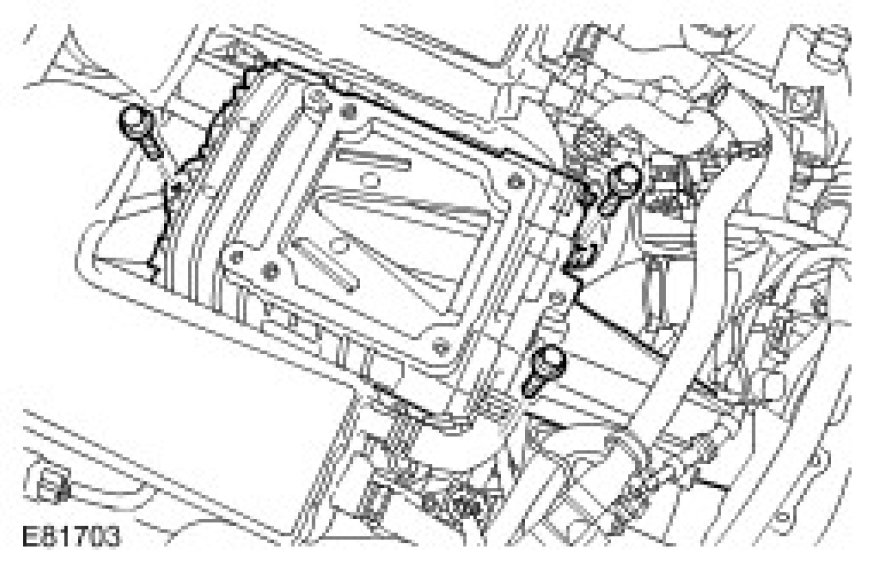

- Remove the 3 bolts.

NOTE: This step requires the aid of another technician.







Installation
1. Install the supercharger.
- Clean the component mating faces.
- Clean the locating dowels.
- Tighten the bolts to 21 Nm (15 lb.ft).
2. Connect the charge air cooler, coolant hose.
- Secure with the clip.
3. Install the supercharger outlet pipe.
4. Install the throttle body elbow.
5. Install the coolant manifold.
6. Connect the battery ground cable and install the cover.
7. Refill and bleed the cooling system.
