Home >> Jaguar >> 2008 >> XK (X150) V8-4.2L >> Repair and Diagnosis >> Body and Frame >> Description and Operation >> Front End Service Panels

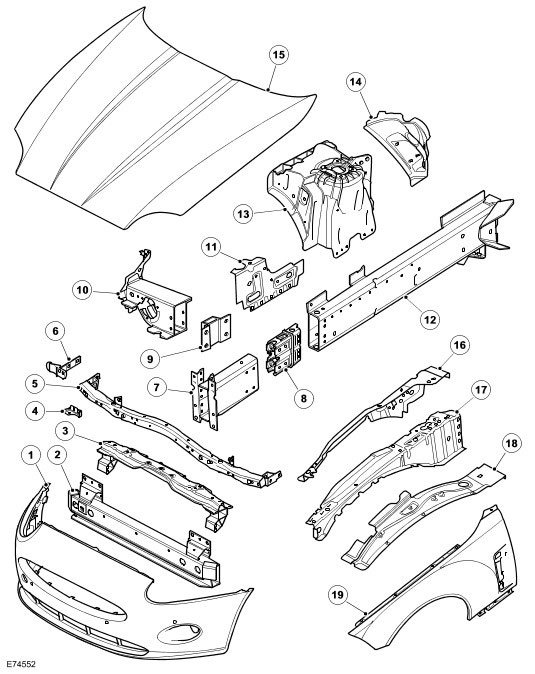

Front End Service Panels

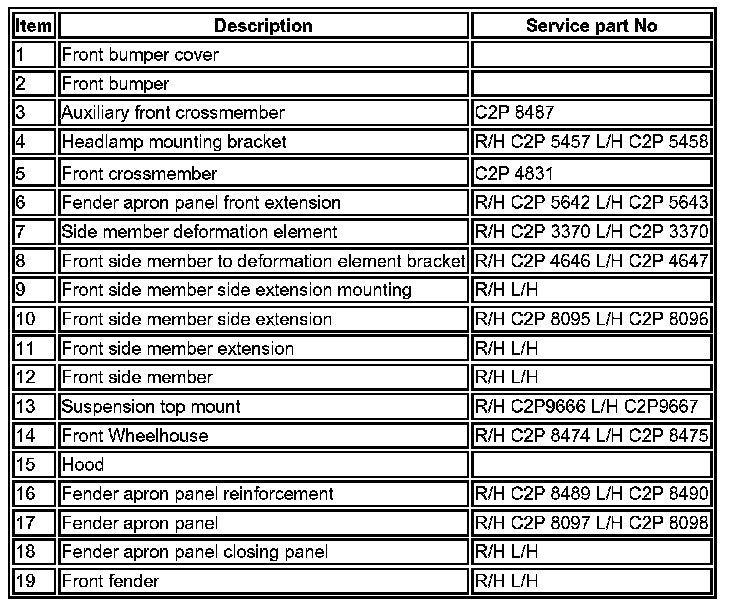

Front End Service Panels (Part 1):



Front End Service Panels (Part 2):
