Operation CHARM: Car repair manuals for everyone.
Home >> Jaguar >> 2008 >> XK (X150) V8-4.2L >> Repair and Diagnosis >> Diagrams >> Connectors >> PI002 - PI059 >> PI027

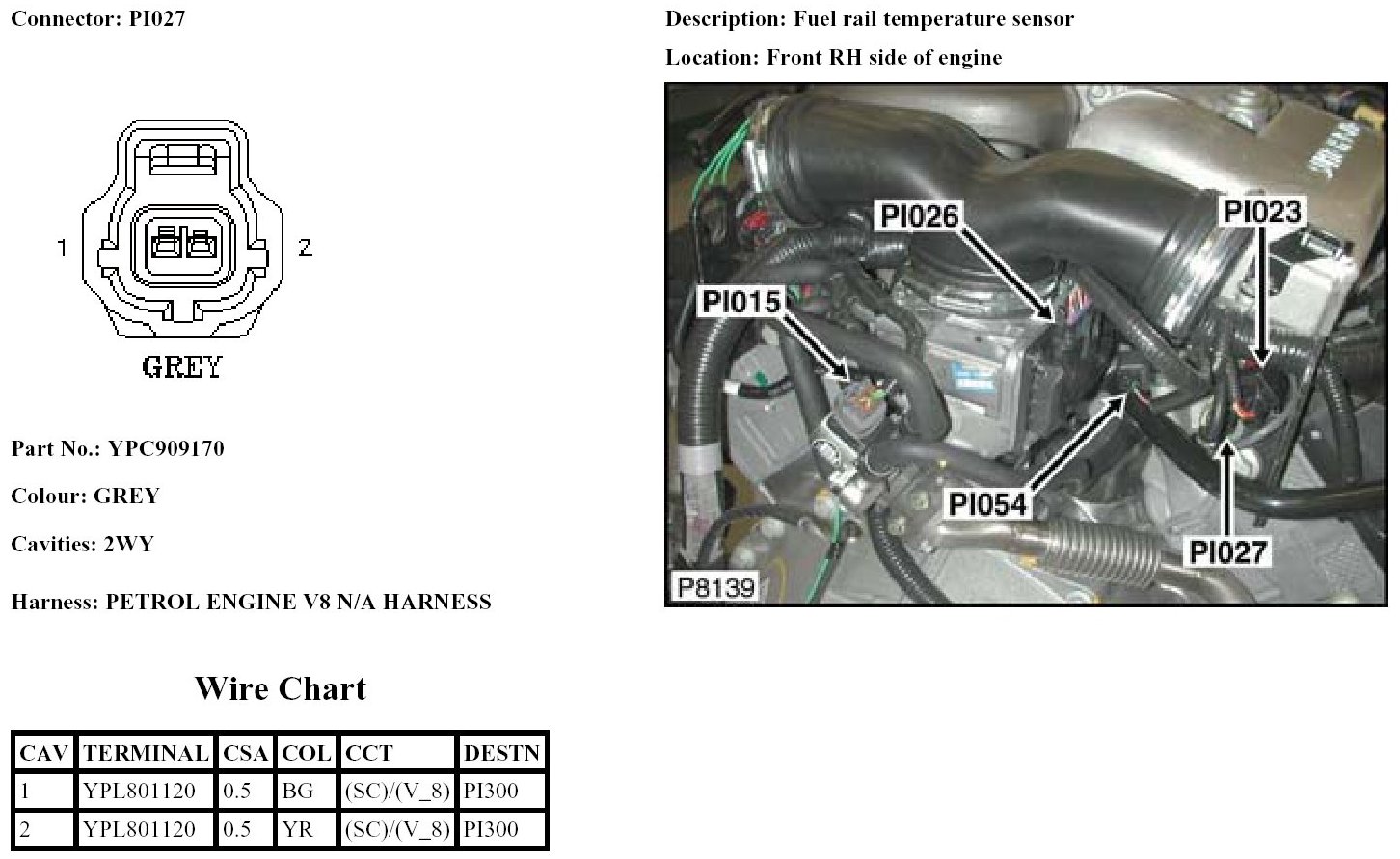

PI027

PI027:



PI027:
