Home >> Jaguar >> 2008 >> XK (X150) V8-4.2L >> Repair and Diagnosis >> Diagrams >> Connectors >> PI002 - PI059 >> PI059

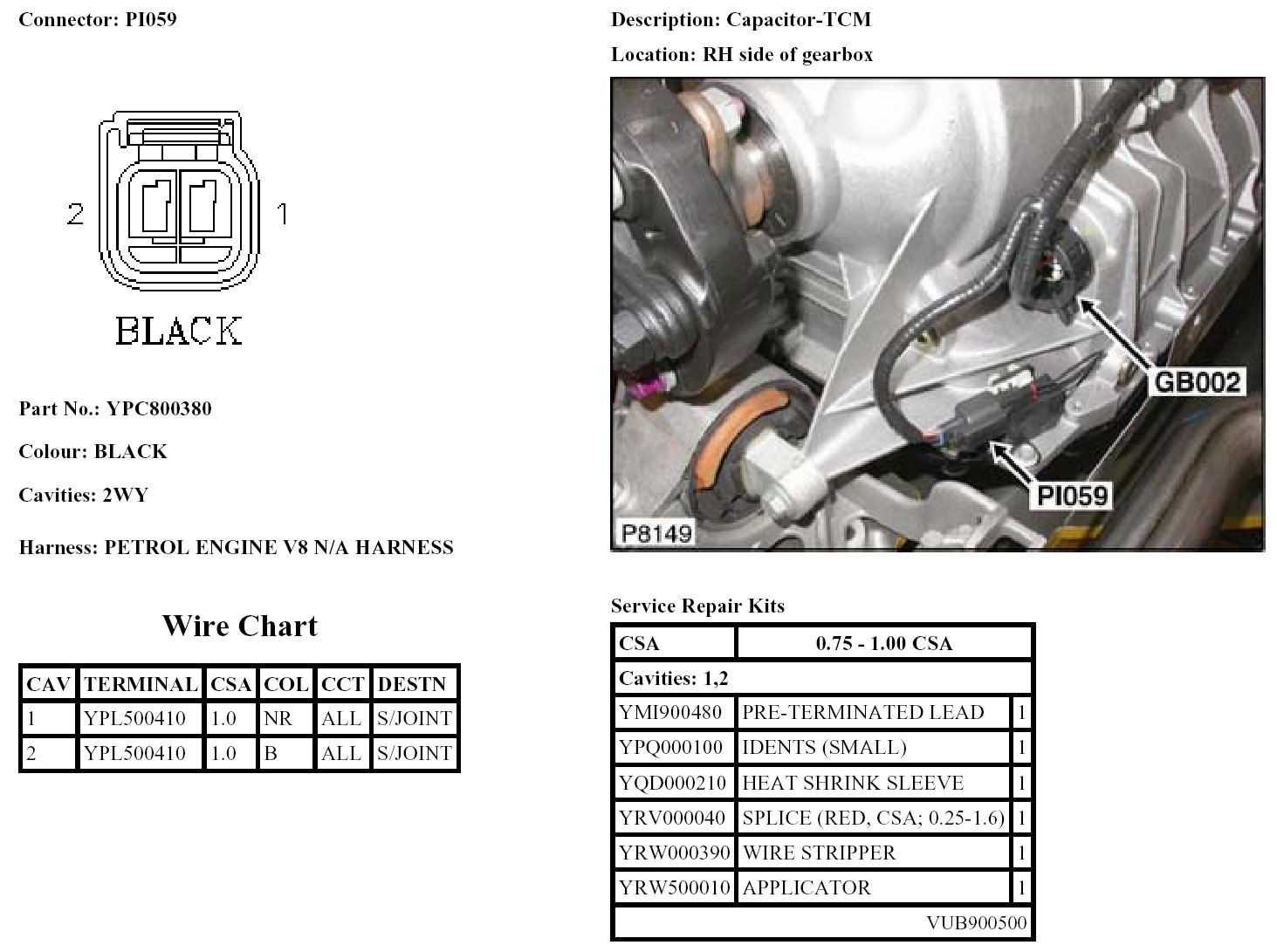

PI059

PI059:



PI059:
