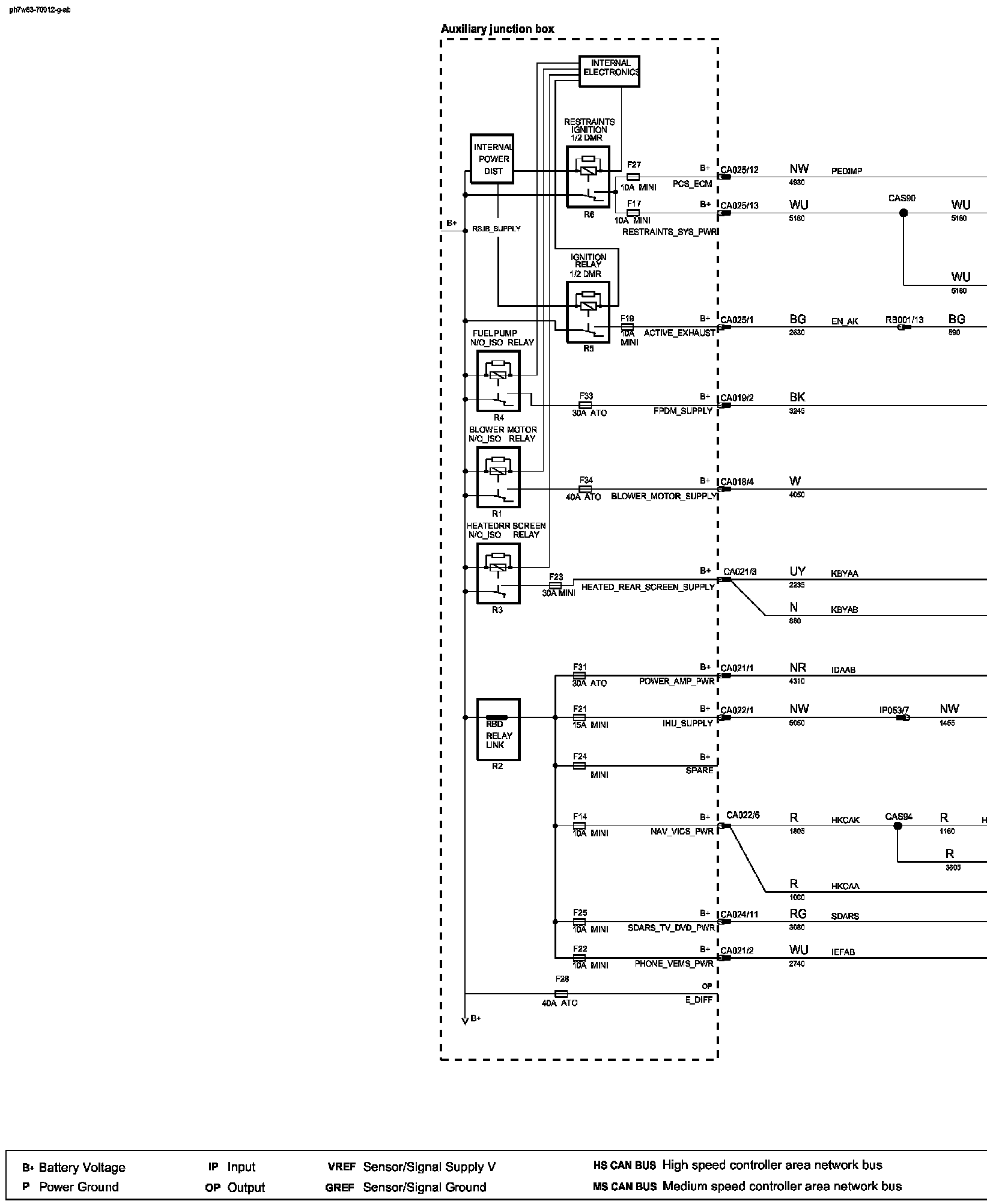

Fig 01.8 (Auxiliary Junction Box: Part 1)
Fig 01.8 (Auxiliary Junction Box: Part 1)
'ۼ1Diagram Figure 01.8:
