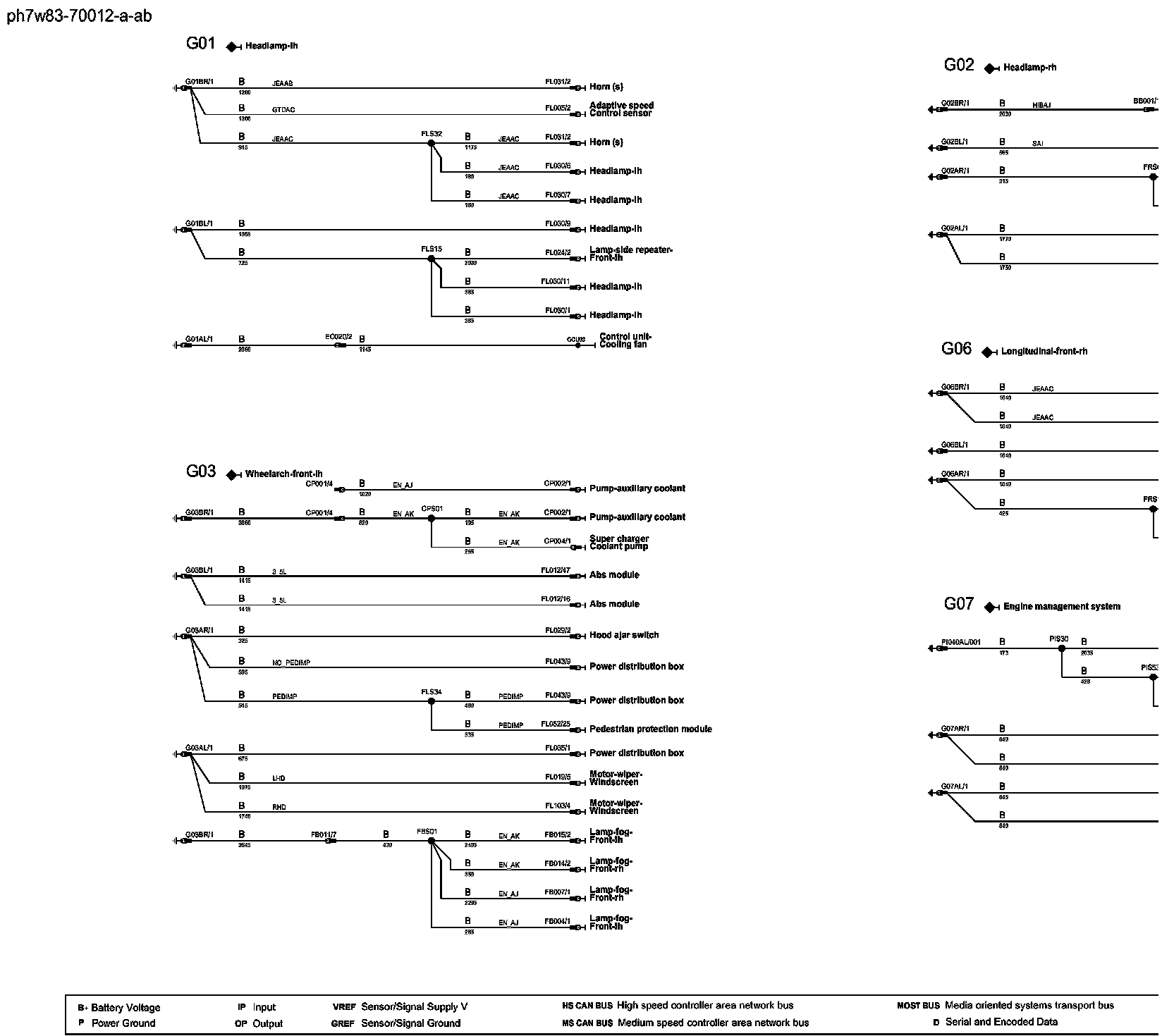

Fig 02.1 (Ground Distribution: Front 1)
Fig 02.1 (Ground Distribution: Front 1)
�A2Diagram Figure 02.1:
