Home >> Jaguar >> 2008 >> XK (X150) V8-4.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Figure Number >> Fig 11.1 (Steering Column Adjustment)

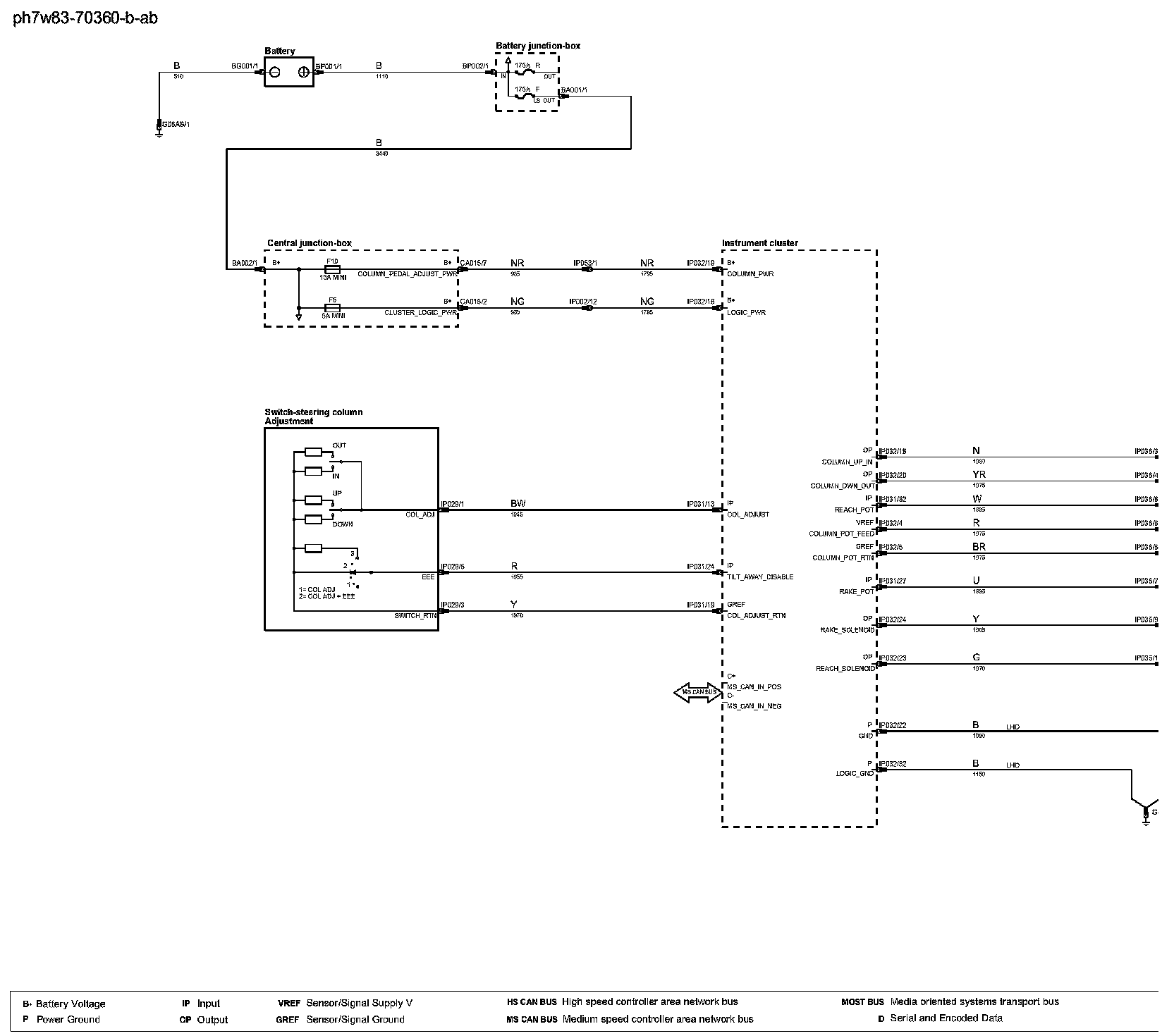

Fig 11.1 (Steering Column Adjustment)

c3Diagram Figure 11.1:
