Fog/Driving Lamp: Adjustments

Front Fog Lamp Adjustment
1. Align the beam setting equipment to one fog lamp.
2. Check the fog lamp beam alignment.

NOTE: The fog lamp beam should be set at 1.2% below the horizontal and parallel.

3. Turn the steering on to full lock for access.

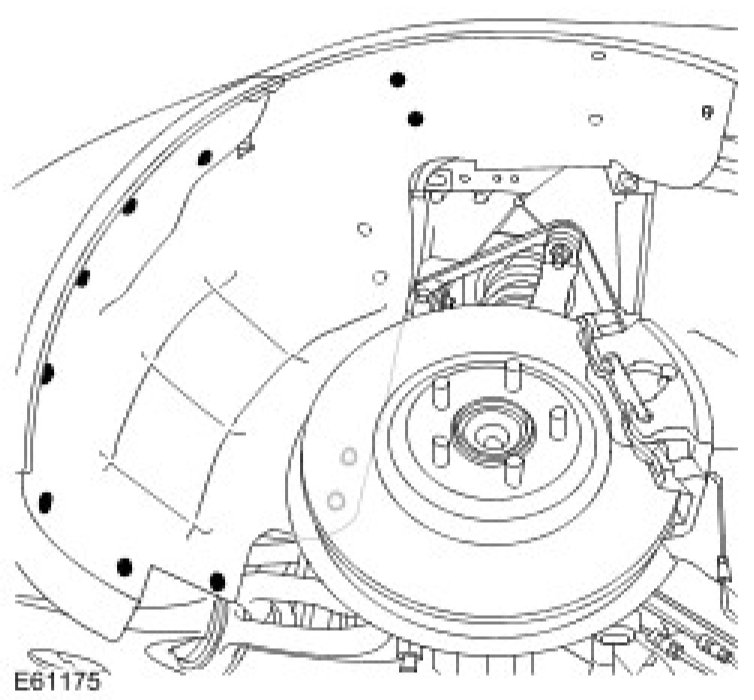

4. Release the front of the fender splash shield.
- Remove the 7 Torx bolts.
- Tie the splash shield aside.

NOTE: Wheel shown removed for clarity.

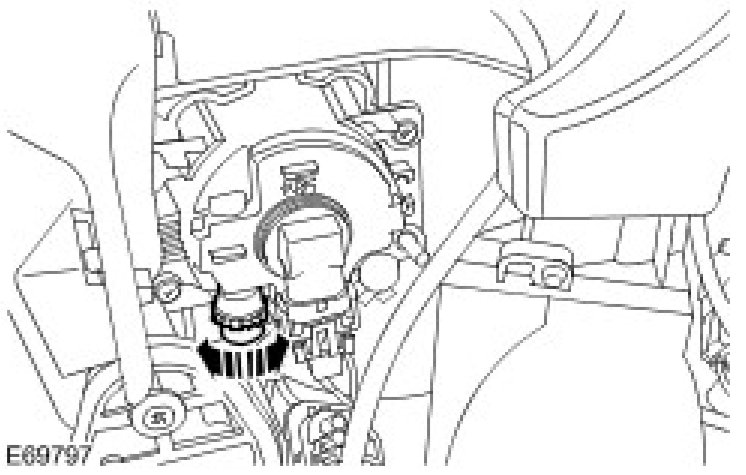

5. Adjust the fog lamp using the thumb wheel.







6. Install the fender splash shield.
- Tighten the Torx bolts.
7. To adjust the second fog lamp, repeat the above procedure.
