Initial Inspection and Diagnostic Overview

Inspection and Verification
1. Verify the customer's concern by carrying out a road test on a smooth road. If any vibrations are apparent, refer to Noise, Vibration and Harshness (NVH).
2. Visually inspect for obvious signs of damage and system integrity.

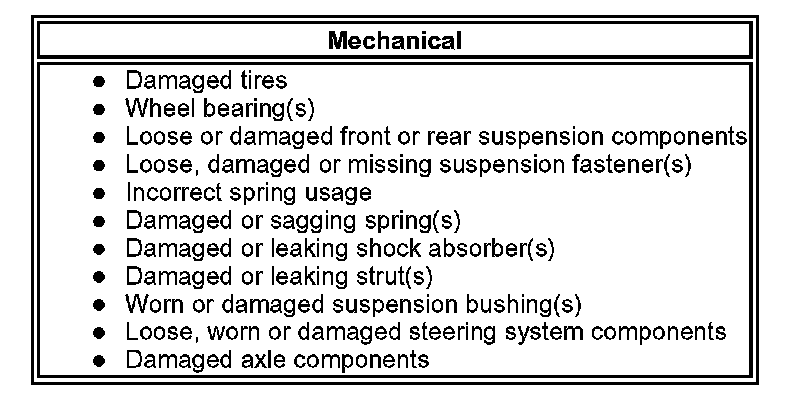

Visual Inspection Chart





1. If an obvious cause for an observed or reported condition is found, correct the cause (if possible) before proceeding to the next step.
2. If the fault is not visually evident, verify the symptom and refer to the following Symptom Chart.
