Front Disc Brake





Front Disc Brake

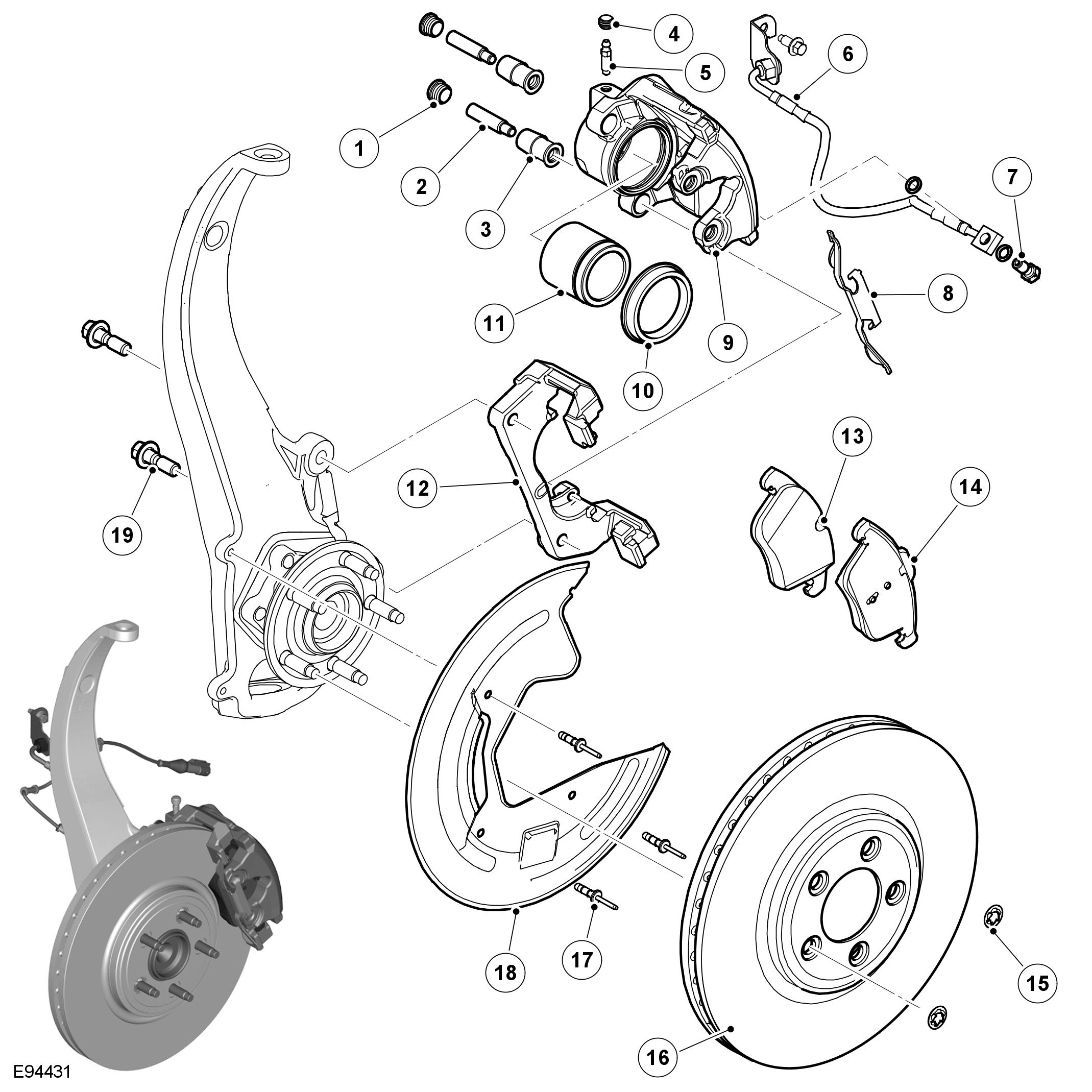

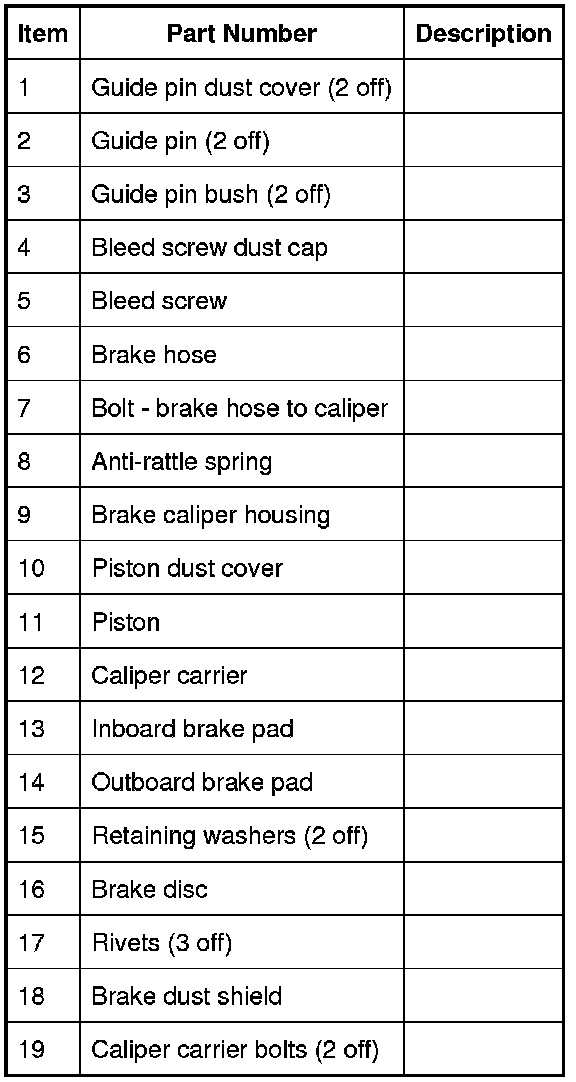

Component Location - Standard Brakes

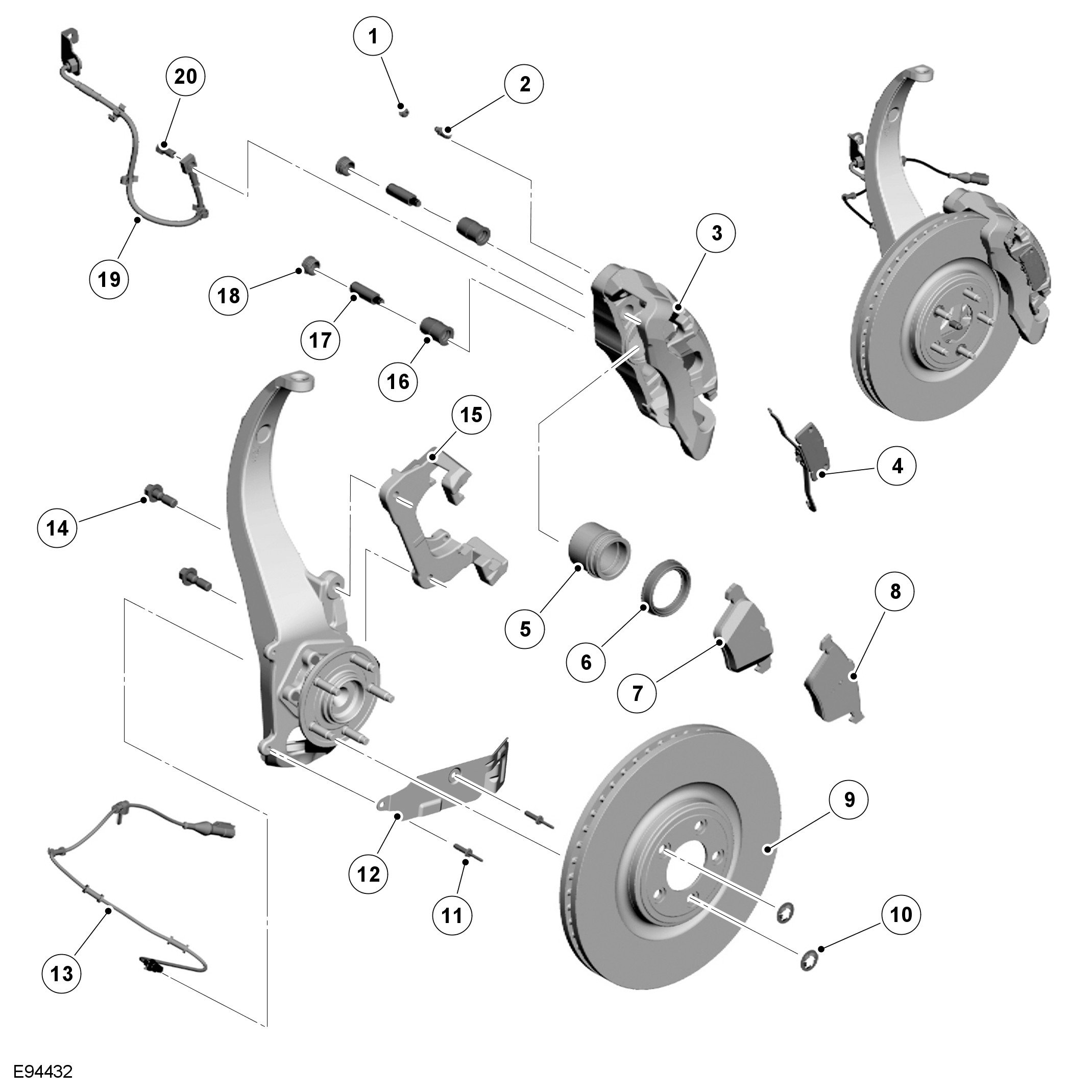

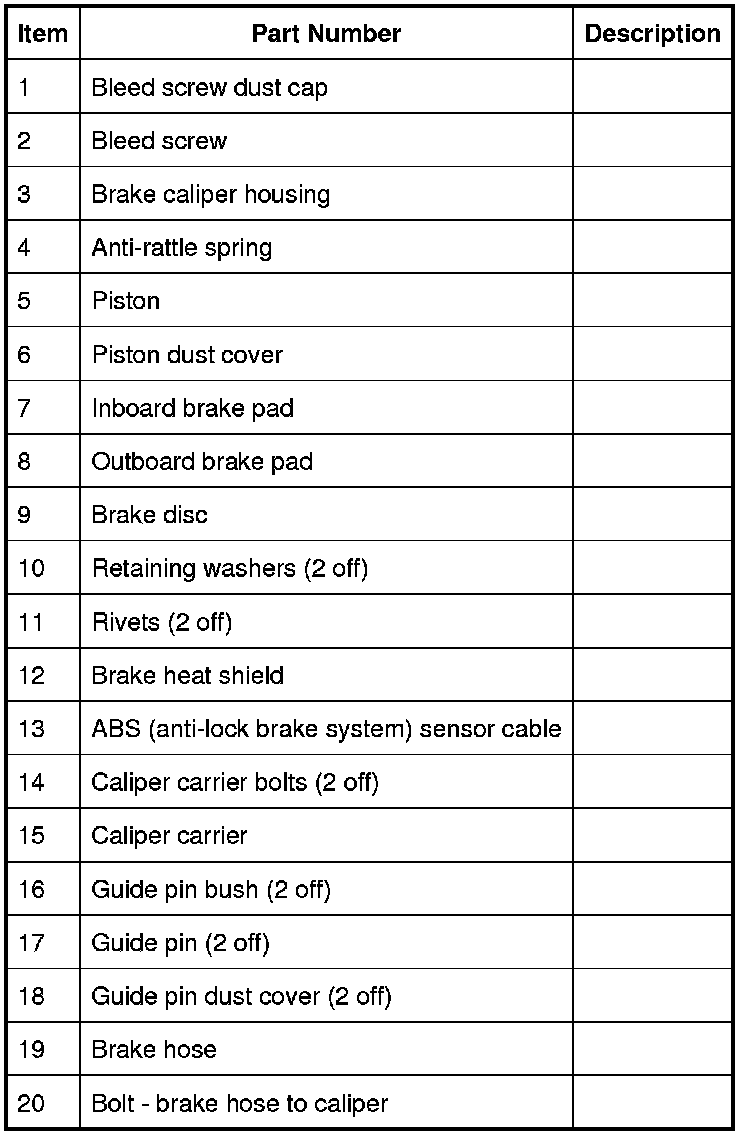

Component Location - Performance Brakes
