Home >> Jaguar >> 2009 >> XF (X250) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> C1BB01A - C11-L >> C11-H

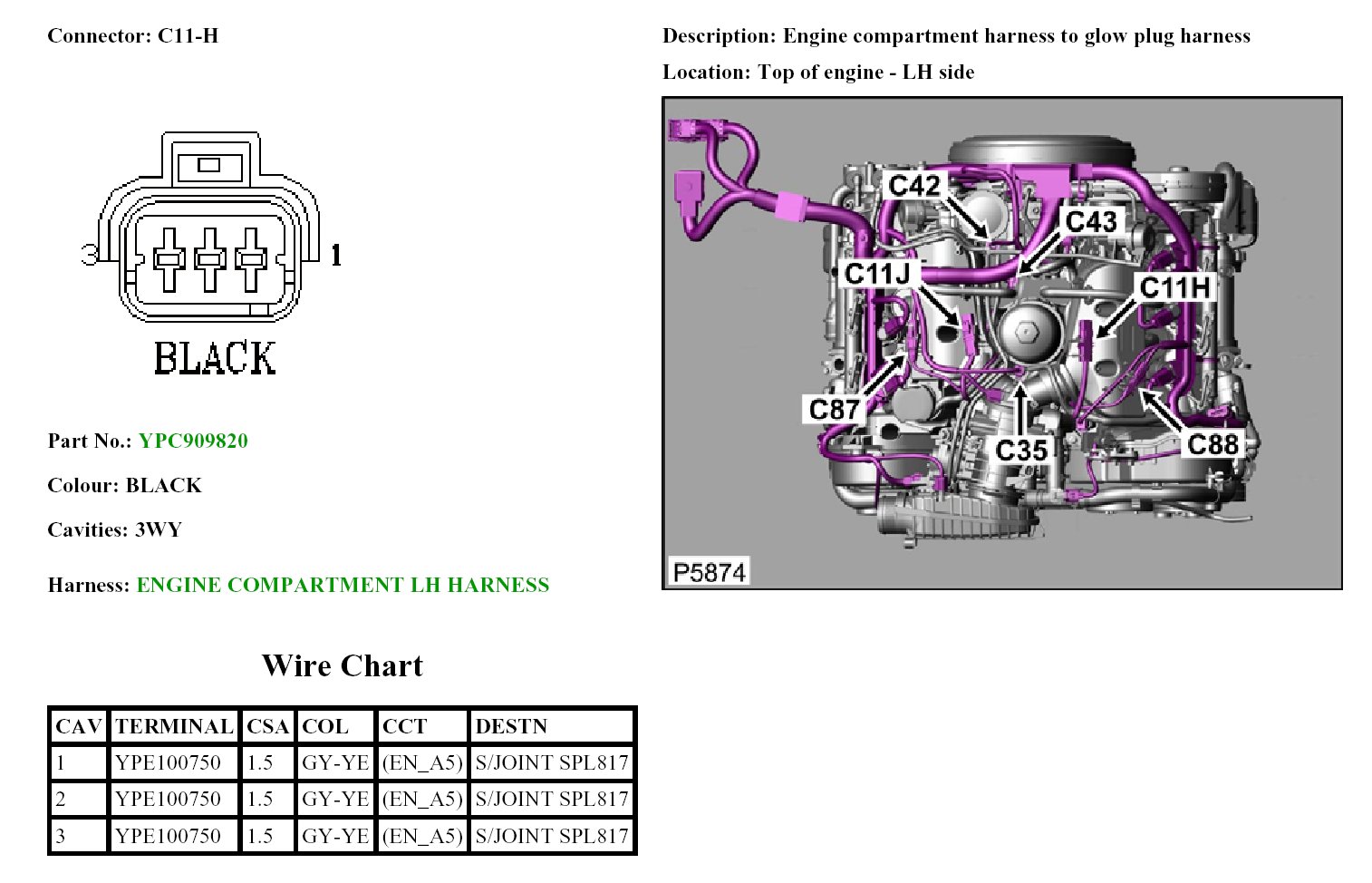

C11-H

C11-H

C11-H:
