XF (X250) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C1BB01A - C11-L
>>
C1DC12B
C1DC12B
C1DC12B

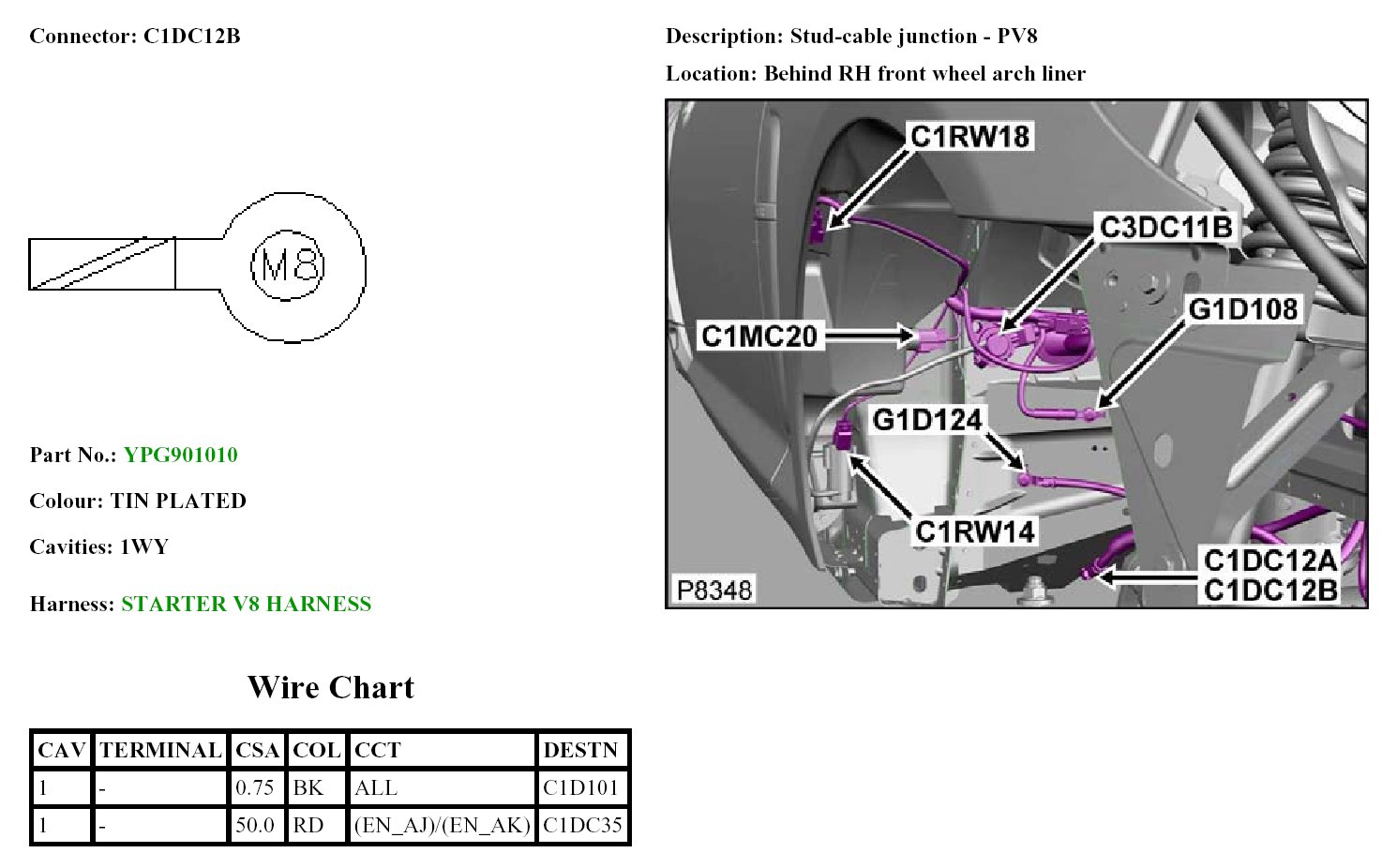

C1DC12B:
