Home >> Jaguar >> 2009 >> XF (X250) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connectors >> PI002 - PI311 >> PI009

PI009

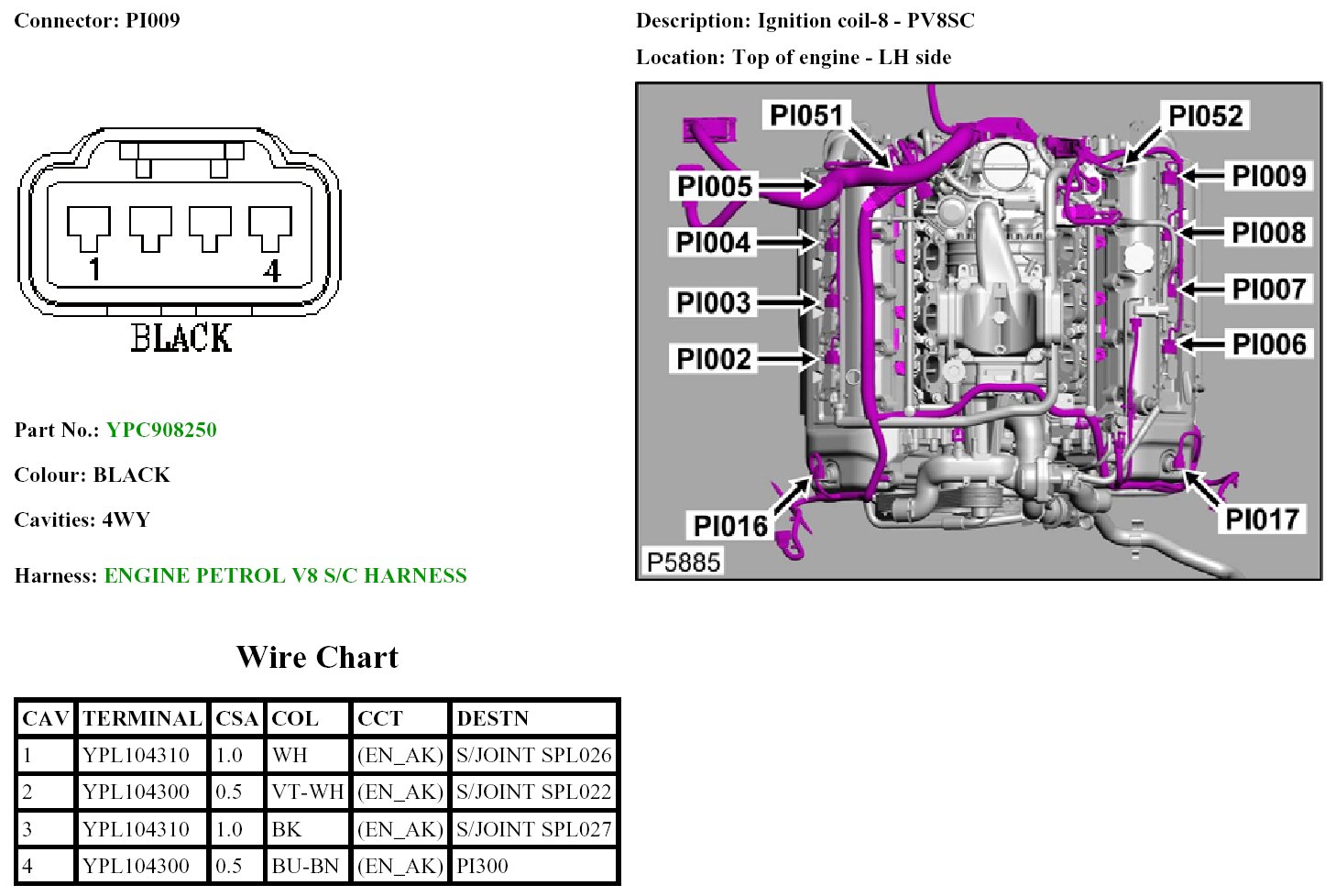

PI009 - PV8SC


PI009:
