Auxiliary Input / Output Jack, Entertainment System
>>

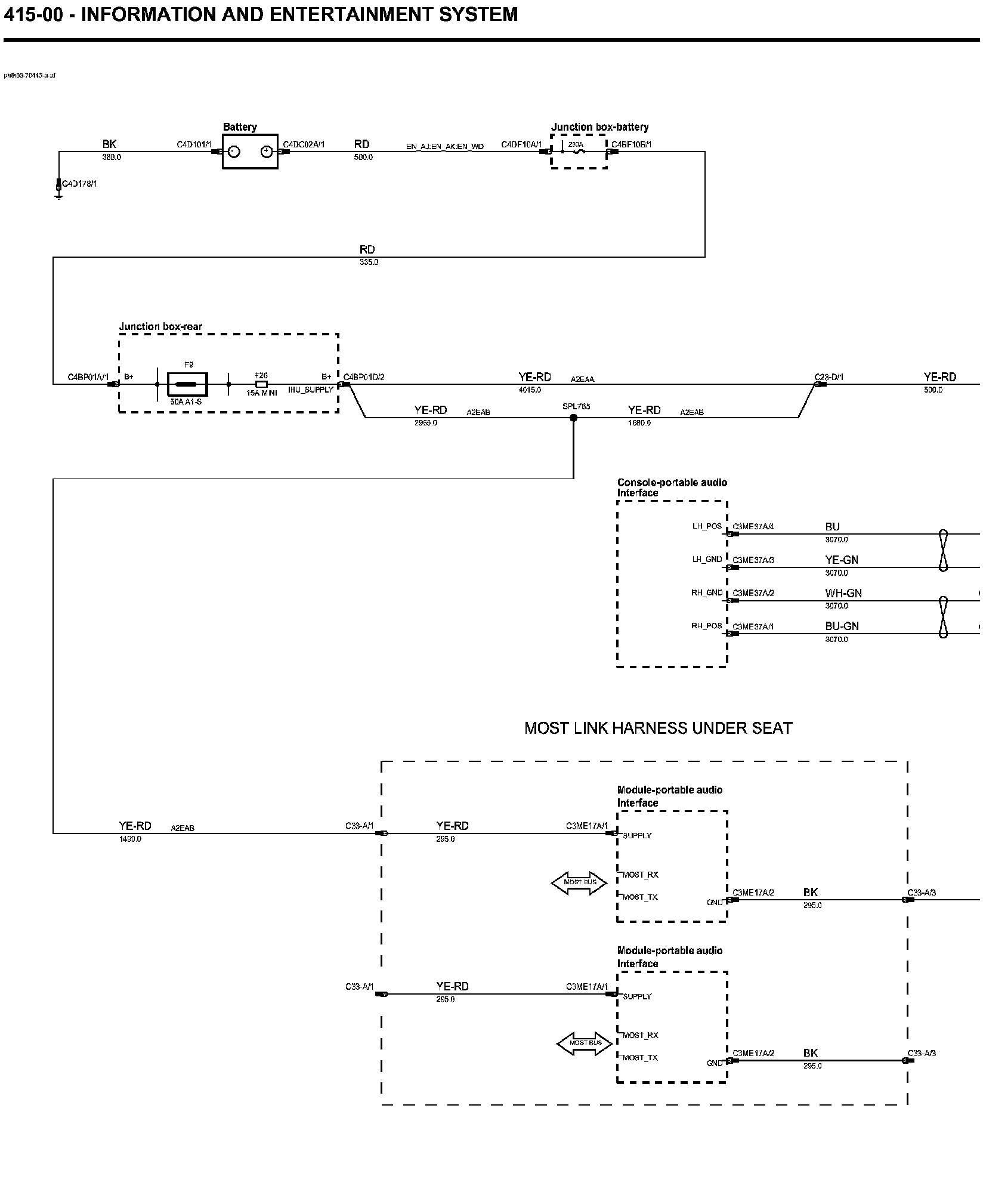

Portable Audio Interface - Part 1
Portable Audio Interface - Part 1
Portable Audio Interface - Part 1
[� ?:
