Fuse Block: Locations
Fuse Box Locations

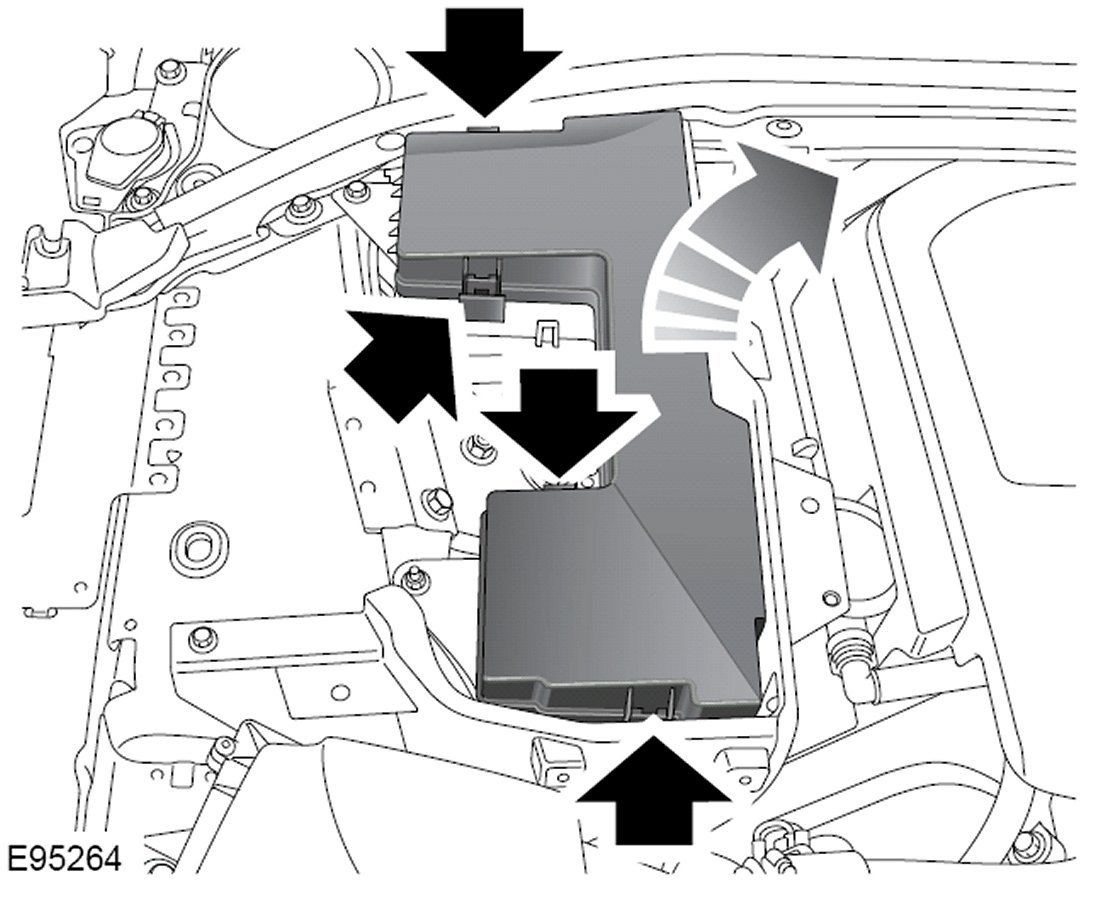

Engine Compartment 1:
Engine Compartment 2:

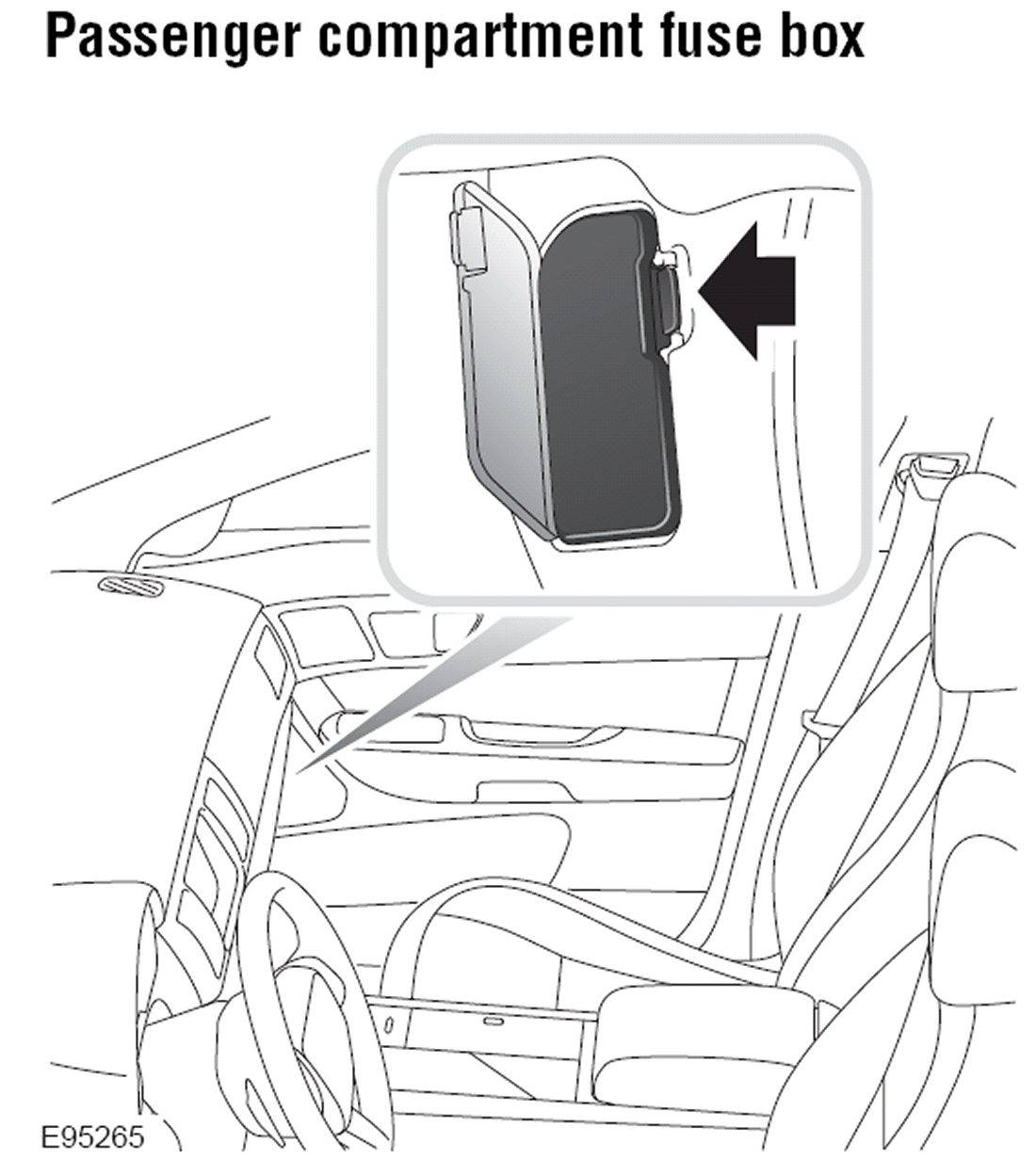

Passenger Compartment:
Luggage Compartment:
Fuse Box Layout

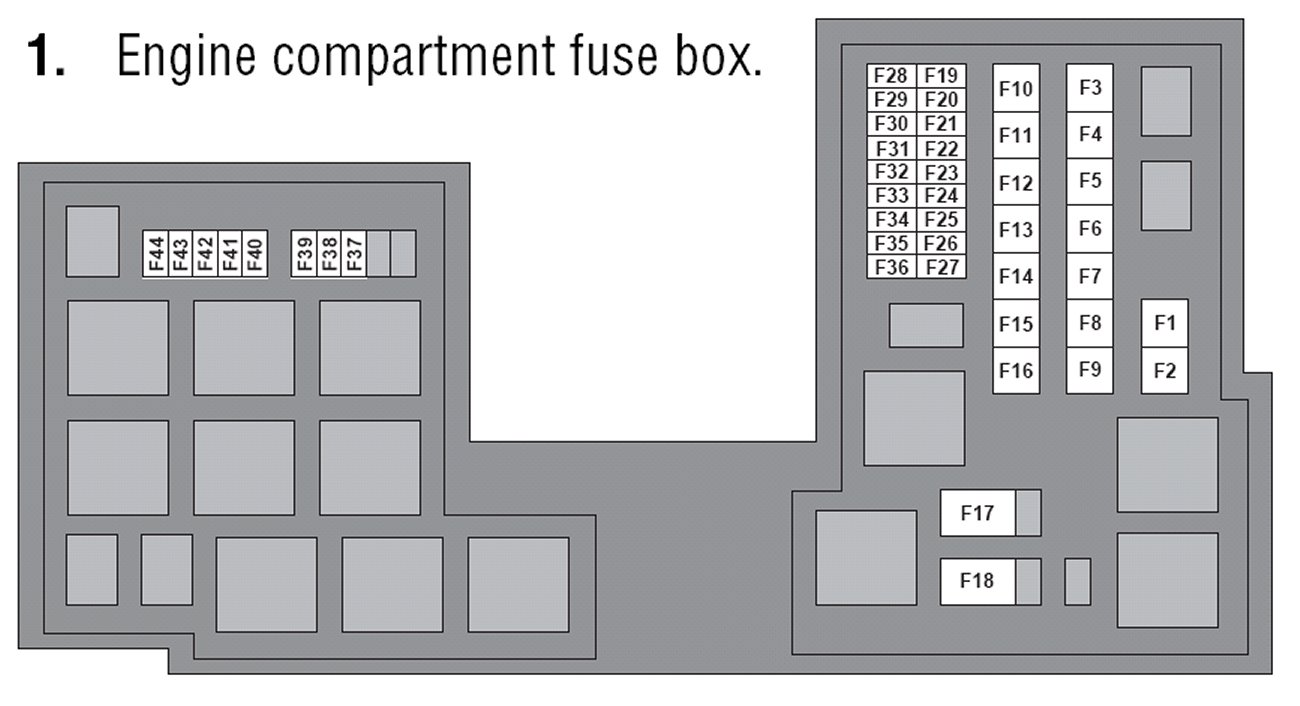

Engine Compartment:

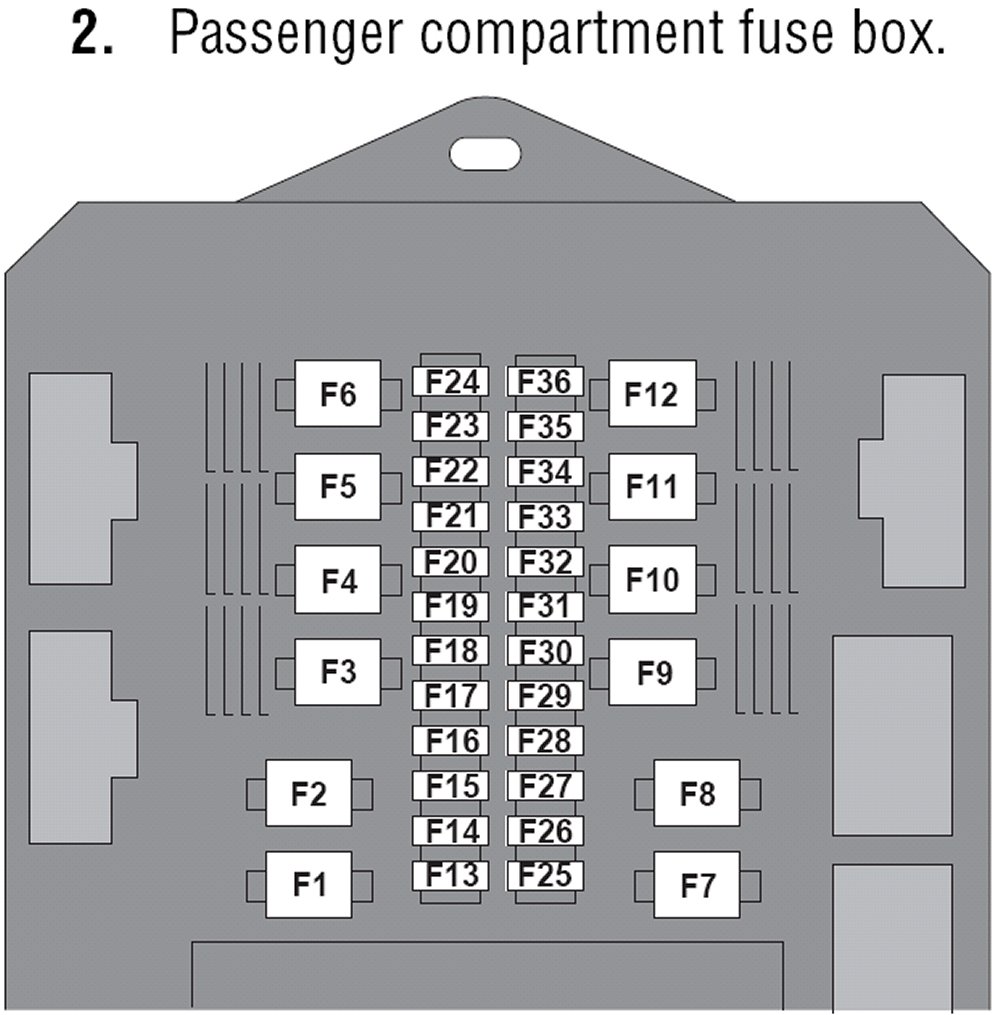

Passenger Compartment:
Luggage Compartment:

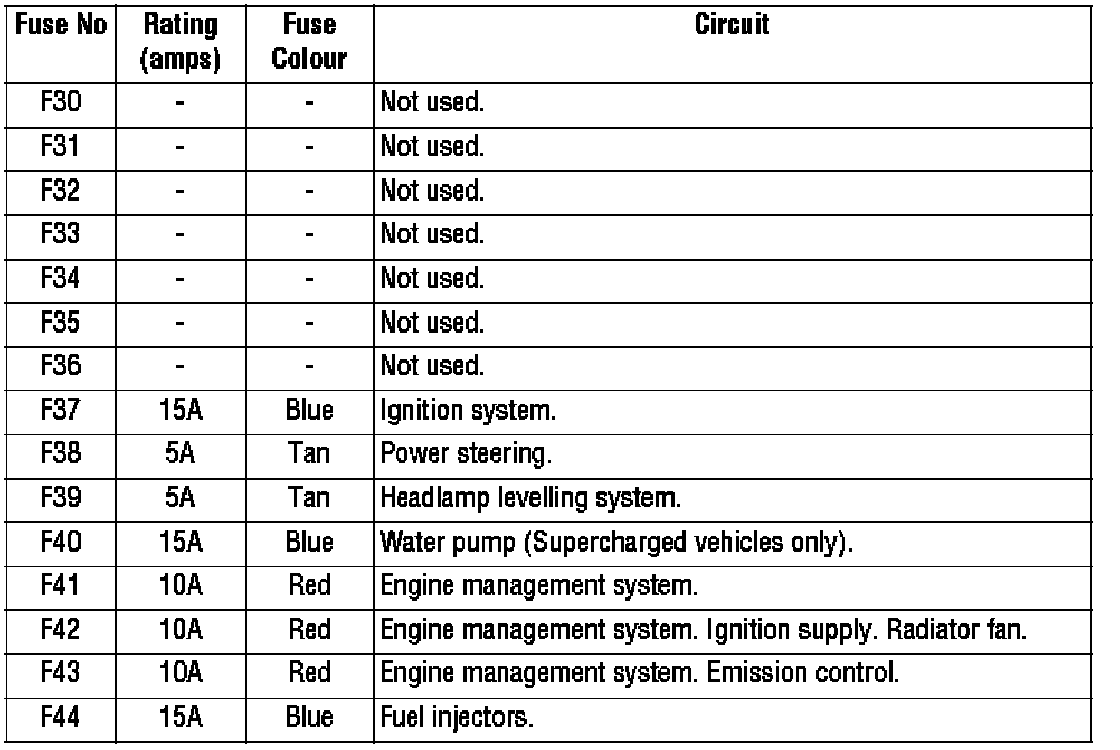

Fuse Assignments

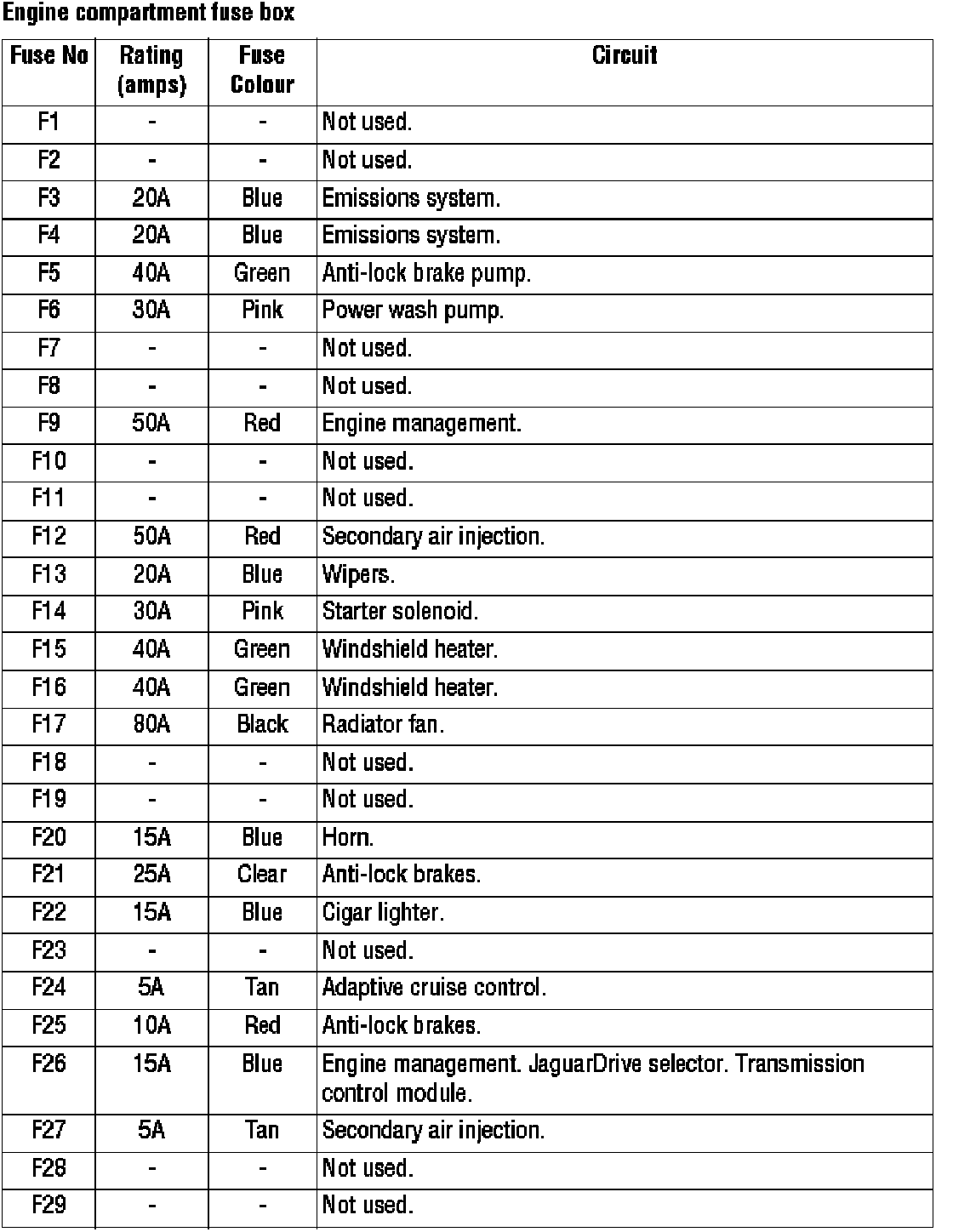

Engine Compartment 1:
Engine Compartment 2:

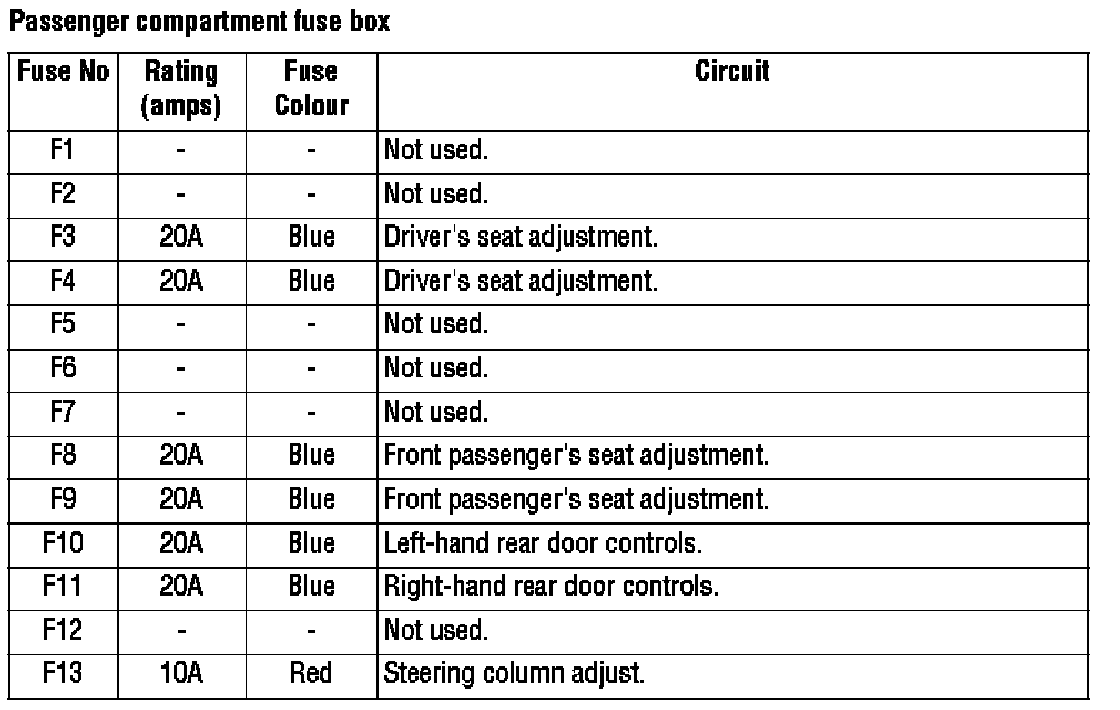

Passenger Compartment 1:

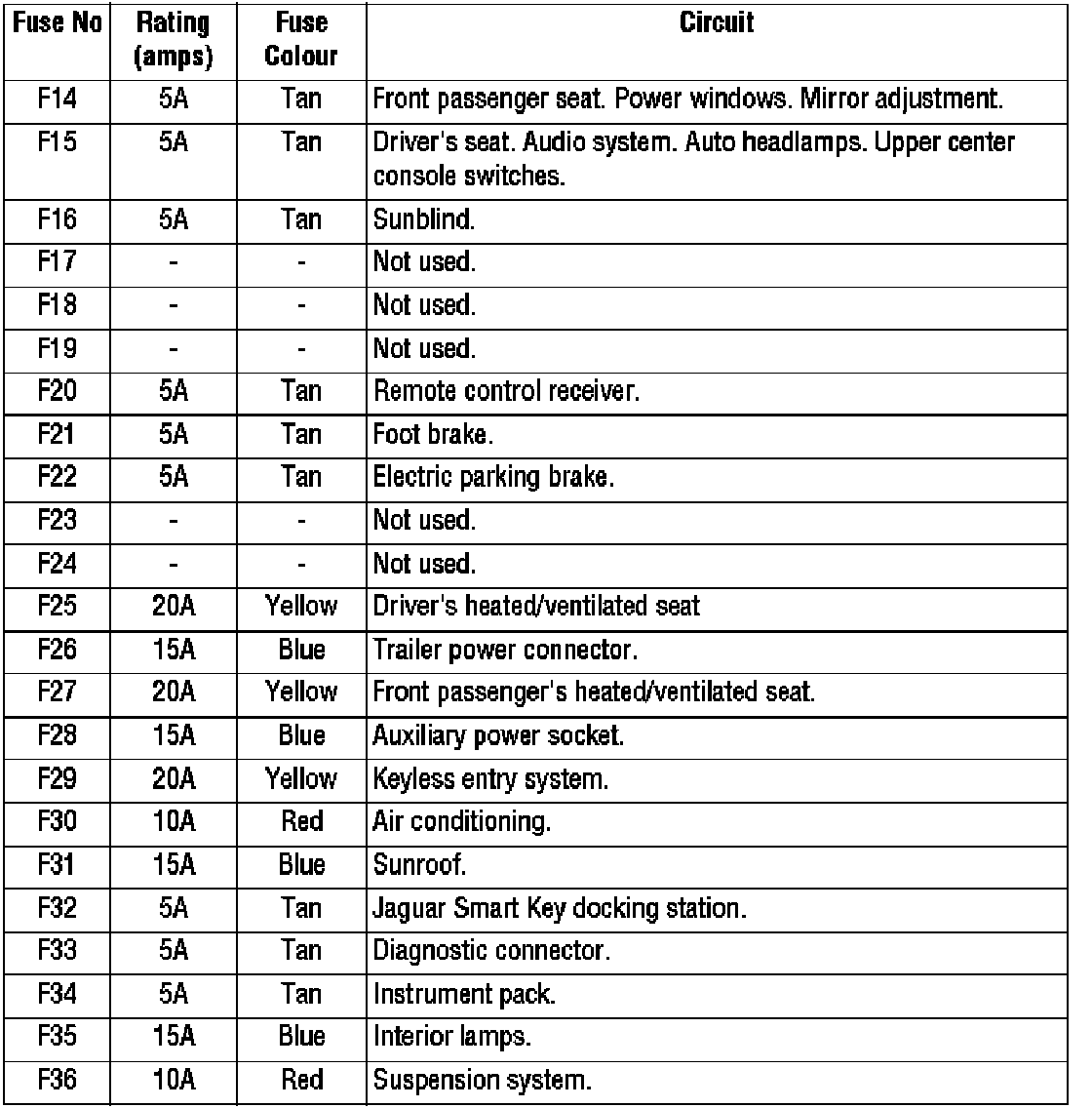

Passenger Compartment 2:

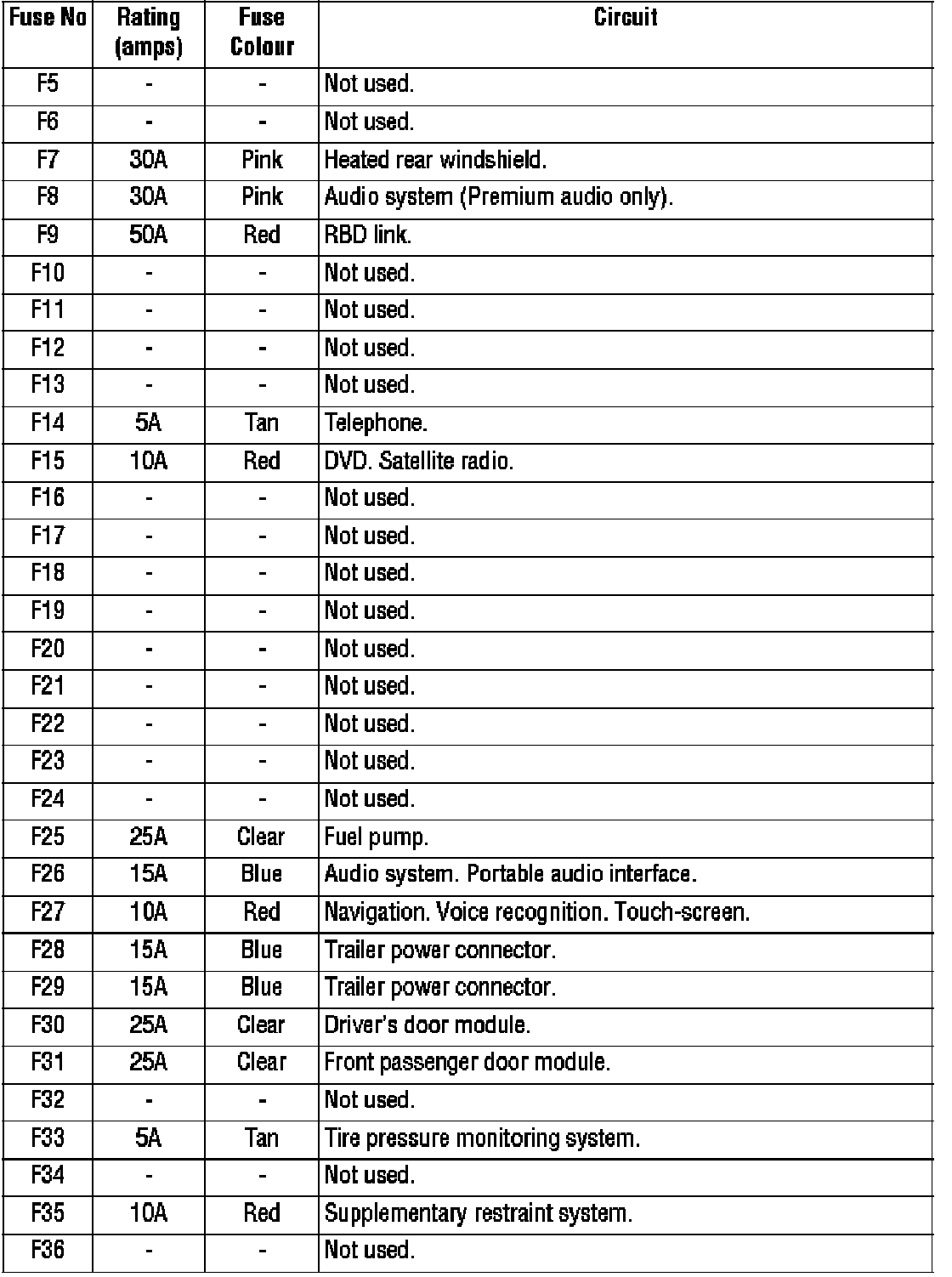

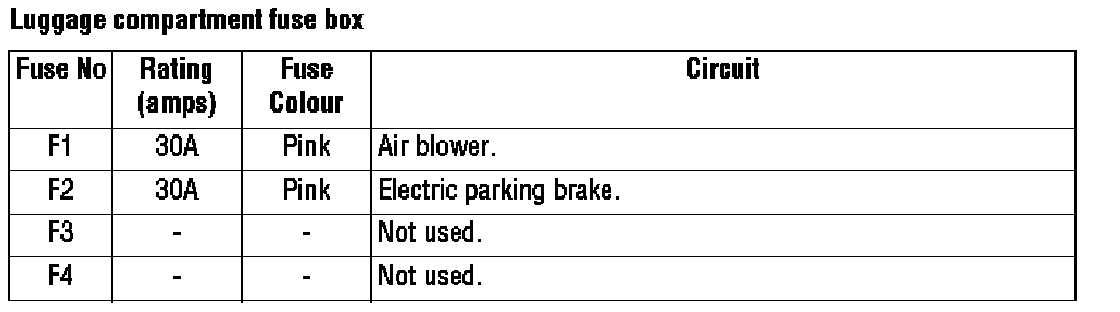

Luggage Compartment 1:
Luggage Compartment 2:
