Power Steering





Power Steering

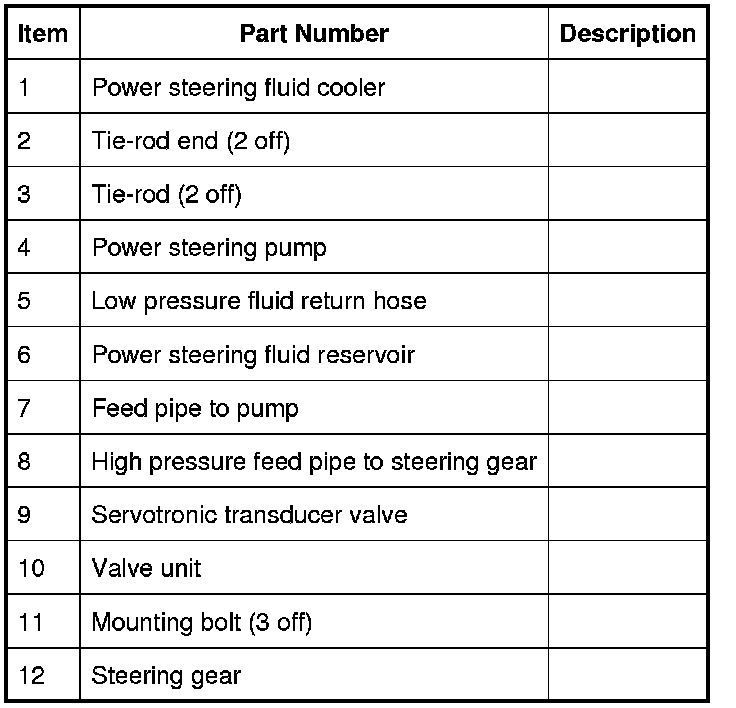

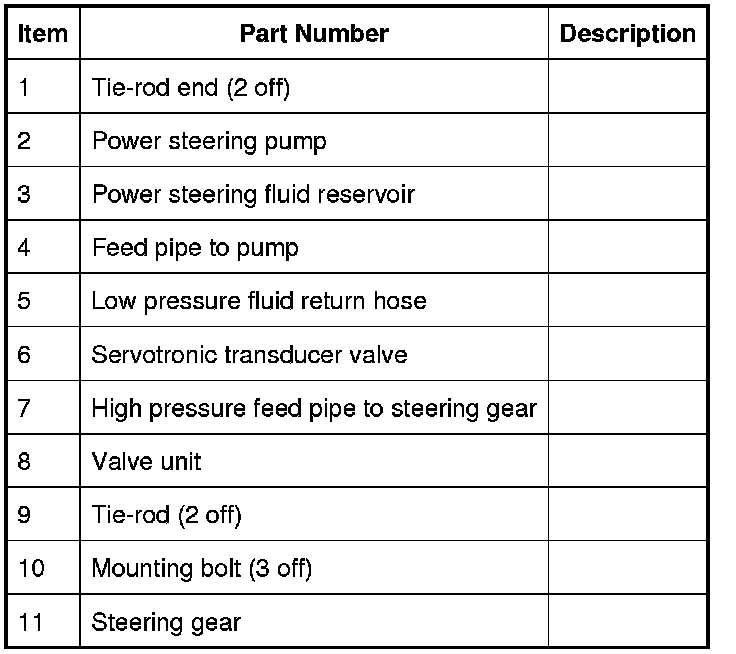

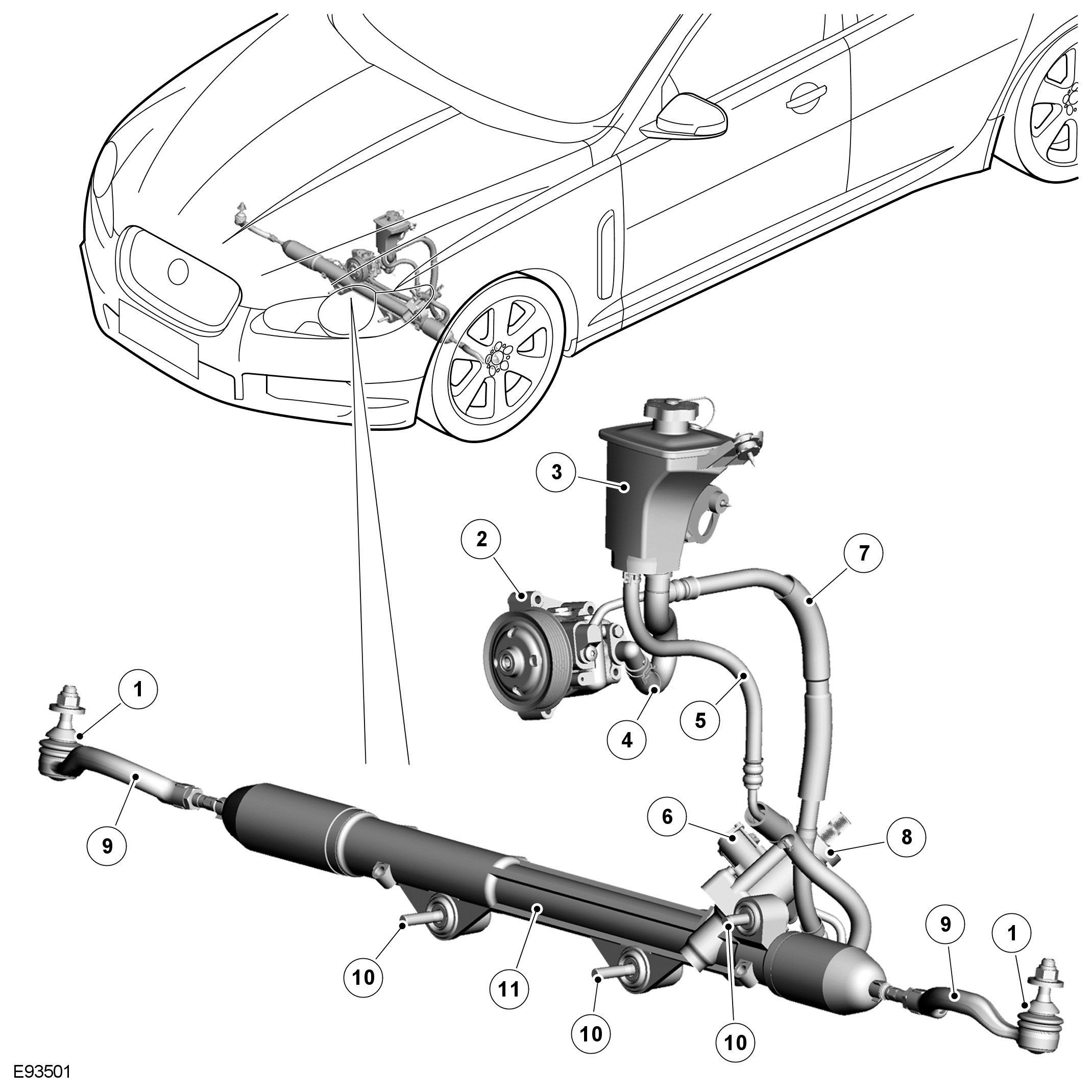

POWER STEERING - COMPONENT LOCATION 2.7L TdV6









POWER STEERING - COMPONENT LOCATION 3.0L V6

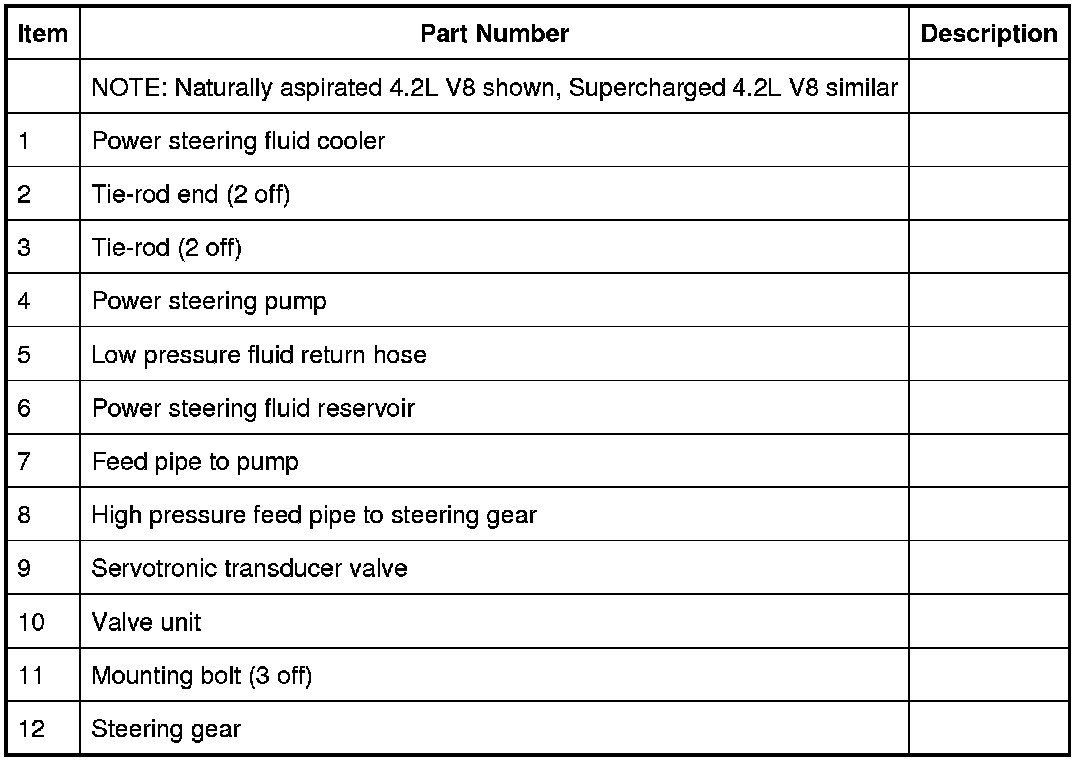

POWER STEERING - COMPONENT LOCATION 4.2L V8
