Cellular Phone: Service and Repair

Bluetooth Module

Removal
1 Disconnect the battery ground cable. For additional information, refer to Battery Disconnect and Connect Battery Disconnect and Connect
2 Remove the front seat.




3 Lift the carpet for access.

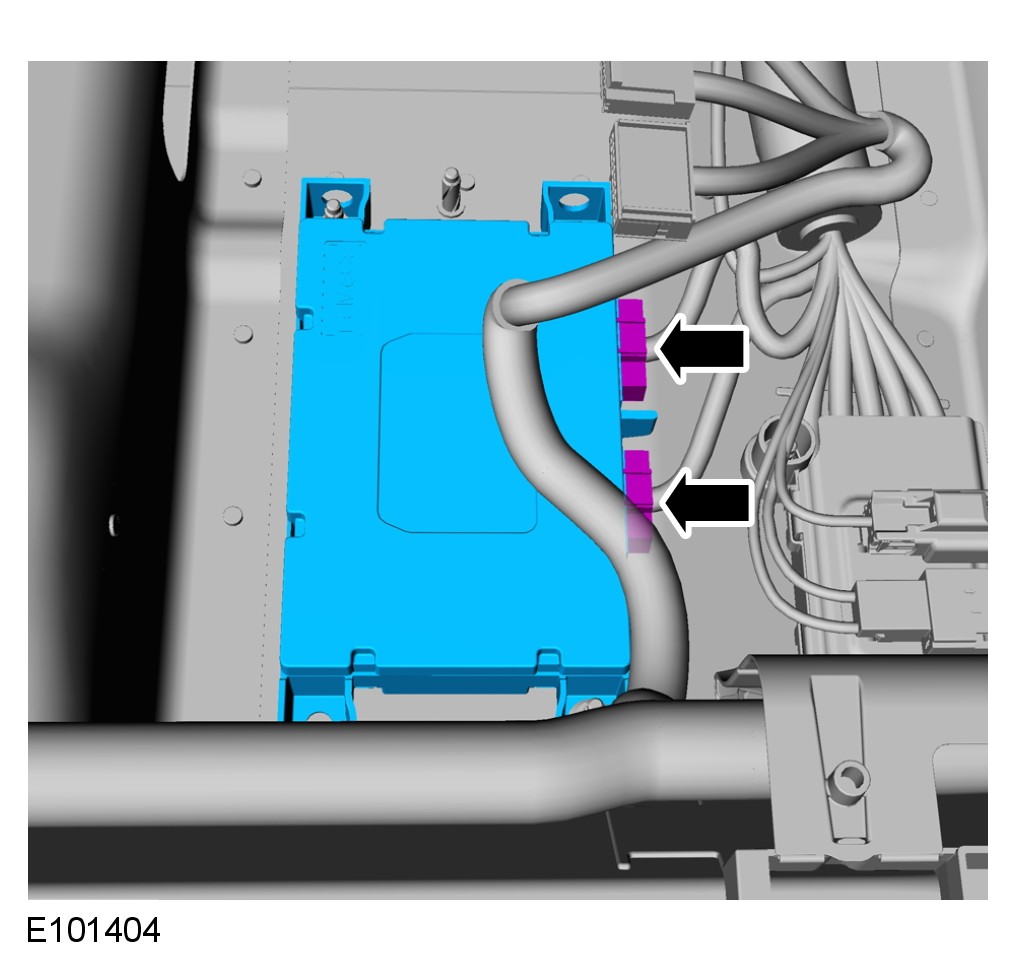

4 Disconnect the 2 electrical connectors.

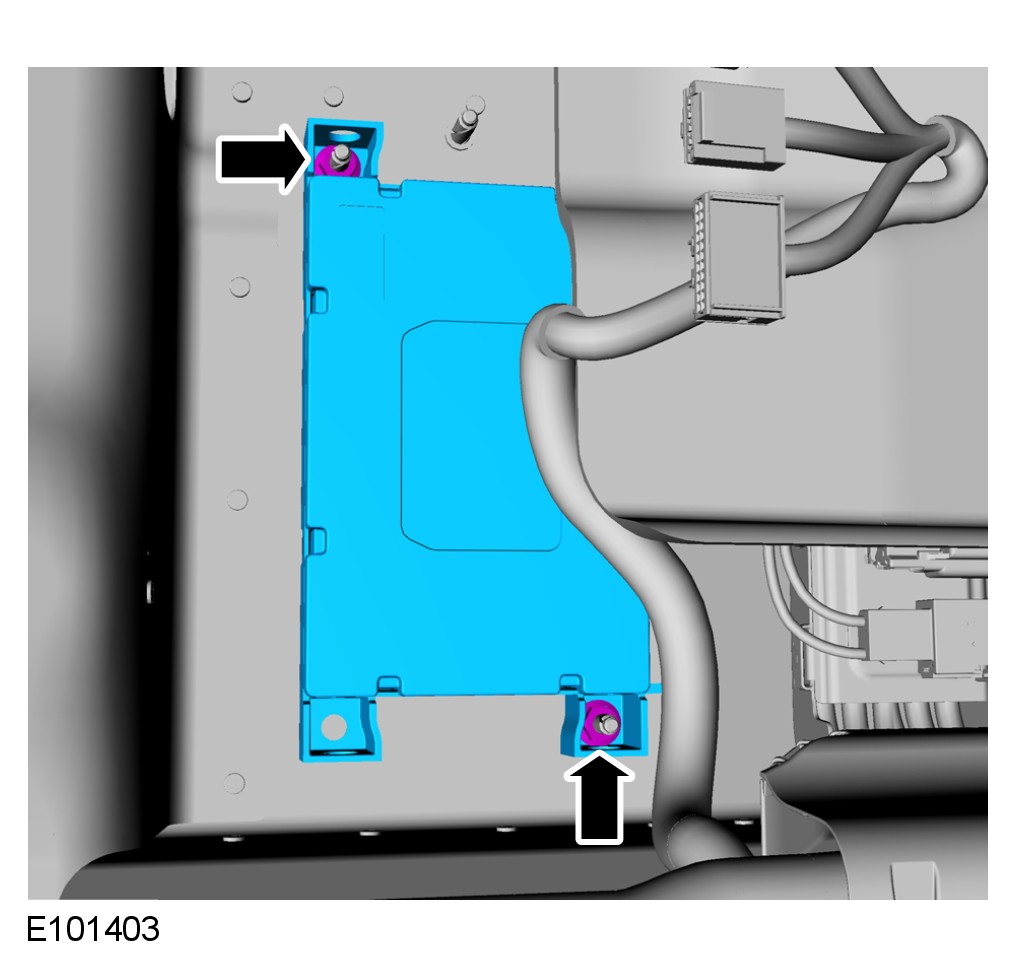

5 Remove the bluetooth module.

Installation





1 Install is the reverse of removal.
- Tighten to 10 Nm.
