Secondary Bulkhead Panel RH [3.0L/4.2L/2.7L Diesel]

Secondary Bulkhead Panel RH
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures
For additional information, refer to TAS Symbols Glossary
Removal

NOTE:
Removal steps in this procedure may contain installation details.

All vehicles
For additional information, refer to Cowl Vent Screen Service and Repair
For additional information, refer to Secondary Bulkhead Center Panel Secondary Bulkhead Center Panel

Torque to: 25 Nm

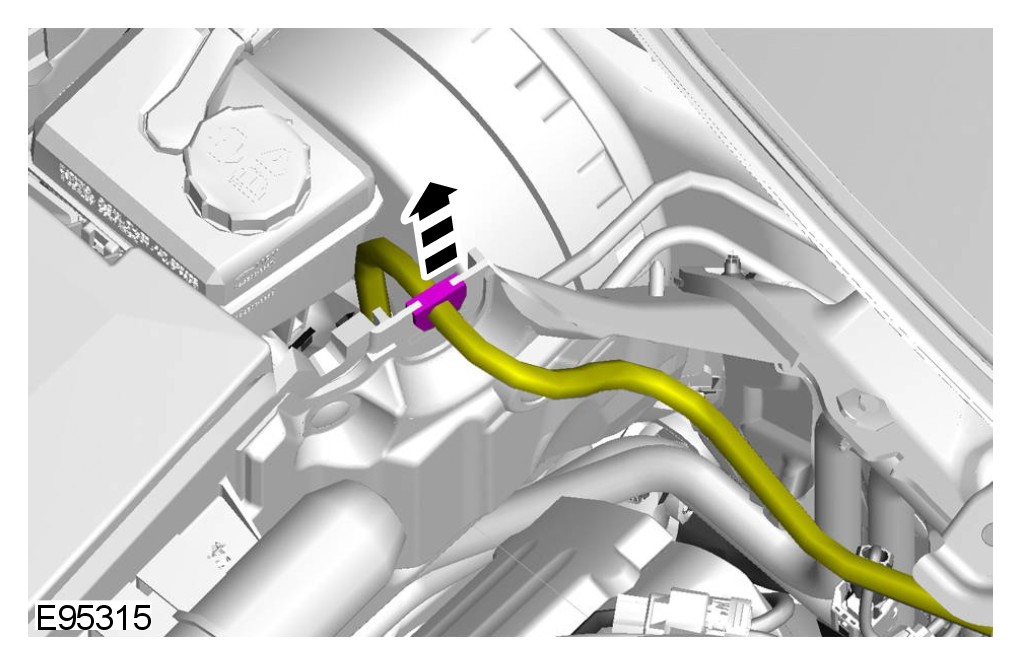

Vehicles with petrol engine

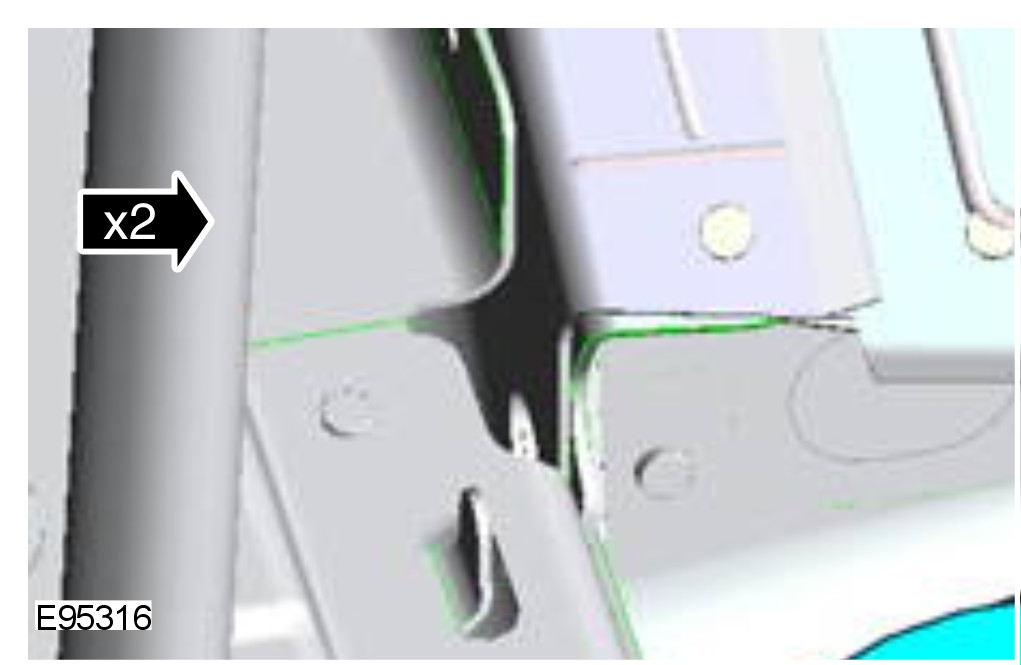

Right-hand drive vehicles

Left-hand drive vehicles

Vehicles with supercharger
For additional information, refer to Air Cleaner RH

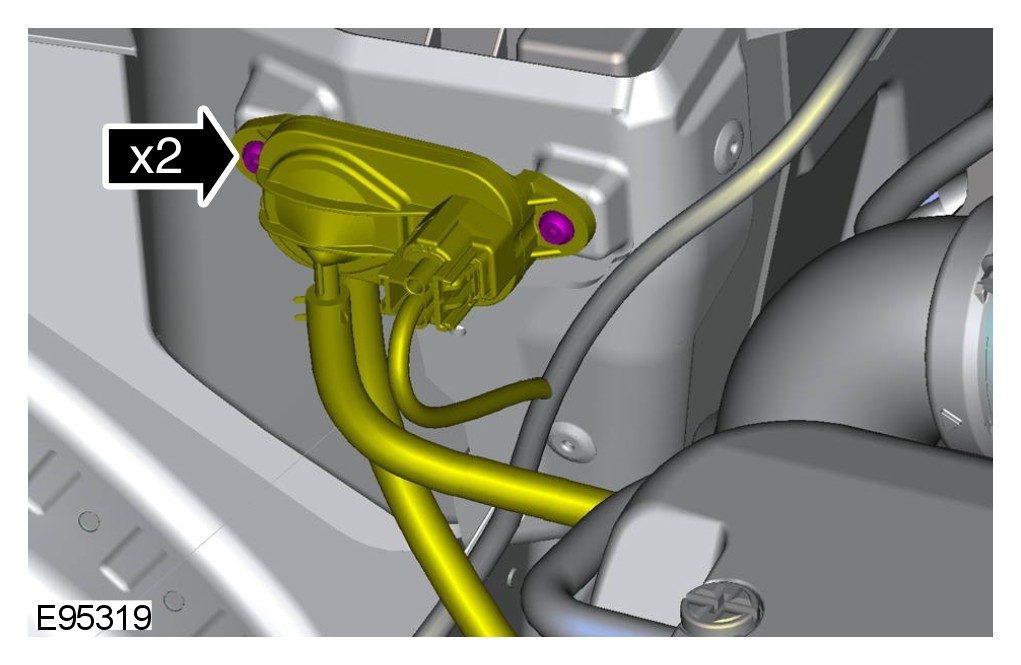

Vehicles with diesel engine

All vehicles

Installation
1 To install, reverse the removal procedure.
