Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2009
>>
XF (X250) V8-4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C3BP01B - C38-A
>>
C3CD01D
C3CD01D
C3CD01D

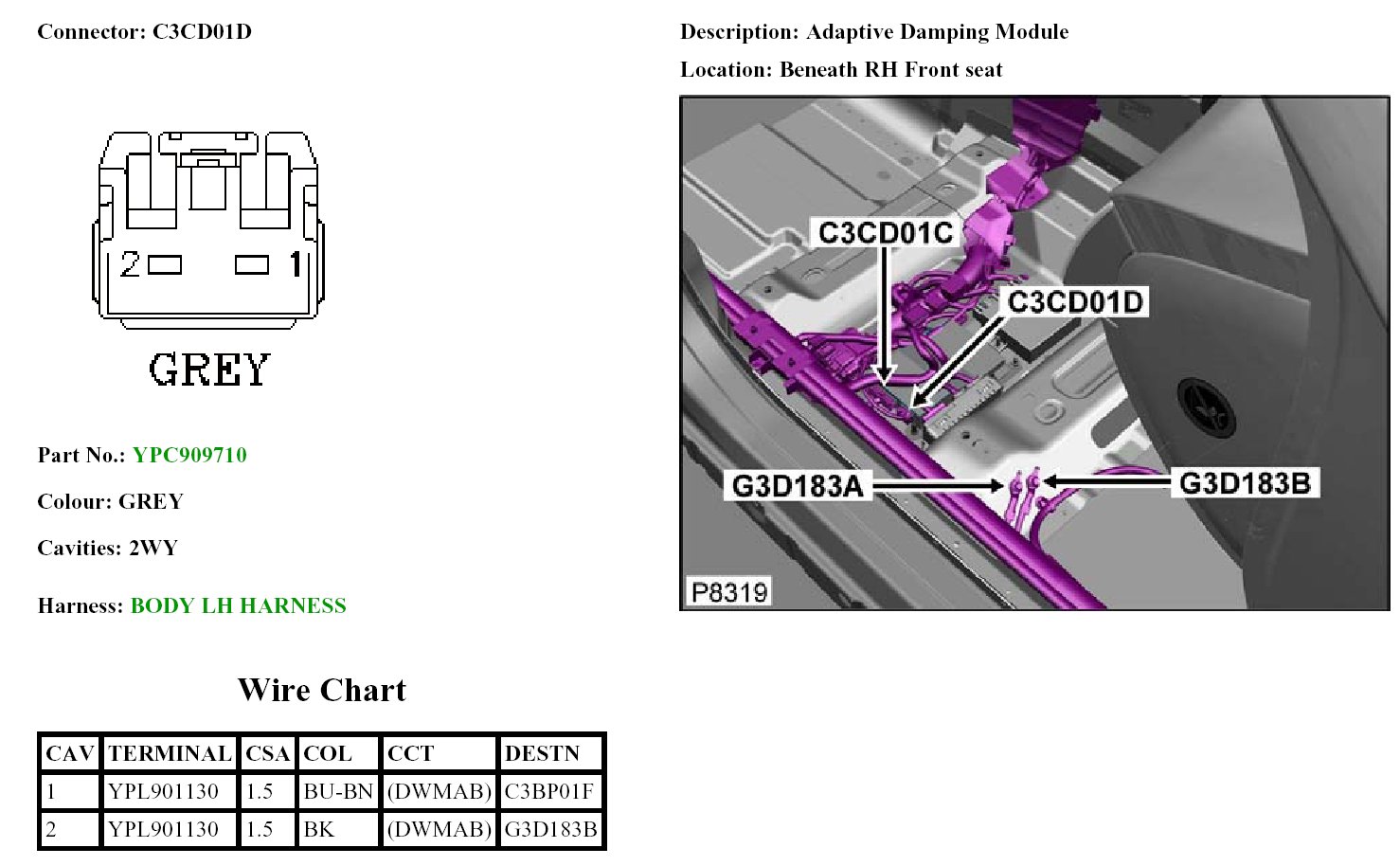

C3CD01D:
