Home >> Jaguar >> 2009 >> XF (X250) V8-4.2L >> Repair and Diagnosis >> Diagrams >> Connectors >> PI002 - PI311 >> PI002

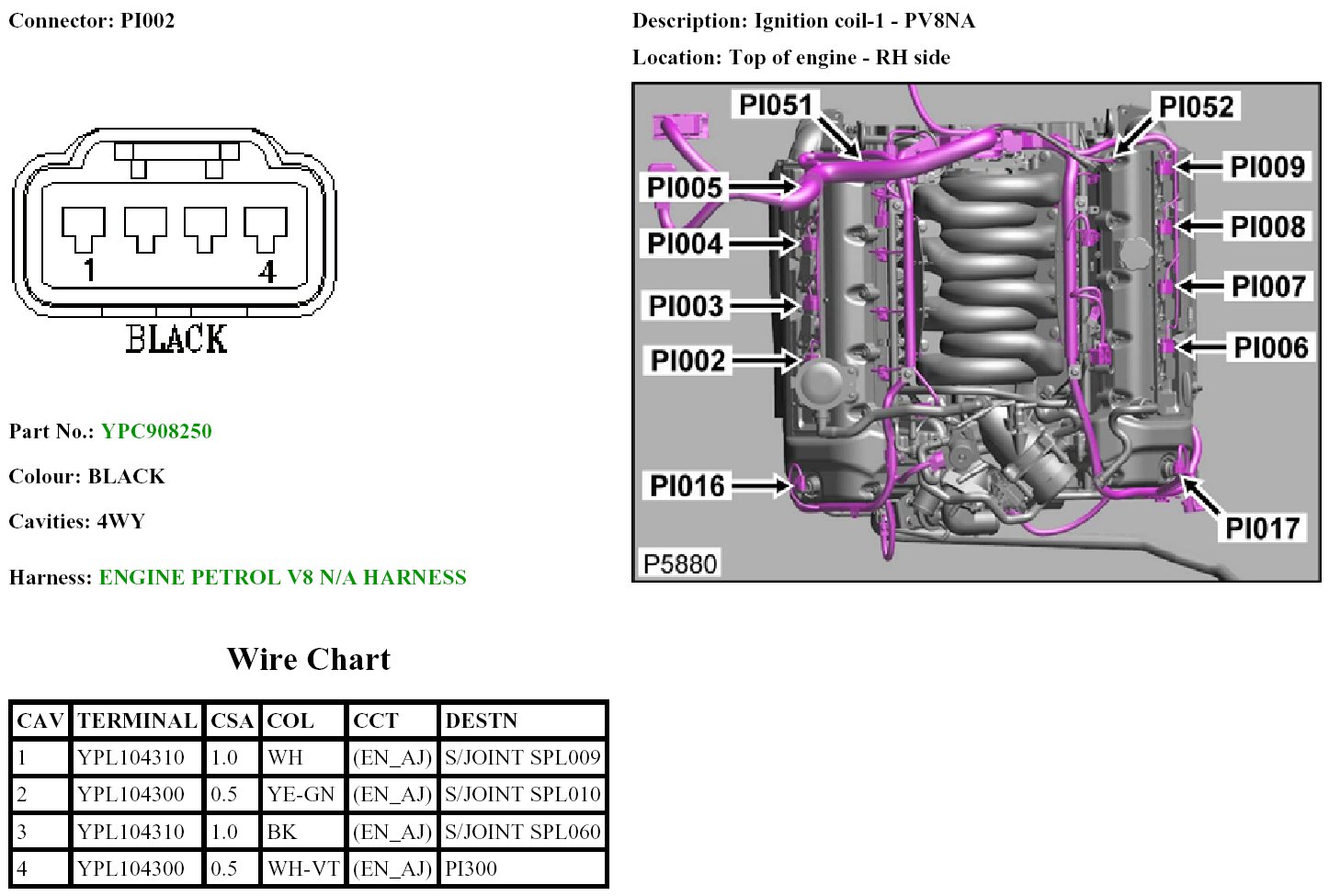

PI002



PI002 - PV8NA


PI002:
